Jasic JM-352S-WC 400V, 350Amps Water Cooled

  • Sale
  • £2,938.60
  • Regular price £4,198.00

Excludes VAT

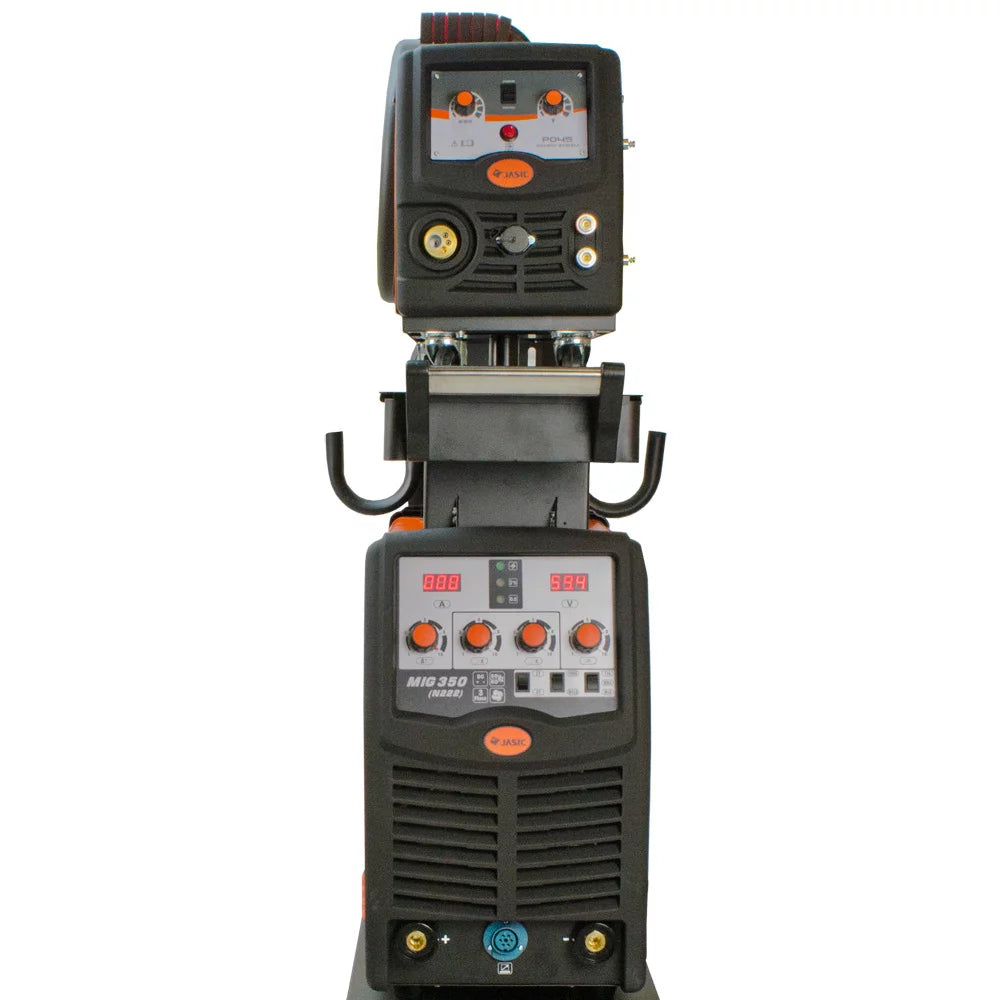

JM-352S 400V, 350Amps MIG350S Multi Process Separate 5M Interleads Water Cooled Package

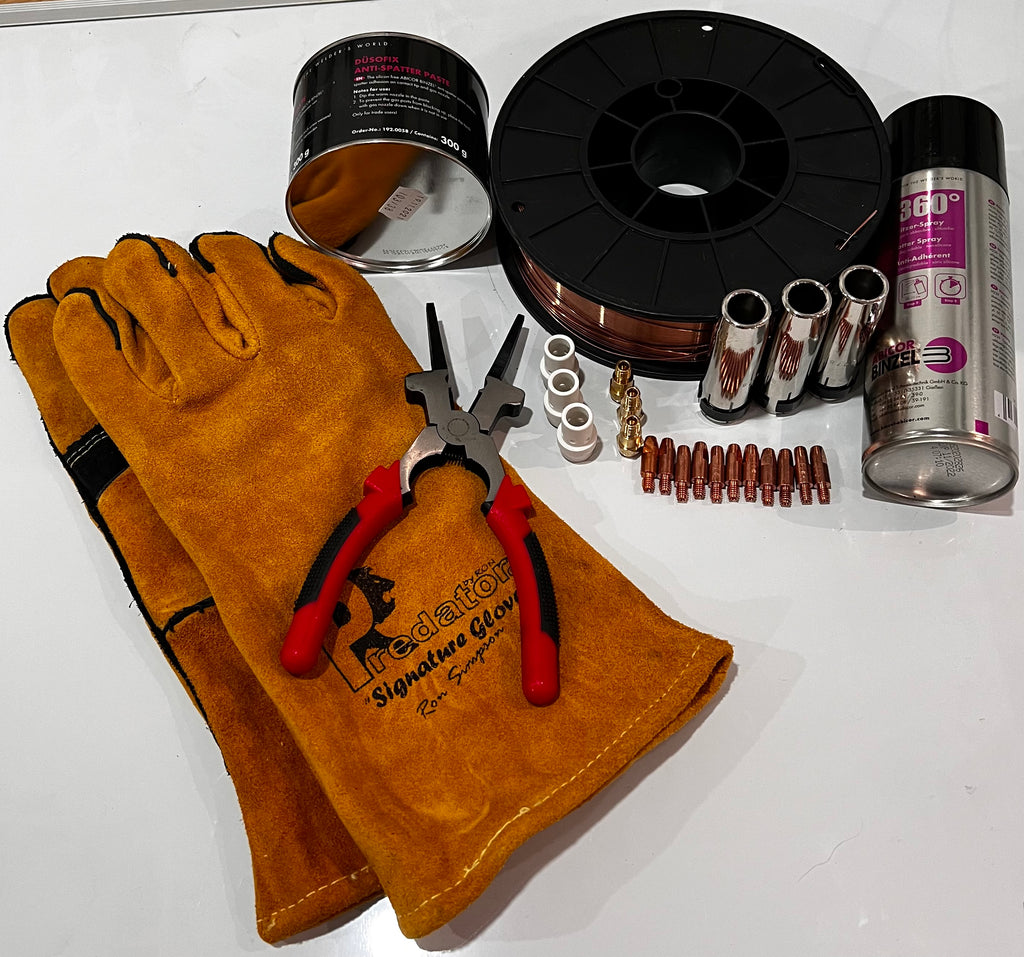

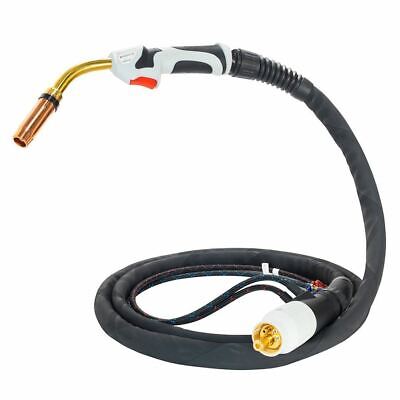

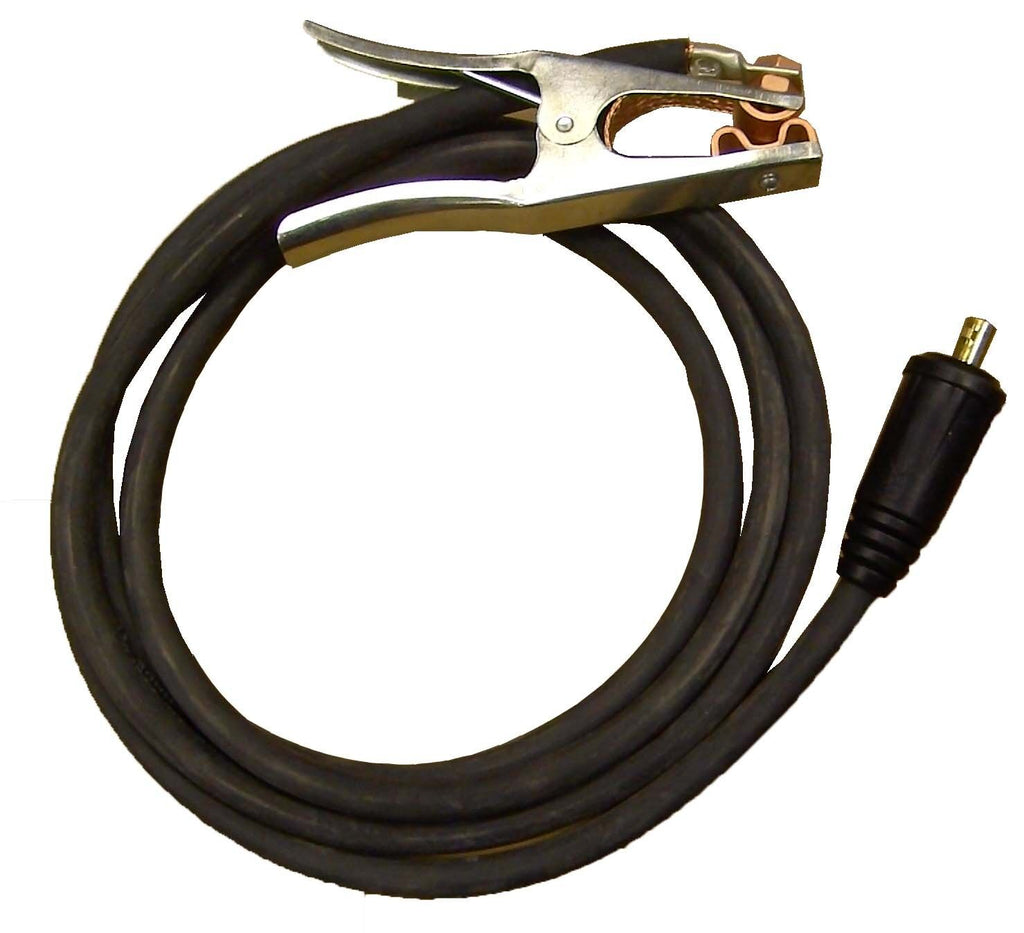

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers  16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin

Advanced control circuitry, rugged reliable performance

The Jasic MIG 350 Separate equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.

This high quality three-phase inverter welder delivers an impressive 350 amps at 40% duty cycle, making the MIG 350 an excellent choice for heavy duty industrial manufacturers.

Featuring a unique (welding dynamic characteristic control circuit) in MIG, provides a stable arc, low spatter, excellent weld appearance and high welding efficiency.

Technical Data Input Voltage AC 400V - 50/60 Hz Ieff (A) 13.2 Input Power (kVA) 15 Voltage Adjustment Range (V) 15 - 36 Current Range (A) MIG 50 - 350 MMA 20 - 350 Duty Cycle @ 40°C 350A @ 40% No-Load Voltage (V) 65 Wire Speed (m/min) 1 - 16 Efficiency (%) 85 Power Factor 0.93 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 1020 x 505 x 1460 Weight (Kg) 104

Key Features • IGBT MIG/MAG MMA inverter • Digital Amp & Voltmeter • High Duty Cycle • 4 roll wire feed unit • Advanced control circuitry • Suitable for 0.8, 1.0 and 1.2mm welding wire • Burn back control & wire inching • 2T/4T trigger function • Power & status LED’s • Gas check function • Variable inductance • Inverter trolley takes full size gas bottle

Brochures & Manuals

Sales Leaflet

Operator Manual

MIG Welding Guide

MIG Inverter Selection Guide
