ET-200P AC/DC 95-265V, 200Amps TIG200AC/DC Pulse PFC Package

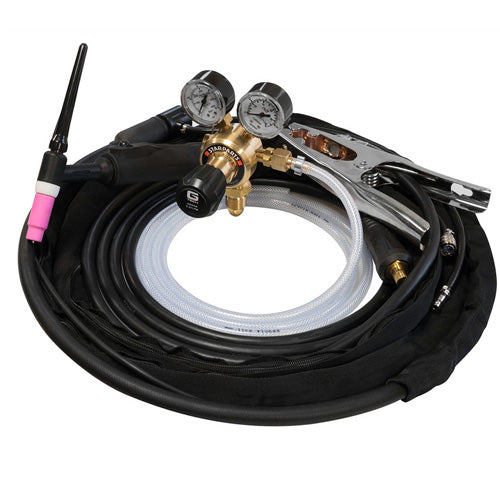

All TIG Packages incl.Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
Technical Data ET-200PACDC TIG 200P ACDC PFC Input voltage AC95-265V, 50/60 Hz AC 115V AC 230V No load voltage 65V TIG Rated input current 32.2A 21.1A Ieff 16.1A 10.6A Rated input power 3.5kVA 4.7kVA Current range DC: 5-160A AC: 20-160A DC: 5-200A AC: 20-200A Rated duty cycle @ 40ºC 25% MMA Rated input current 34.1A 22.7A Ieff 18.7A 12.4A Rated input power 3.9kVA 5.6kVA Current range 10-120A 10-160A Rated duty cycle @ 40ºC 30% Efficiency 80% Power factor 0.95 Idle state power <50W Protection class IP23S Insulation class H Dimensions LxWxH 490 x 165 x 341mm Weight 11.9Kg Recommended generator size 5kVA 7kVA
Key Features • Rugged, ergonomic design • ClearVision technology • Adaptable wide voltage range • HF stabilising technology • Dash-Arc • Smart Lift TIG • Full featured pulse TIG parameters • Multiple AC waveforms • Mixed waveform, mixed waveform frequency, mixed waveform duty cycle • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • Water cooled option available • ABAP: Active Balancing Air Passage • Smart gas for optimised shielding gas consumption • On demand fan • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection • TFT screen (optional)
