ZXWS-PC65 400V, 65Amps Plasma Cutter c/w Built in Compressor 30mm Cut Package

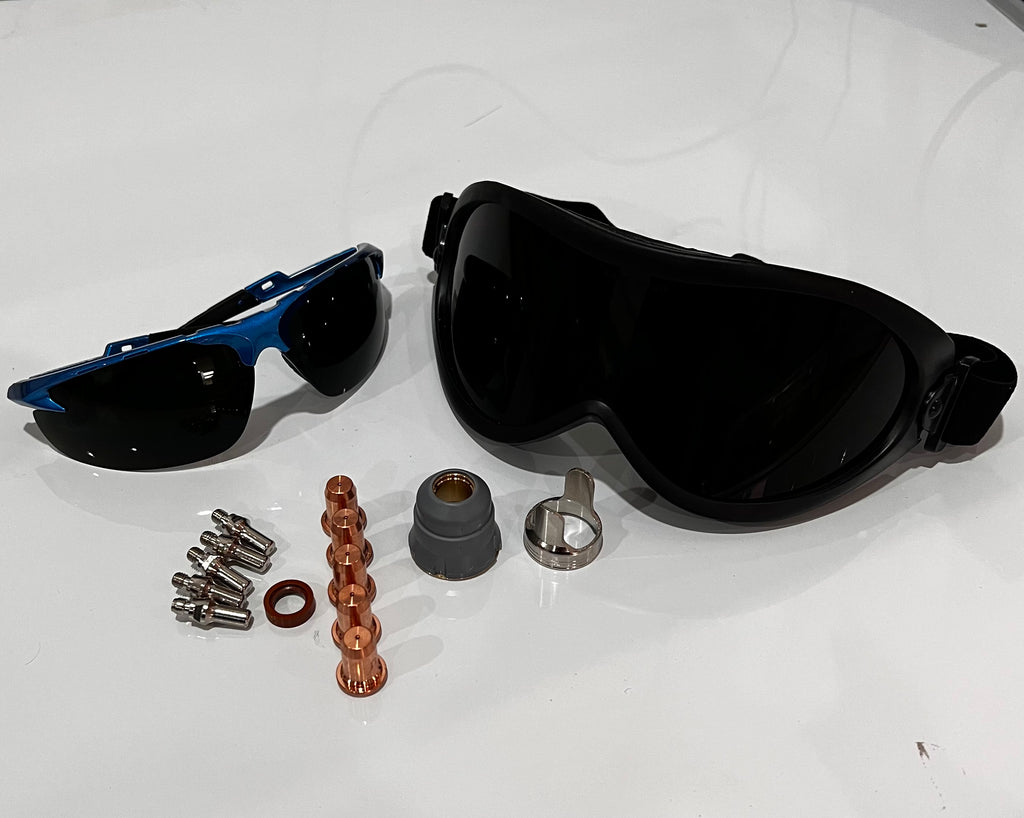

All Plasma Cutter PFC Packages incl.Plasma Torch, Earth Return, Torch Spares Kit (5 Electrodes, 5 x Cutting Tips, 1 x Gas Distributor, 1 x Nozzle Cap, 1 x Guide), Shade 5 Goggles and Spectacles, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin)

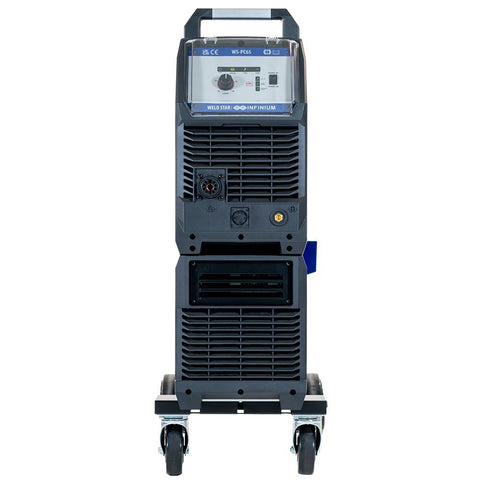

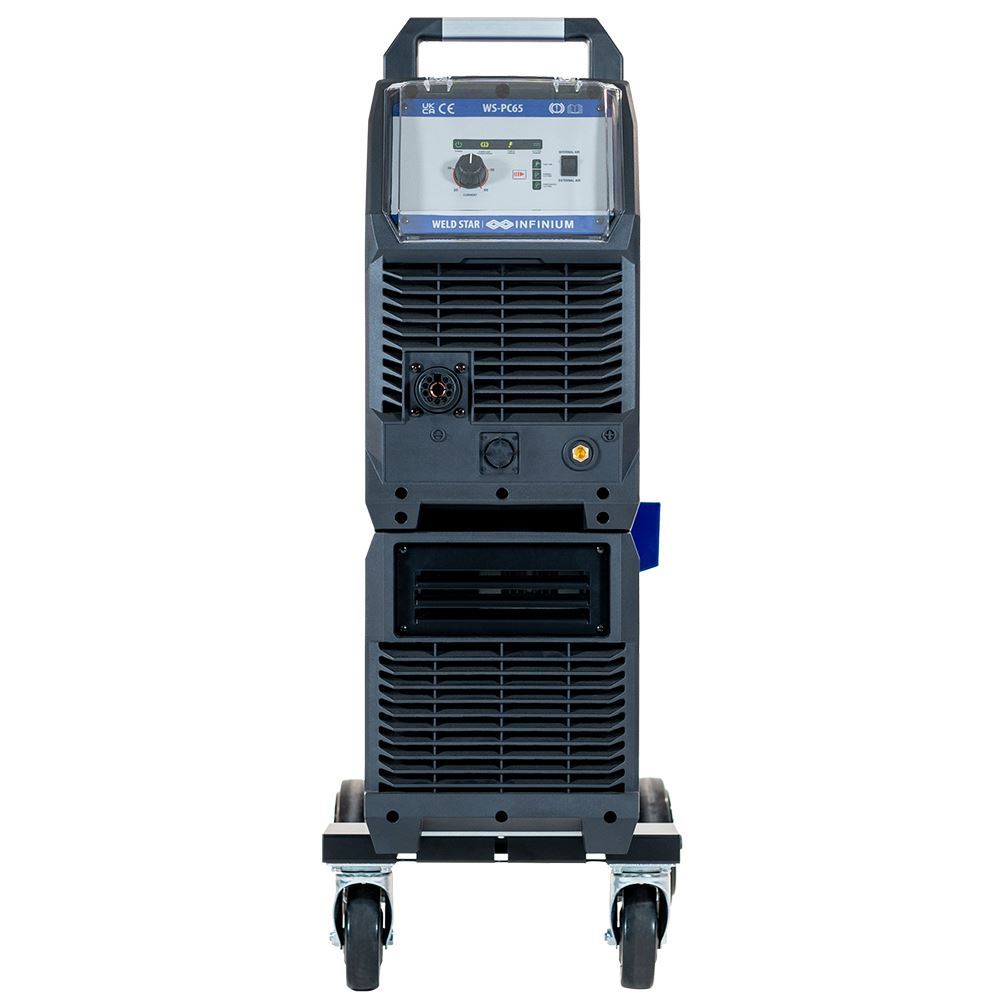

INFINIUM AIR PLASMA CUTTER 65 The Weld Star Infinium inverter plasma cutting machine range with built-in compressor has been designed as an integrated portable cutting machine which incorporate the most advanced IGBT inverter technology.
TECHNICAL DATA - WS-PC65 Input Voltage 400V AC ±15% 50/60Hz Ieff (A) 17.1 Input Power (kVA) 12.4 Cutting Current Range (A) 20 - 65 No-Load Voltage (V) 450 Duty Cycle @ 40°C 65A@90% 61A@100% Internal Air External Air Clean Cut (mm) 20 25 Severance Cut (mm) 25 30 Min/Max air pressure (external) 5.2 Bar (75psi) / 8 Bar (116psi) Minimum gas flow (external air) 7.1CFM 200 Ltr/min Efficiency (%) 85 Idle State Power (w) 22 Power Factor 0.99 Protection/Insulation Class IP23S/H Dimensions (LxWxH mm) Without Trolley: 790 x 245 x 610 With Trolley: 930 x 330 x 775 Weight (Kg) 56

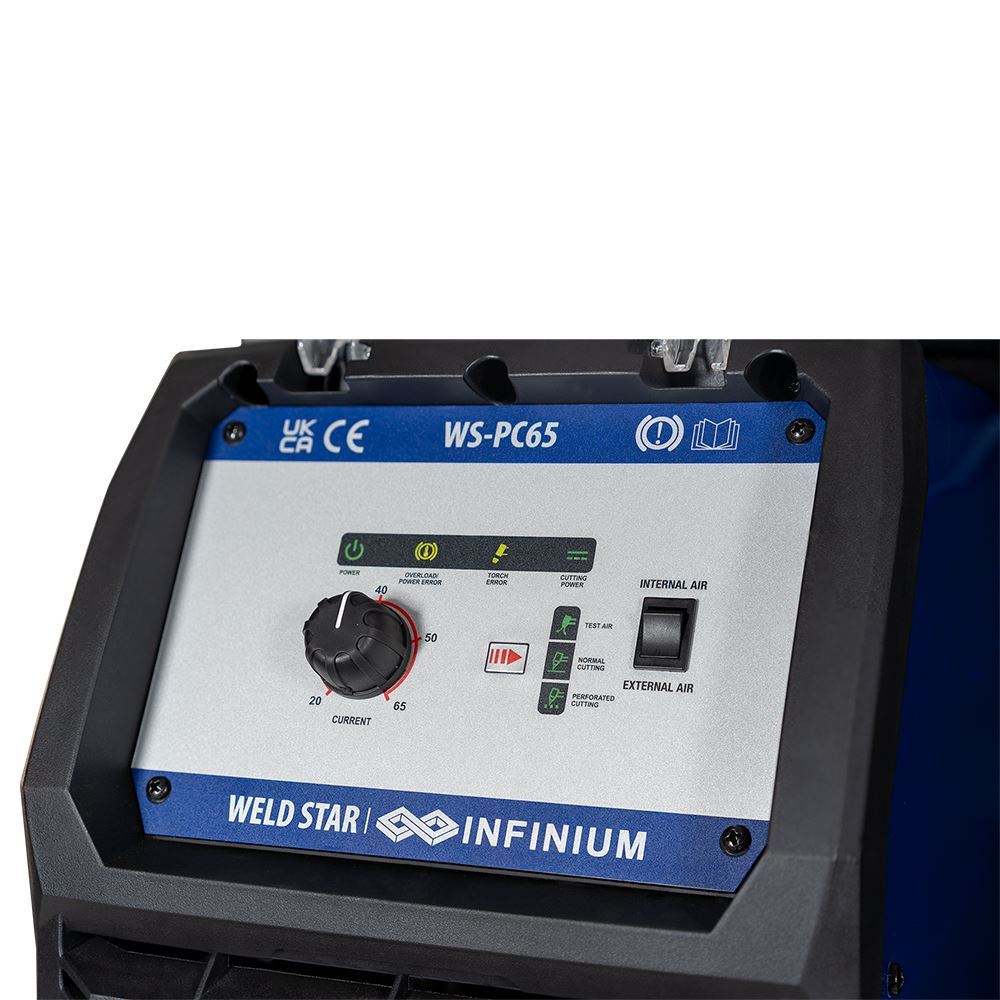

KEY FEATURES • The PC65 plasma cutting machine offers excellent operator flexibility with a built in air compressor while mounted on a trolley for easier movement. • Advanced, high efficiency plasma systems that offer flexible portability along with smooth and precise cutting characteristics that is ideal when cutting steel, stainless, copper, cast iron as well as aluminium. • The Weld Star Infinium plasma range offers the flexibility of switching between the built in compressor or using your own workshop supplied compressed air. • Clean cut of 25mm and a severance cut of 35mm based on mild steel using workshop compressed air • Auto pilot restart allows for faster restarting of the pilot arc which allows for uninterrupted cutting of grid or perforated type material. • Plasma cutting speeds can be up to 1.8 times faster when compared with oxyacetylene cutting. • Advanced non HF pilot arc ignition via the supplied plasma cutting torch. • The trolley offers excellent portability when working or maneuvering on site or in the workshop. • User friendly operator control panels. • Generator friendly (with built-in AVR). • Optional circle cutting guide kit available. • 5 year warranty
