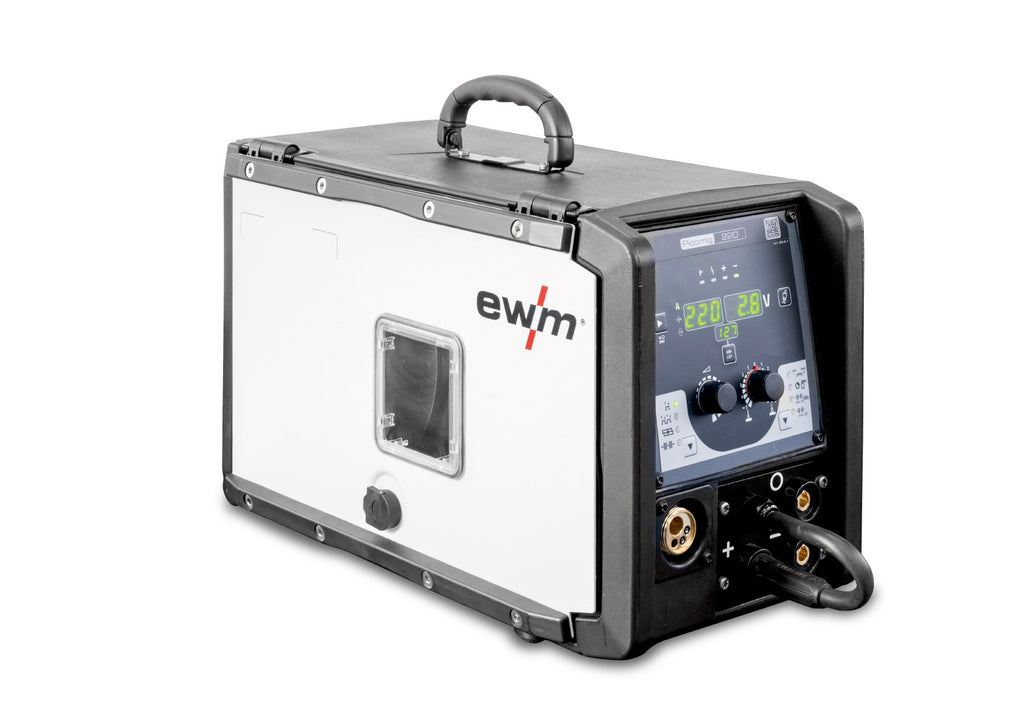

EWM Picomig 220 Puls TKG 230V, 220Amps

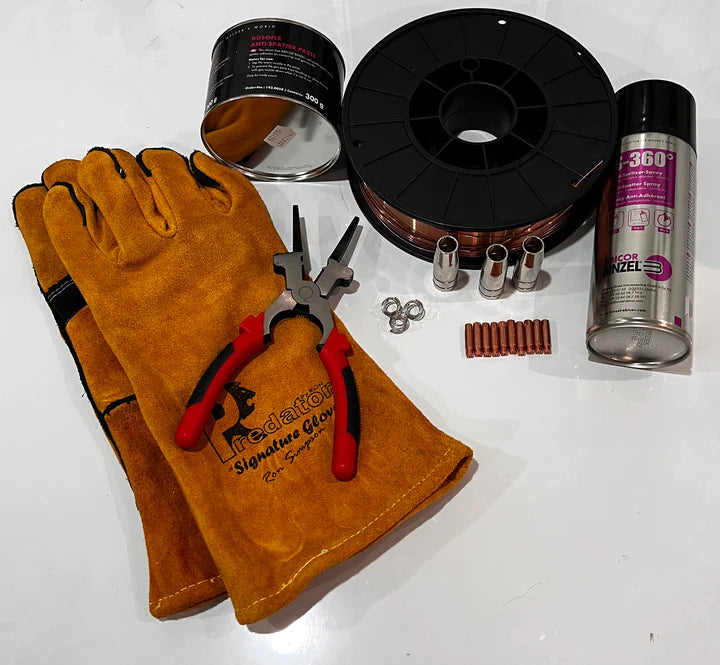

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
- Multiprocess MIG/MAG pulse welding machine, compact, portable, Euro torch connector, with PFC module, for 5 kg D200 spools, in a set

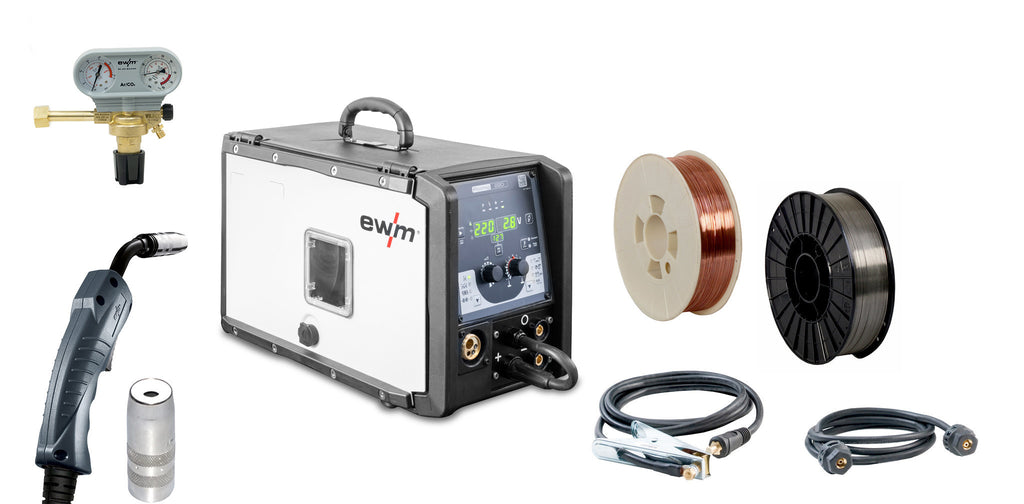

- Set comprising:
- Welding machine, MT221G welding torch, flux cored wire spool (FCW 71T SELFSHIELD 2 kg, Ø 0.9 mm), steel wire spool (SW 70S G3 2 kg, Ø 0.8 mm), workpiece lead, gas hose, pressure regulator and flux cored nozzle
- High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology
- Welding procedures and functions
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
- Your benefits
- Portable, compact
- No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
- Robust casing suitable for construction site use
- High open circuit voltage for excellent ignition characteristics
- 4-roll drive
- Energy-saving thanks to high efficiency and standby function
- Easy, tool-free change of welding polarity
- Insulated wire space
- 3.5 m mains supply lead with 16 A shock-proof plug
- Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

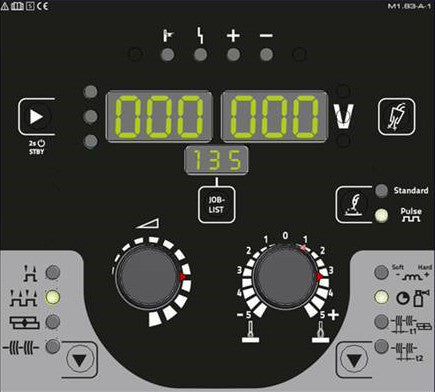

- Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
-
Operation mode One-knob operation Welding process MIG/MAG MIG/MAG pulse TIG MMA Operating modes Non-latched Latched Resistance spot welding Interval Parameters in display Welding current Wire feed speed Plate thickness JOB number Error code Polarity display Number of JOBs 50 Functions Wire burn-back
| Version | Picomig 220 puls TKG |
| Setting range for welding current | 5 A - 220 A |
| Duty cycle 40 °C | 220 A / 30 % |
| 170 A / 60 % | |
| 150 A / 100 % | |
| Open circuit voltage | 70 V |
| Mains tolerances (ex works) | -40 % up to +15 % |
| Mains frequency | 50 Hz / 60 Hz |
| Recommended generator power | 8.8 kVA |
| Power consumption Pi | 15 W |
| Factory-installed roll equipment | 0.8 + 1.0 mm / Steel |
| Spool diameter | D200 |
| Torch connection | Euro torch connector |
| Protection classification | IP23 |
| Test mark | |
| EMC class | A |
| Dimensions (L x B x H) | 559 mm x 276 mm x 340 mm |
| 22 inch x 10.9 inch x 13.4 inch | |
| Weight | 18 kg / 39.7 lbs |
| Standards | IEC 60974-1, -5 and -10 CL.A |
