EWM

EWM Picomig 220 Synergic TKG 230V, 220Amps

  • Sale
  • £2,035.46
  • Regular price £2,907.80

Excludes VAT



EWM Picomig 220 Synergic TKG 230V, 220Amps

The price shown includes the following components:

  • Multiprocess MIG/MAG welding machine, compact, portable, Euro torch connector, with PFC module, for 5 kg D200 spools

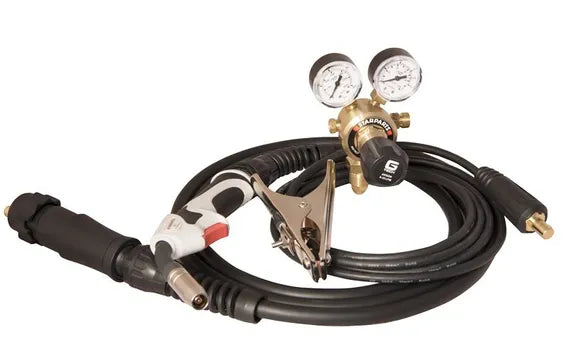

  • MIG/MAG welding torch, gas-cooled, 4 m
  • Workpiece lead with clamp, 230 A / 60 %, 25 mm²
  • Gas hose, 2 m
  • Pressure regulator with manometer, 30 l

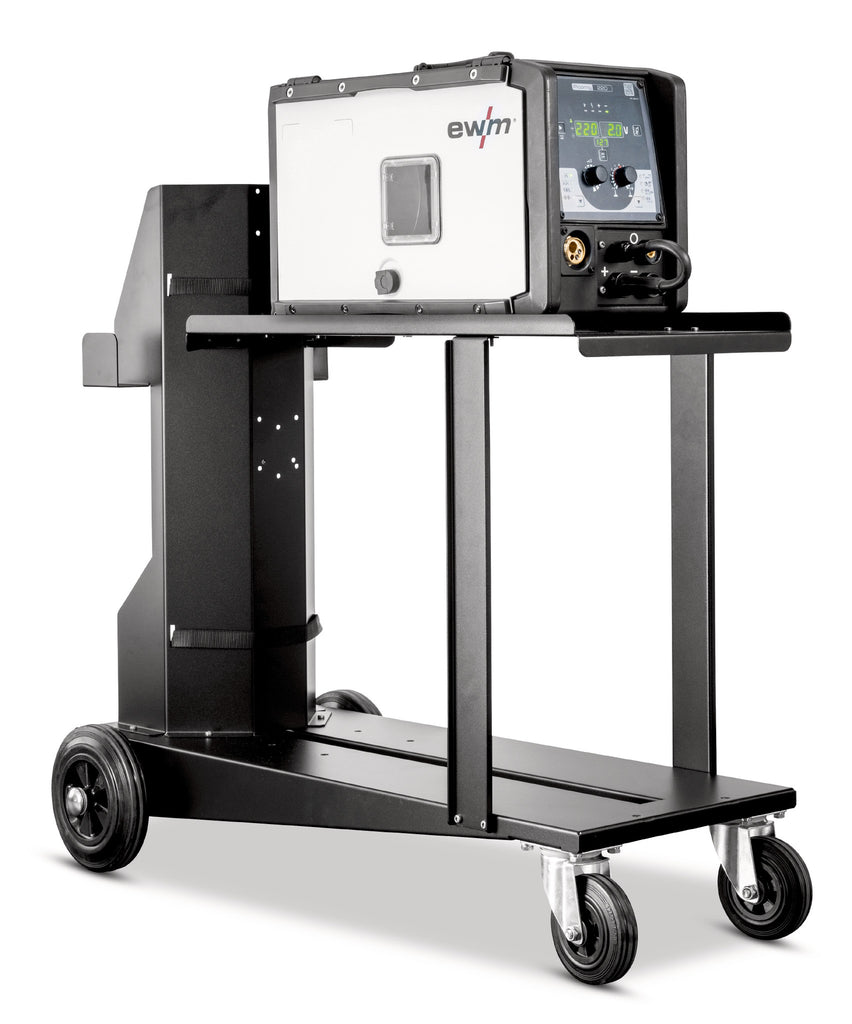

  • Transport cart (four wheels) for moving a power source, cooling unit or a tool box and one shielding gas cylinder,

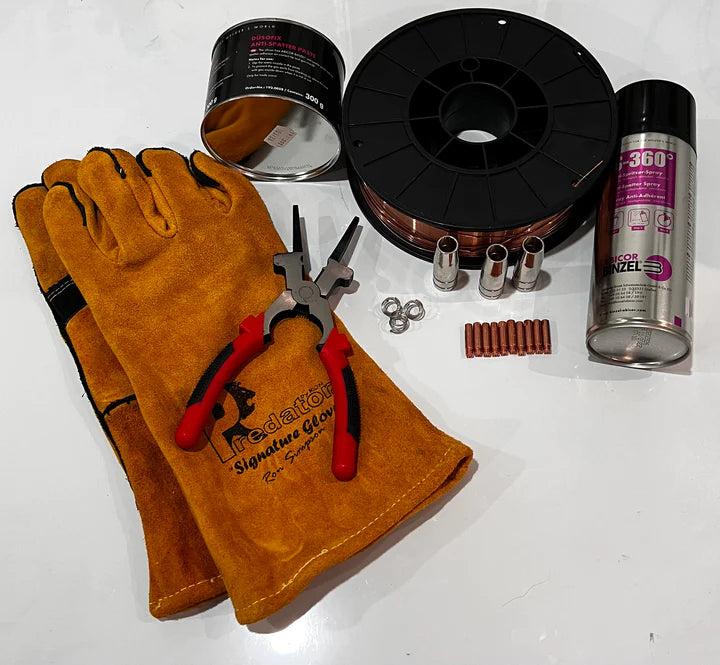

  • All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers  16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
  • Multiprocess MIG/MAG welding machine, compact, portable, Euro torch connector, with PFC module, for 5 kg D200 spools
  • High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology
  • Welding procedures and functions
  • GMAW standard welding
  • Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
  • MMA welding and TIG lift arc welding
  • Perfect for welding self-shielding flux cored wires
  • Infinitely adjustable arc dynamics (choke effect)
  • Non-latched/latched operation
  • Interval welding
  • Adjustable gas pre- and post-flow time
  • Your benefits
  • Portable, compact
  • No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
  • Robust casing suitable for construction site use
  • High open circuit voltage for excellent ignition characteristics
  • 4-roll drive
  • Energy-saving thanks to high efficiency and standby function
  • Easy, tool-free change of welding polarity
  • Insulated wire space
  • 3.5 m mains supply lead with 16 A shock-proof plug
  • Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
  • Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
  •

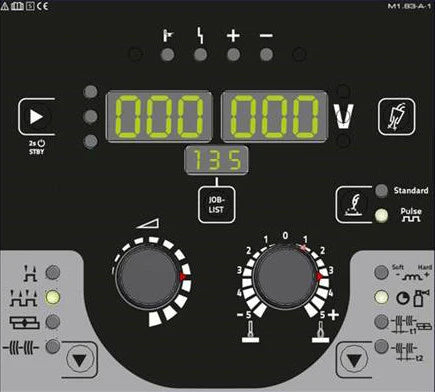

    • Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
    • GMAW standard welding
    • Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
    • MMA welding and TIG lift arc welding
    • Perfect for welding self-shielding flux cored wires
    • Infinitely adjustable arc dynamics (choke effect)
    • Non-latched/latched operation
    • Interval welding
    • Adjustable gas pre- and post-flow time
    Operation mode One-knob operation
    Welding process MIG/MAG
    TIG
    MMA
    Operating modes Non-latched
    Latched
    Resistance spot welding
    Interval
    Parameters in display Welding current
    Wire feed speed
    Plate thickness
    JOB number
    Error code
    Polarity display
    Number of JOBs 35
    Functions Wire burn-back
    Version Picomig 220 Synergic TKG
    Setting range for welding current 5 A - 220 A
    Duty cycle 40 °C 220 A / 30 %
    170 A / 60 %
    150 A / 100 %
    Open circuit voltage 70 V
    Mains tolerances (ex works) -40 % up to +15 %
    Mains frequency 50 Hz / 60 Hz
    Recommended generator power 8.8 kVA
    Power consumption Pi 15 W
    Factory-installed roll equipment 0.8 + 1.0 mm / Steel
    Spool diameter D200
    Torch connection Euro torch connector
    Protection classification IP23
    Test mark
    EMC class A
    Dimensions (L x B x H) 559 mm x 276 mm x 340 mm
    22 inch x 10.9 inch x 13.4 inch
    Weight 18 kg / 39.7 lbs
    Standards IEC 60974-1, -5 and -10 CL.A
