JM-352S 400V, 350Amps MIG350S Multi Process Separate 5M Interleads Package

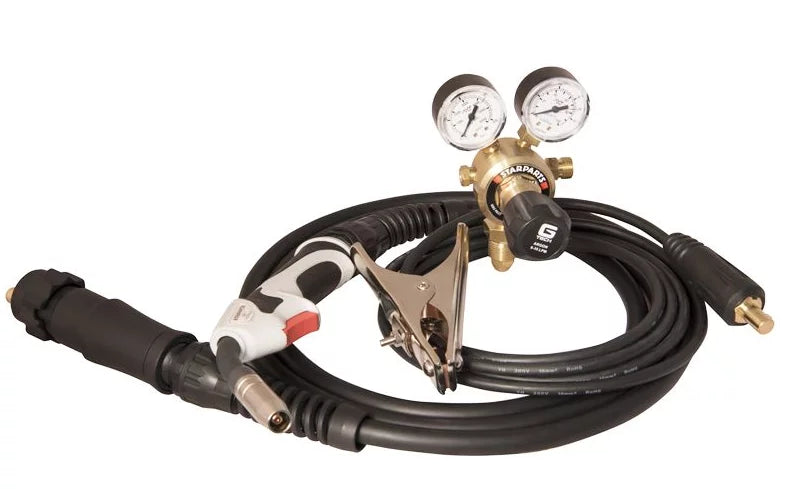

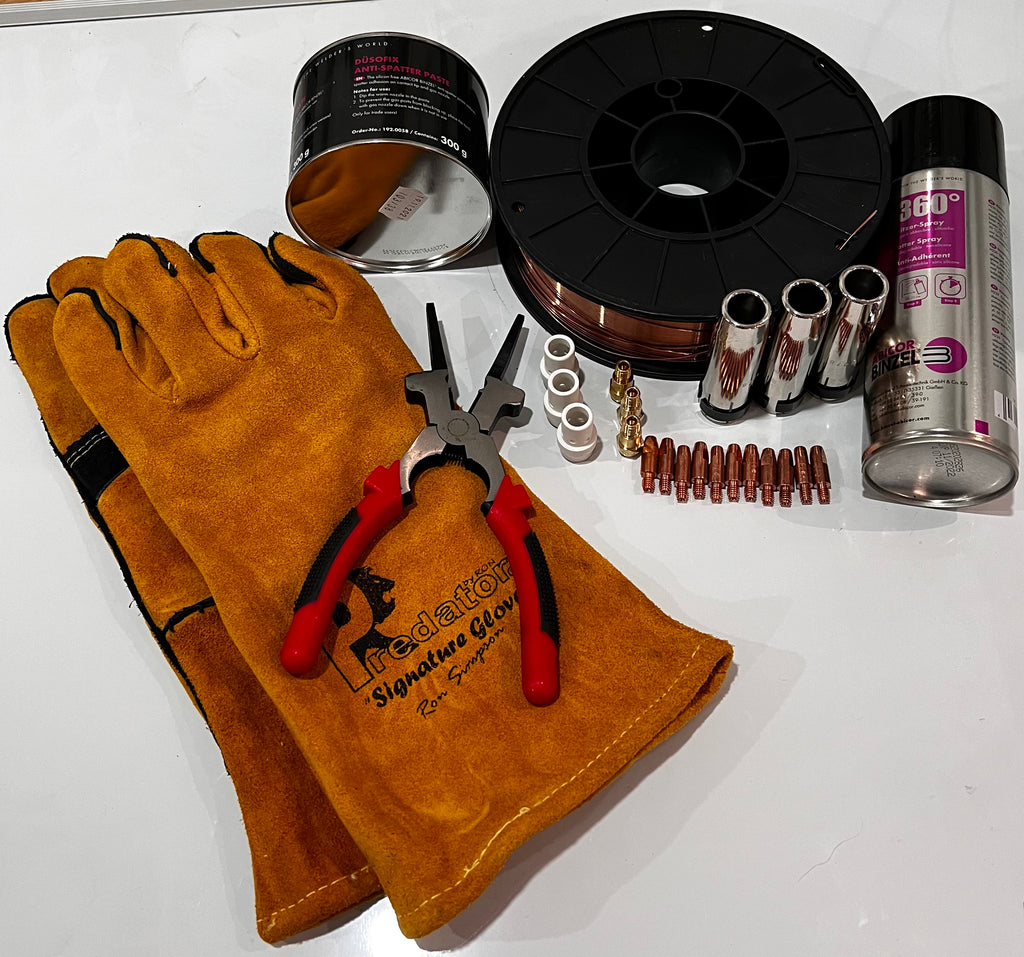

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
Advanced control circuitry, rugged reliable performance

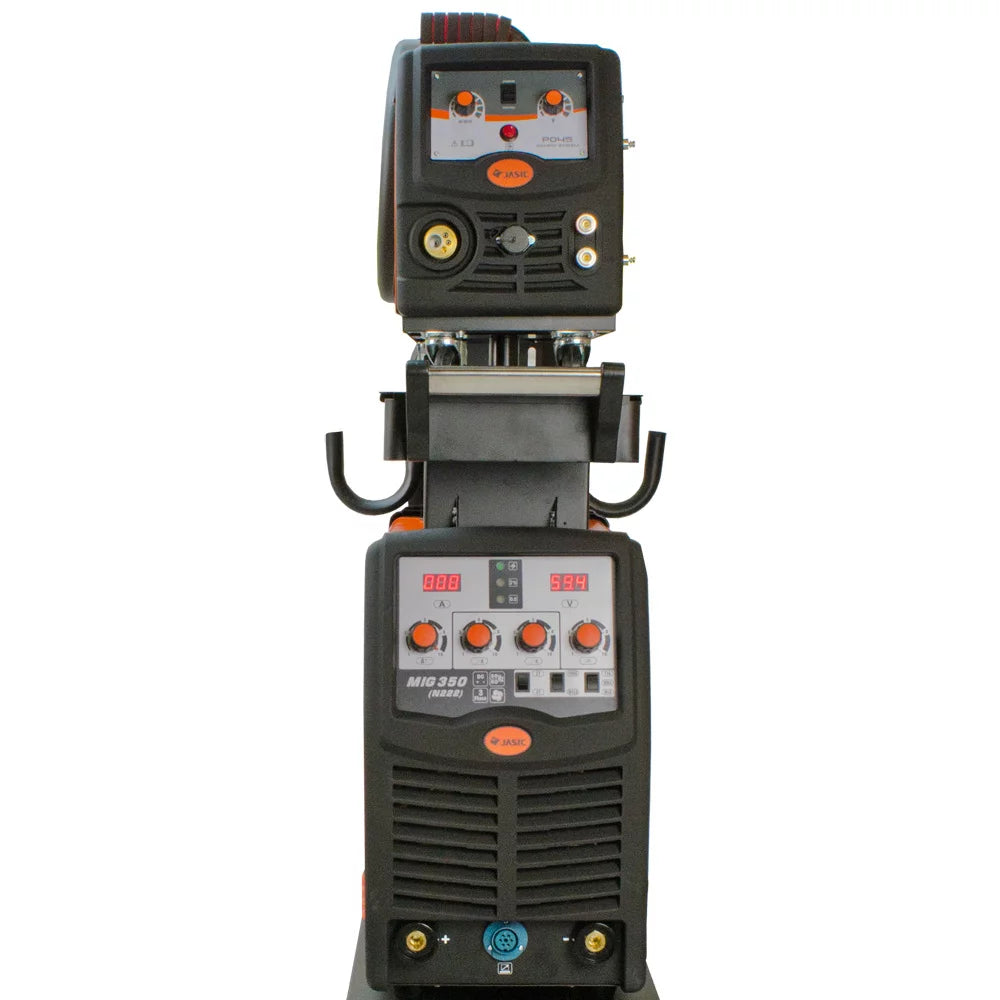

The Jasic MIG 350 Separate equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This high quality three-phase inverter welder delivers an impressive 350 amps at 40% duty cycle, making the MIG 350 an excellent choice for heavy duty industrial manufacturers.
Featuring a unique (welding dynamic characteristic control circuit) in MIG, provides a stable arc, low spatter, excellent weld appearance and high welding efficiency.
Technical Data Input Voltage AC 400V - 50/60 Hz Ieff (A) 13.2 Input Power (kVA) 15 Voltage Adjustment Range (V) 15 - 36 Current Range (A) MIG 50 - 350 MMA 20 - 350 Duty Cycle @ 40°C 350A @ 40% No-Load Voltage (V) 65 Wire Speed (m/min) 1 - 16 Efficiency (%) 85 Power Factor 0.93 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 1020 x 505 x 1460 Weight (Kg) 104
Key Features • IGBT MIG/MAG MMA inverter • Digital Amp & Voltmeter • High Duty Cycle • 4 roll wire feed unit • Advanced control circuitry • Suitable for 0.8, 1.0 and 1.2mm welding wire • Burn back control & wire inching • 2T/4T trigger function • Power & status LED’s • Gas check function • Variable inductance • Inverter trolley takes full size gas bottle
