MOSA ArcStar GW5-200 KBM 110/230V Petrol 200 Amps 35.23200K

  • Sale
  • £2,177.00
  • Regular price £3,110.00

Excludes VAT

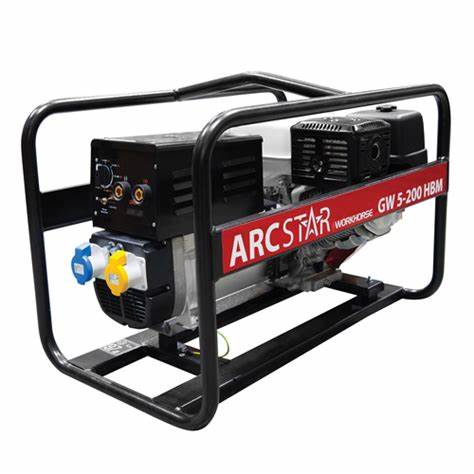

ArcStar GW5-200 KBM Petrol Welder Generator 200 Amps

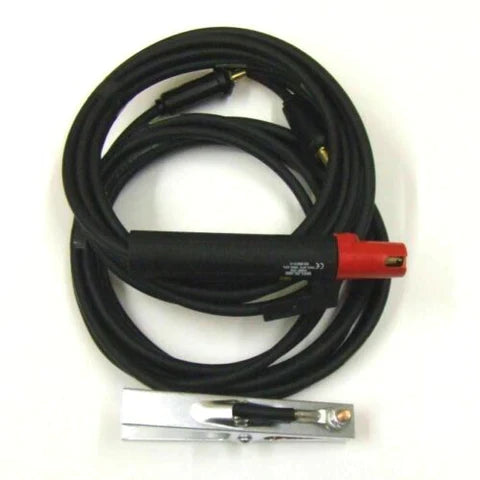

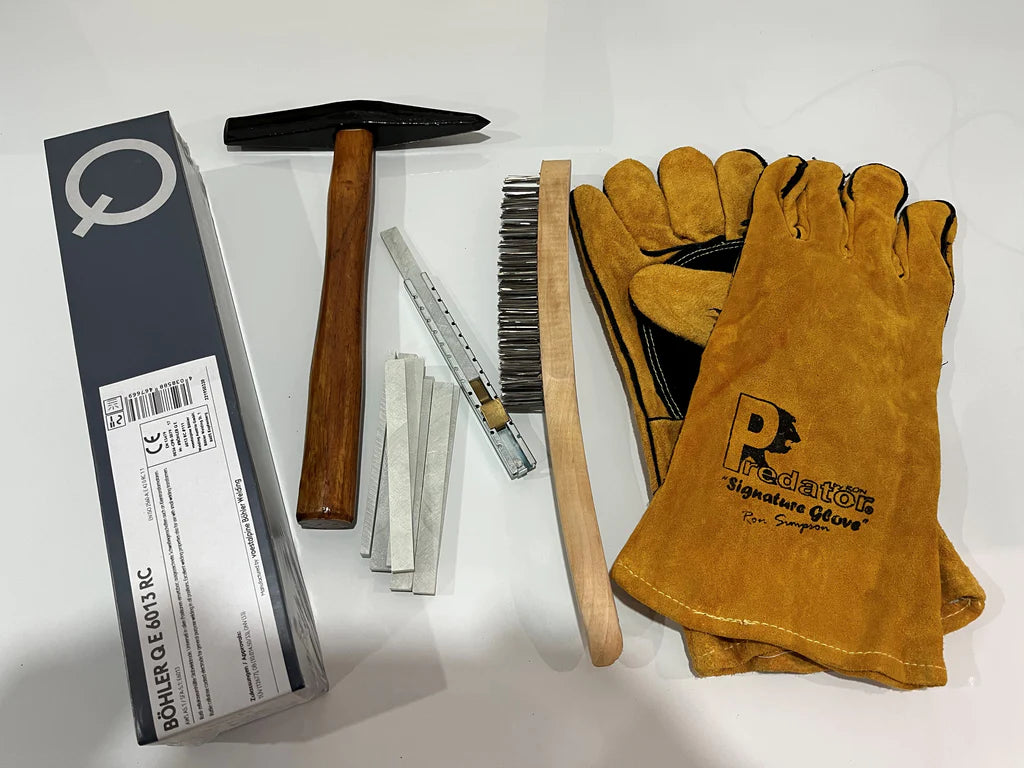

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.

  • 4500W 230V | 2250W 110V
  • Welding Output 200 Amps
  • Petrol, Air Cooled Engine

    The ArcStar KBM Petrol Welder Generator is the perfect low cost welder generator for mobile welders, great for working from a van or in a field, such as in on-the-go site-work or agricultural repairs. Featuring a modern, robust design, this generator is built with a Kohler CH440 (Stage 5) 4-Stoke / Air cooled Petrol engine with a 6.1 litre capacity.

    With 3000rpm, this generator is able to deliver 11.1HP / 8.2kW (Stand-by) of output power. Fitted with two 16 amp plugs in 110V & 230V for running a variety of power tools, such as angle grinders. Also able to run lamps and other on-site lighting while in use.

    The ArcStar GW5-200 KBM Petrol Welder Generator is designed for MMA welding (Lead set NOT included), with a duty cycle of 170A @ 60% and an adjustable amperage via a switch and potentiometer dial with a range of 40A – 200A. Built with din sockets to plug your welding leads directly into the machine without the need for an external machine.

  • Features:

    • Amperage Range: 40 – 200A
    • Duty Cycle: 170A @ 60%
    • Output Voltage / Power: 4500W 230V – 2250W 110V
    • Plugs: 1 x 16A 230V & 1 X 16A110V
    • Switched amperage
    • Engine: Kohler CH440 petrol
    • Weight: 99 Kg


    • Model: Kohler CH440 (Stage V)
    • Type/Cooling system: Petrol OHV 4-stroke/Air
    • Cylinders/displacement: 1/389 cm3
    • Net power (Stand-by): 8.2 kW (11.1 HP)
    • Power: 3000rpm
    • Fuel consumption (welding 60%): 2.1 l/h
    • Engine oil capacity: 1.1 litres
    • Starter: Recoil

    General Specifications:

    • Fuel tank capacity: 6.1 litres
    • Running time (Welding 60%): 3.5 hours
    • Protection rating: IP 23
    • Dimensions (LxWxH) : 870 x 525 x 613
    • Weight (dry): 97 Kg
    • Acoustic power: LwA (LpA pression) 97 dB(A) (71 dB(A) @ 7m)
    • Datasheet
