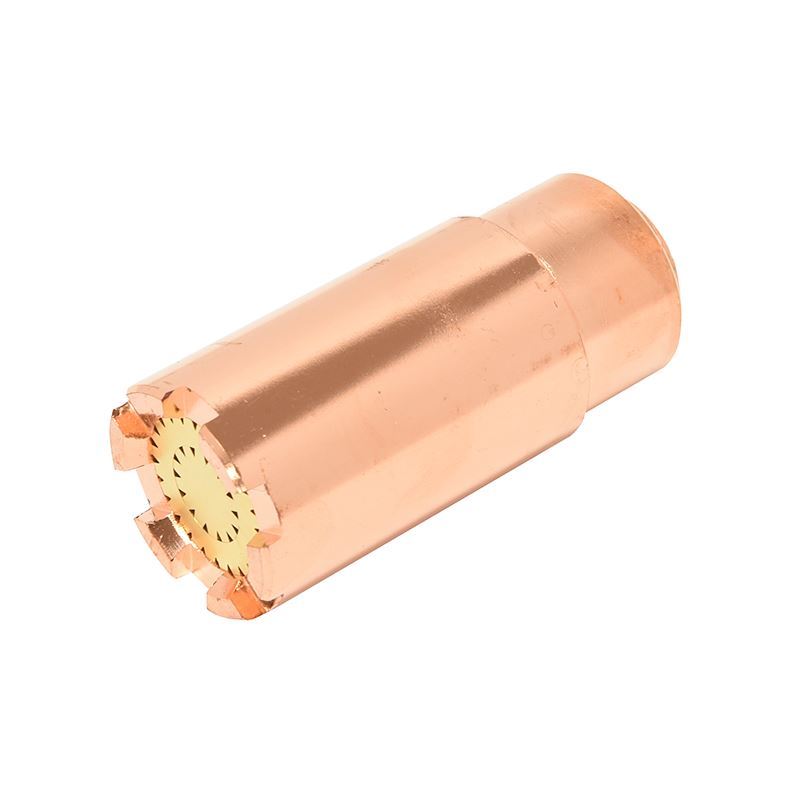

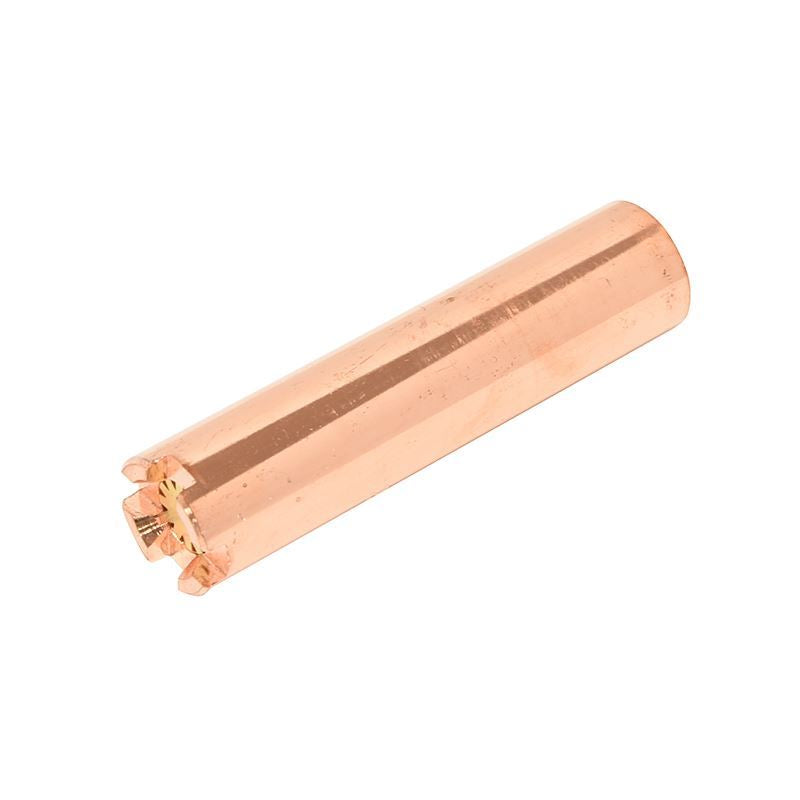

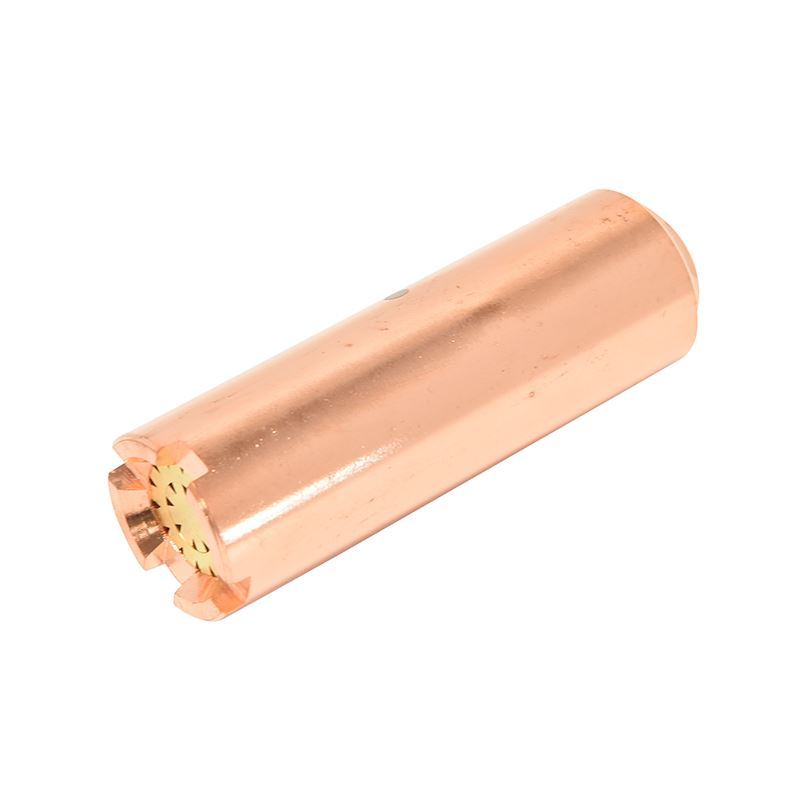

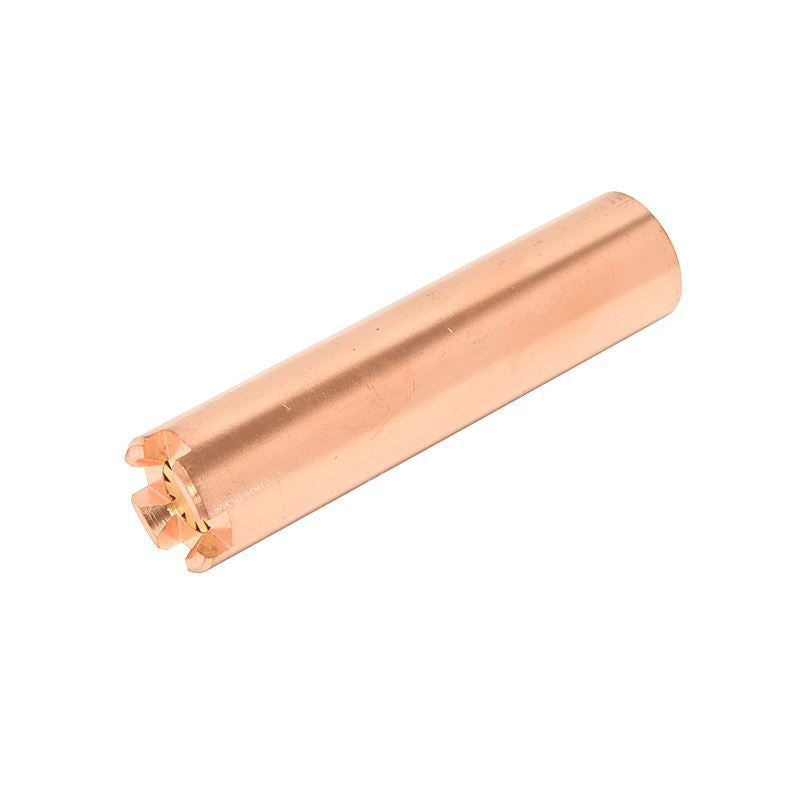

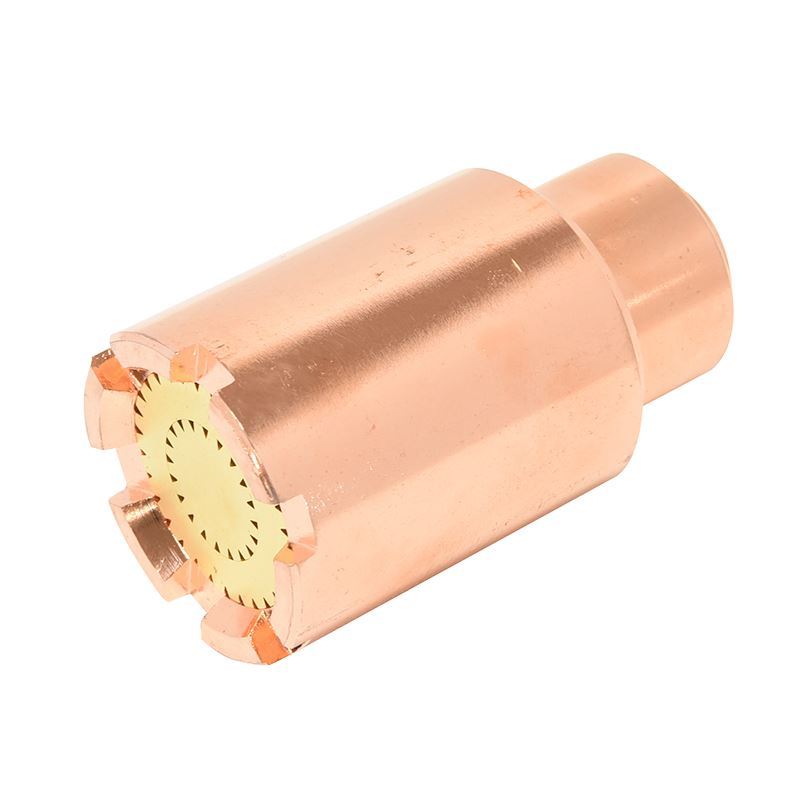

Hi-Lo 1H-5H Oxygen/Propane Super Heating Nozzles
Hi-Lo UK Super heating nozzle is available in sizes #1 to #5 Oxy/propane and are used throughout the industry for a wide variety of applications.
Often used in pre and post-heating for your welding applications these are typically used in heating large plates for forming operations, expanding items and other similar applications.
You can use these with Hi-Lo Type 3 shank, propane heavy duty mixer and long stainless-steel neck (500mm, 700mm or 900mm) However these heating nozzles can be fitted directly into extended length cutting torch which provides higher heat output.
Oxygen flow rates and time to consume a full W size oxygen cylinder
Oxygen W Cylinder content = 11.71m3
48 kg cylinder propane = 25.28m3
Oxygen / propane super heating nozzle typical consumption
1H Propane l/hr 830 1900 Full propane cylinders. 30 hrs 28mins to 13hrs 20 mins
1H Oxygen l/hr 3500 7300 Full cylinder used in 3hrs 20mins to 1hr 36 mins
2H Propane 1/hr 1200 2100 Full propane cylinders. 21hrs 3mins to 12hrs 2mins
2H Oxygen l/hr 4800 8700 Full cylinder used in 2hrs 26mins to 1hrs 20mins
Sometimes you might hear people refer to nozzles as “Pepper Pots” however these super heating nozzles when compared to other heating nozzles styles this names isn’t appropriate.
Hi-Lo UK gas equipment super propane heating nozzle is available in the following configurations:
Technical Information: Output
1HC - No.HL030501 - 72 000 - 163 000 Btu/H
2HC - No.HL030502 - 102 000- 188 000 Btu/H
3HC - No.HL030503 - 183 000 - 361 000 Btu/H
4HC - No.HL030504 - 236 000 - 406 000 Btu/H
5HC - No.HL030505 - 250 000 - 618 000 Btu/H
Our superheating nozzles are safe and of high quality, however correct setting of these nozzles is important to ensure the fuel is burnt correctly. We would highly recommend you to avoid soft flame, if you have too much heat use a smaller size nozzle.
Key Features:
- Sizes #1 - #5 available
- Used in pre and post welding application
- For use with Oxy/Propane
