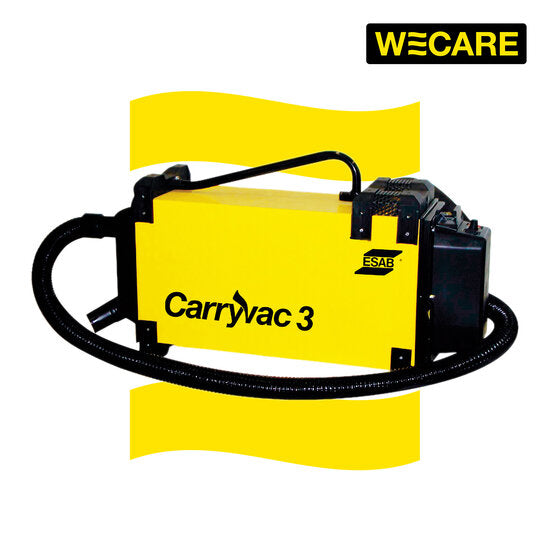

CarryVac 3 is a small, lightweight and portable fume extraction unit used to maintain a healthy work environment by extracting fumes directly at the source in light duty welding applications.
Designed to be carried to the working area, it can be connected to either a fume extraction welding torch or to the extraction nozzle to extract fumes.
Weld fumes are filtered and captured in a hygienically-packed filter that offers complete protection from particles keeping them isolated from welders even when performing a filter change.

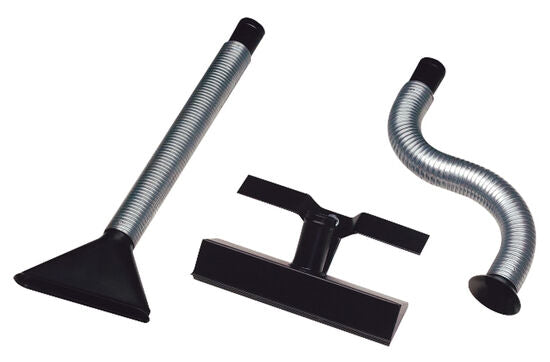

Delivery includes: ESAB carryvac 3 fume extraction unit complete with hose superflex crushproof Ø50 2.5 m (8 ft), 2x hose connection M50 Ø50mm, sensor clamp, filter and instruction manual.
-
Nanofiber filter with extended dust holding capacity and 99% efficiency in capturing welding fumes
-
Manual and automatic start/stop function which increases the service life of each filter and of the unit itself
-
Adjustable flow to adapt to different torches and hoods
-
Automatic flow adjustment to maintain correct airflow and suction during operations
-
Alarm notifications
-
ISO 21904 compatible for industry standards compliance
-
Suitable for fume extraction for light welding applications
Welding Process:
Welding, GMAW (MIG/MAG)
Welding, GTAW (TIG)
Welding, PAW -Plasma Arc Welding
Welding, SMAW/MMA (Stick)
Technical Specification
