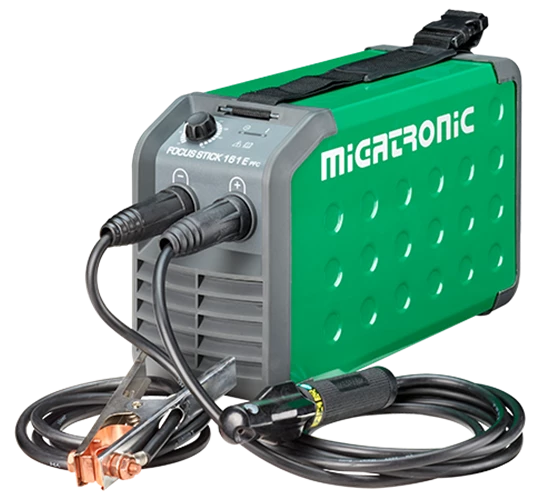

Migatronic 161 E PFC Focus Stick 230V
Handy and mobile welding machine with outstanding ignition properties, reliable MMA inverter welding machines with excellent ignition properties which ensure a stable arc. (TIG with scratch ignition).
The lightweight design makes the welding machine perfect to bring along. The machine has excellent ignition properties and a stable arc. Focus Stick is applicable for mild and stainless steel welding operations.
- Very handy, very lightweight – only 4.9-6.3 kilograms
- Stable arc
- Only one knob – simple to operate
- Allows simple TIG welding
The Focus Stick is suitable for both workshop and outdoor use; it is the ideal machine for maintenance and minor welding operations.
Small and user-friendly - The size of the welding machine makes it fit in anywhere, in the back of your car, in the tool trolley and on the shelf when not in use. The carrying strap makes it even easier to bring the machine along.
Focus Stick has only one knob, making it the simplest welding machine to operate. Use the knob to find your preferred settings.
Not just an MMA inverter - With Focus Stick, simple TIG welding with scratch ignition is possible. For more flexibility, you also have the option of plus or minus polarity on the electrode clamp, so you can weld with basic as well as rutile electrodes.

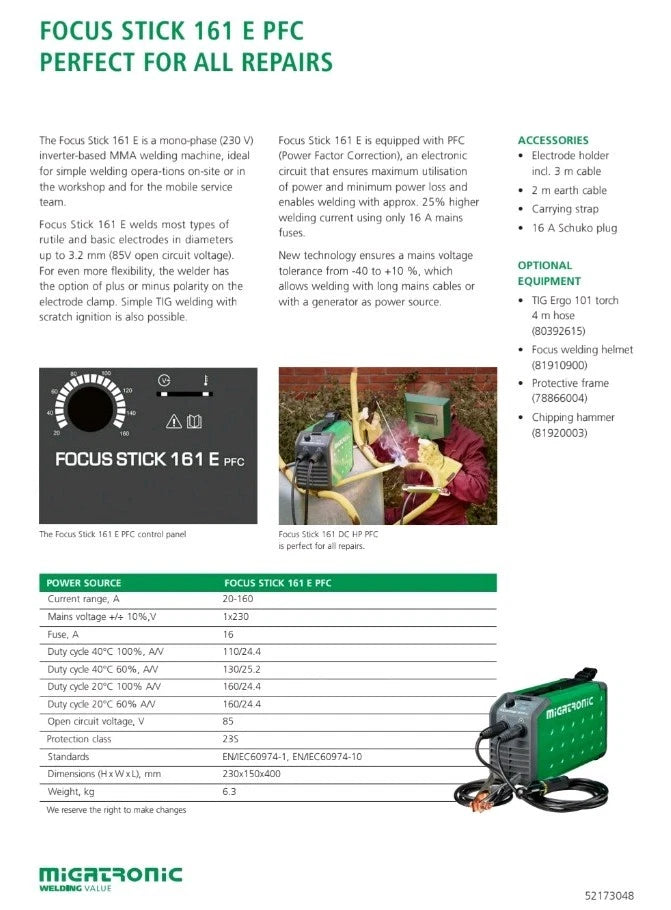

Technical Data
| Current range | 20-160 A |
| Mains voltage +/-10% | 1 × 230 V |
| Fuse type C | 16 |
| Duty cycle 100 %/40 °C (MMA) | 110 A/24.4 V |
| Duty cycle 60 %/40 °C (MMA) | 130 A/25.2 V |
| Duty cycle 100 %/20 °C (MMA) | 160 A/24.4 V |
| Duty cycle 60 %/20 °C (MMA) | 160 A/24.4V |
| Open circuit voltage | 85 V |
| Protection class | IP 23S |
| Standard | EN/IEC60974 -1. -10. |
| Dimensions (H × W × L) | 230 mm × 150 mm × 400 mm |
| Weight | 6.3 kg |
Features
- Hot start
- PFC
- Arc power
- Anti freeze
Accesories included
- • Electrode holder incl. 3 m cable
- • 2 m earth cable
- • Carrying strap
