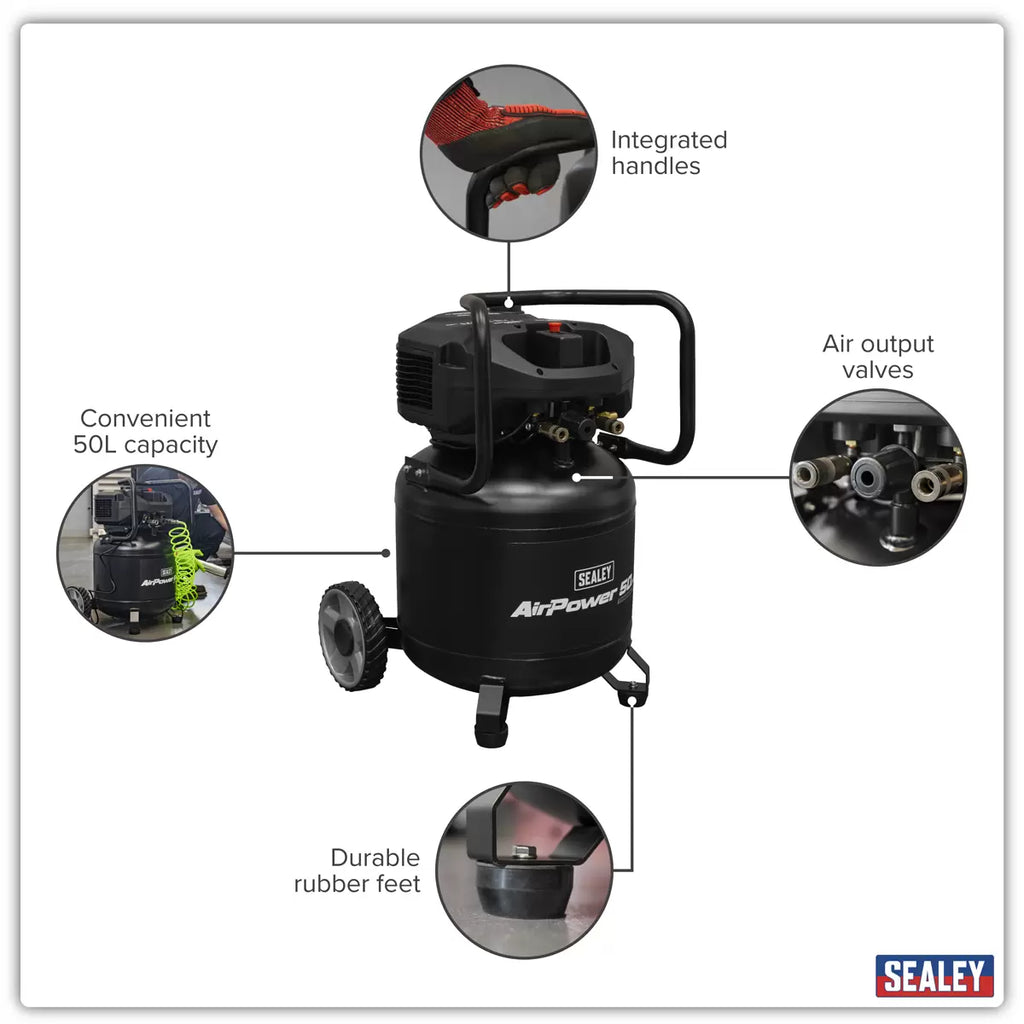

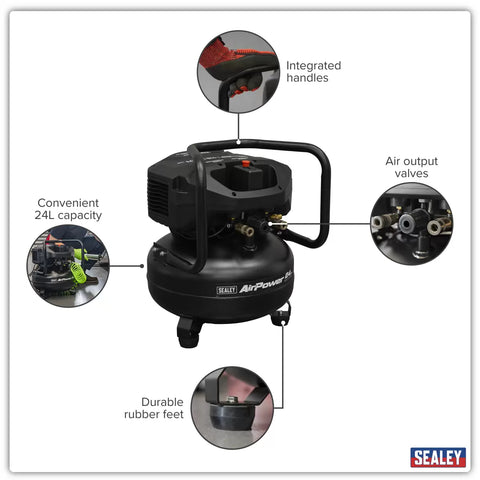

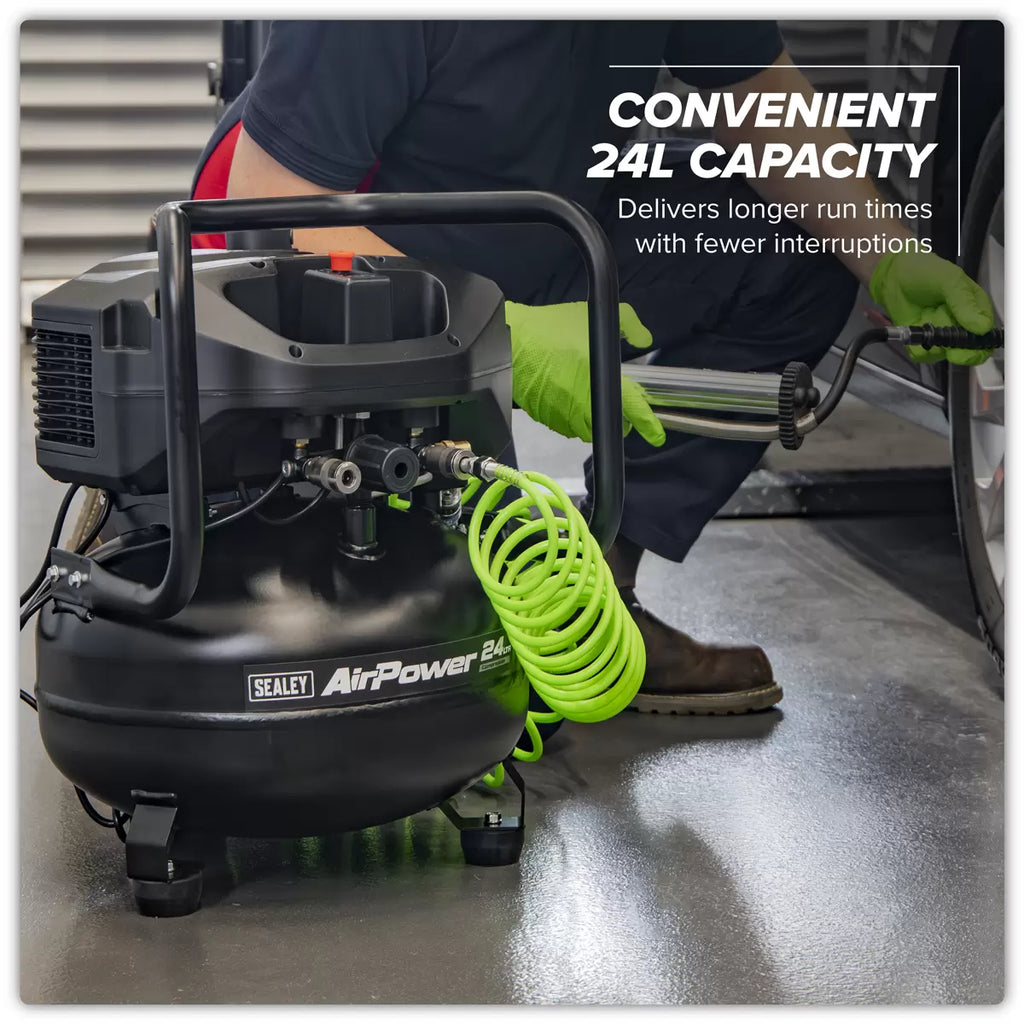

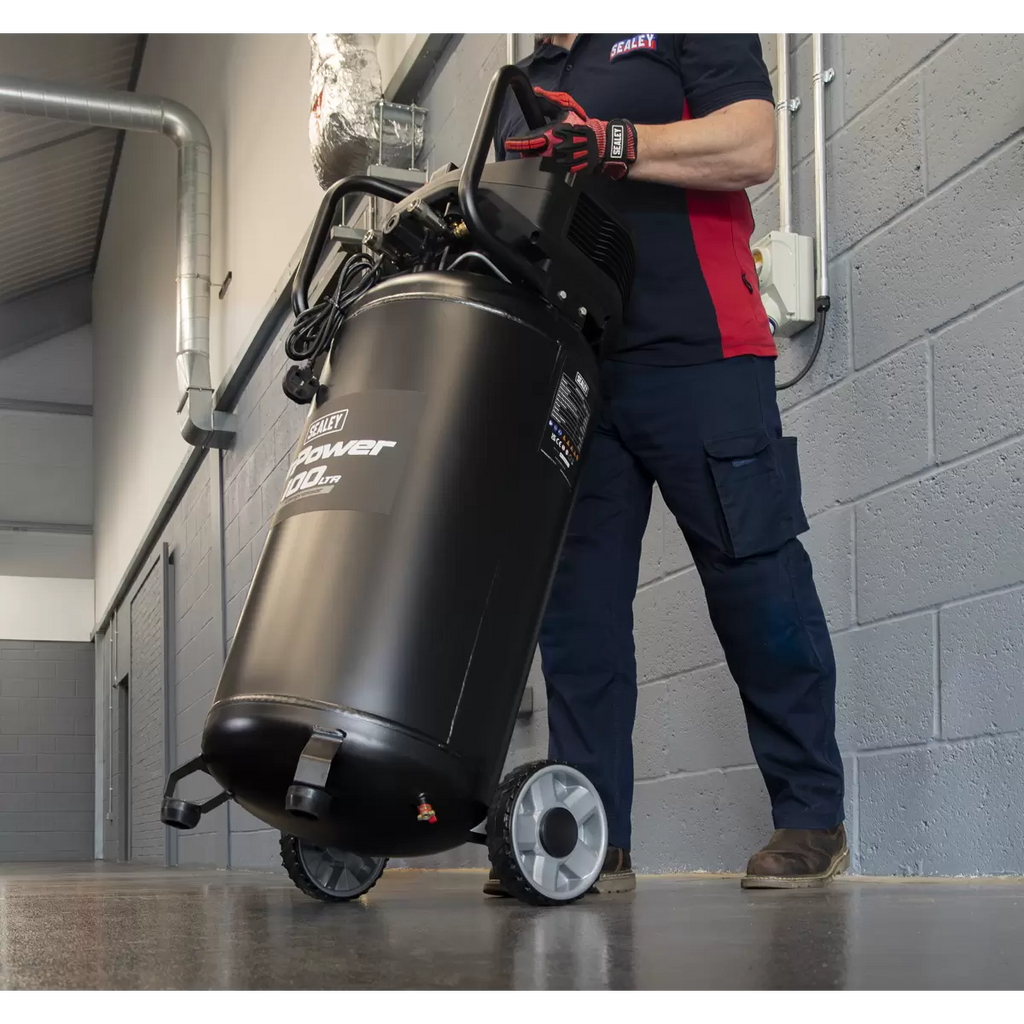

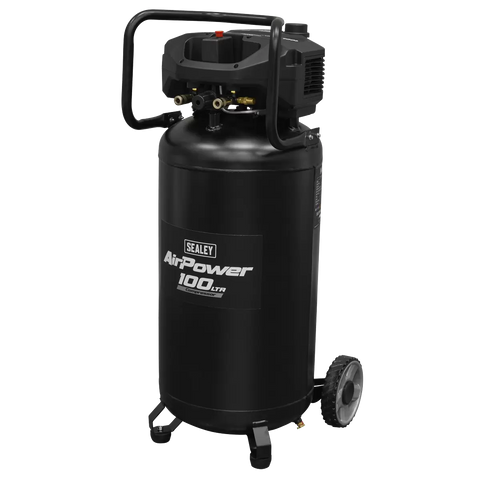

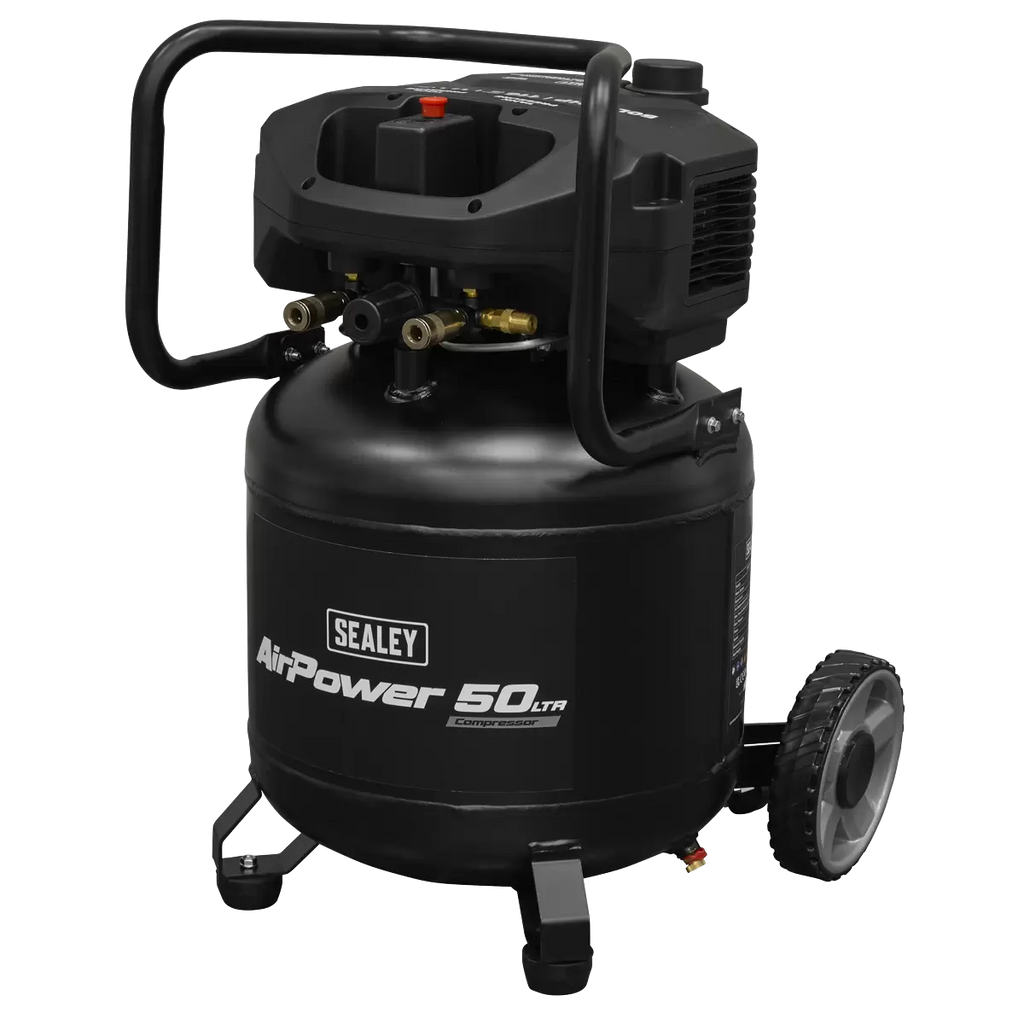

Sealey 230V Oil Free Belt Drive Vertical Compressors 24L/50L/100L
Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Fitted with fully automatic pressure cut-out switch and air regulator with gauge. Suitable for all general-purpose workshop applications. Vertical tank saves floor space which makes it perfect for small workshops. Fitted with 3-pin plug.

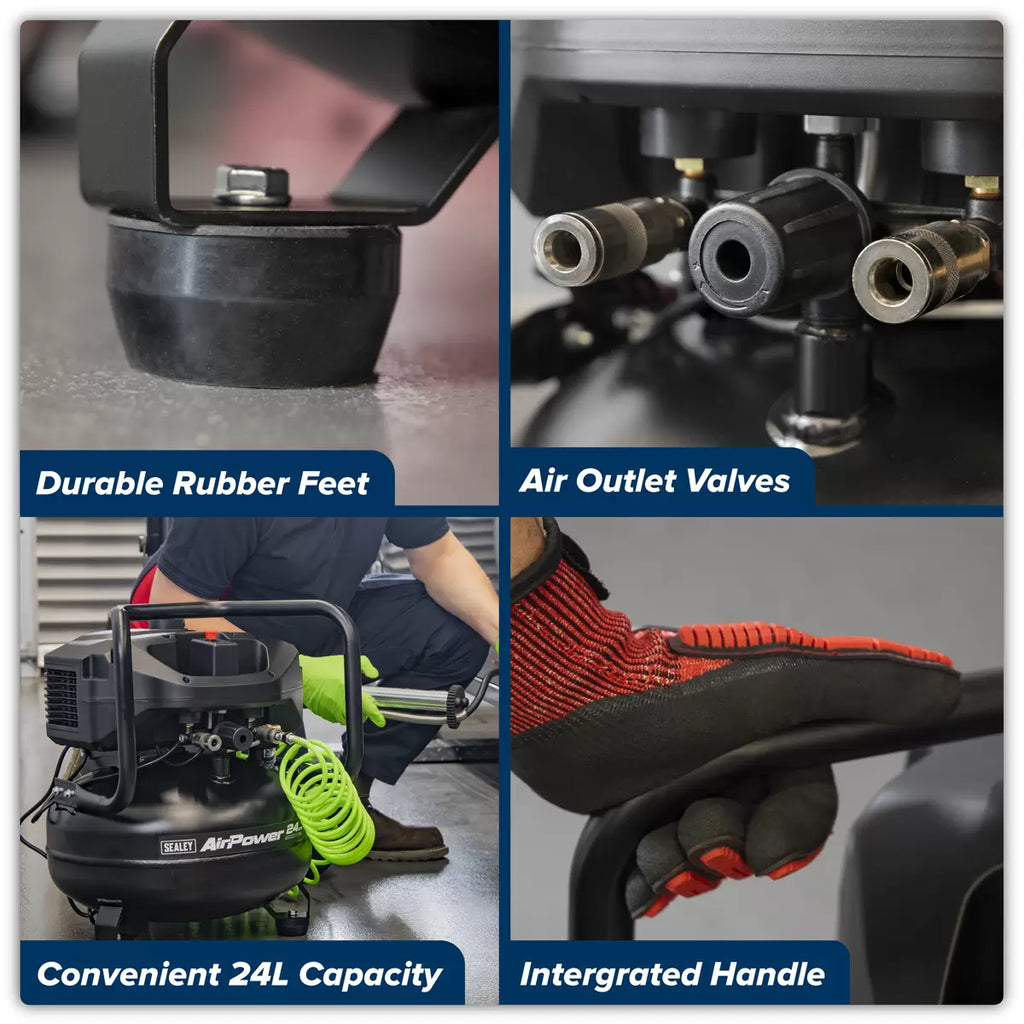

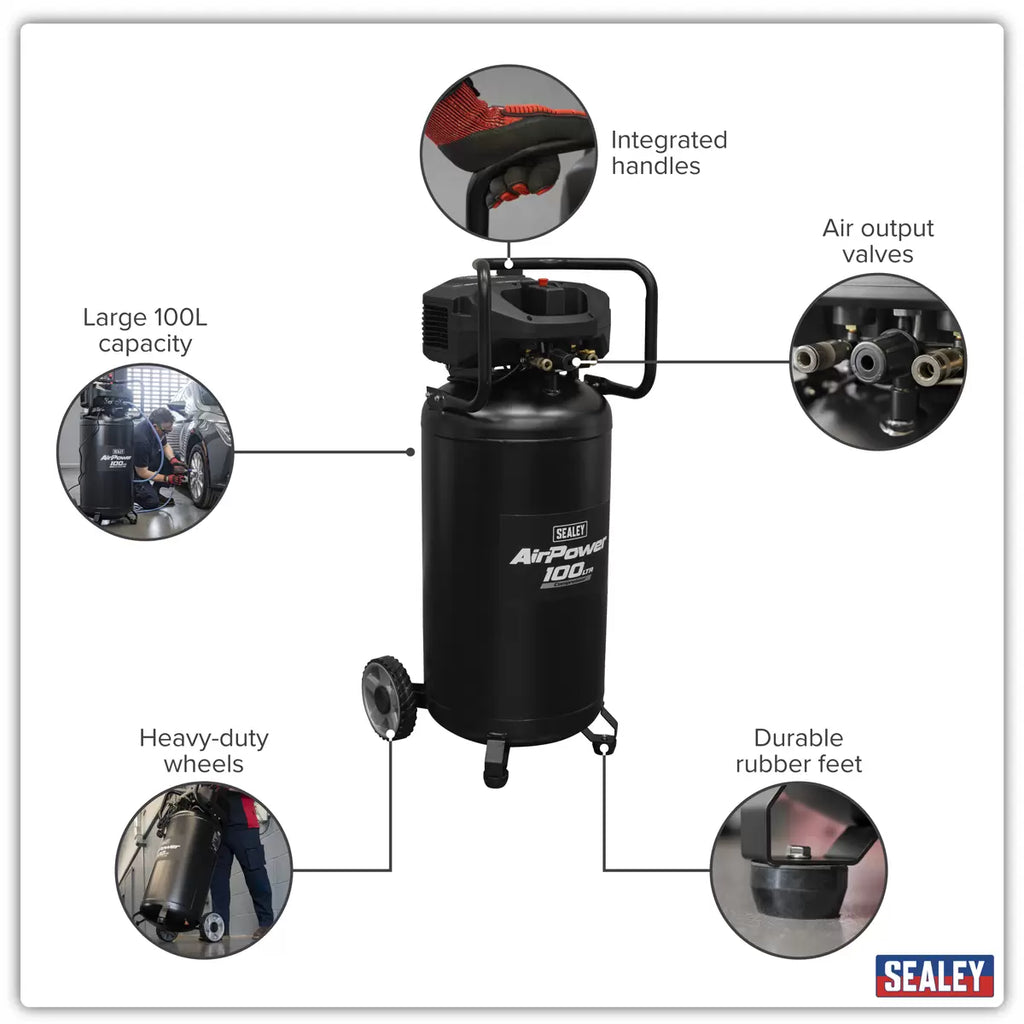

• SPACE SAVING - Vertical tank saves floor space which makes it perfect for small workshops.
• OIL FREE - The benefits of oil free compressors include: Easy maintenance, reduced noise levels, better efficiency, quieter when running and no oil contamination in the air supply.

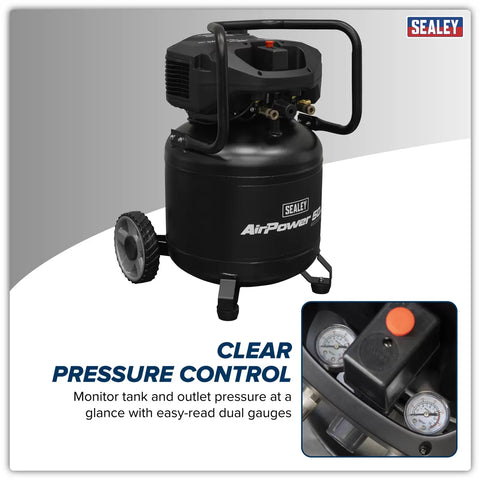

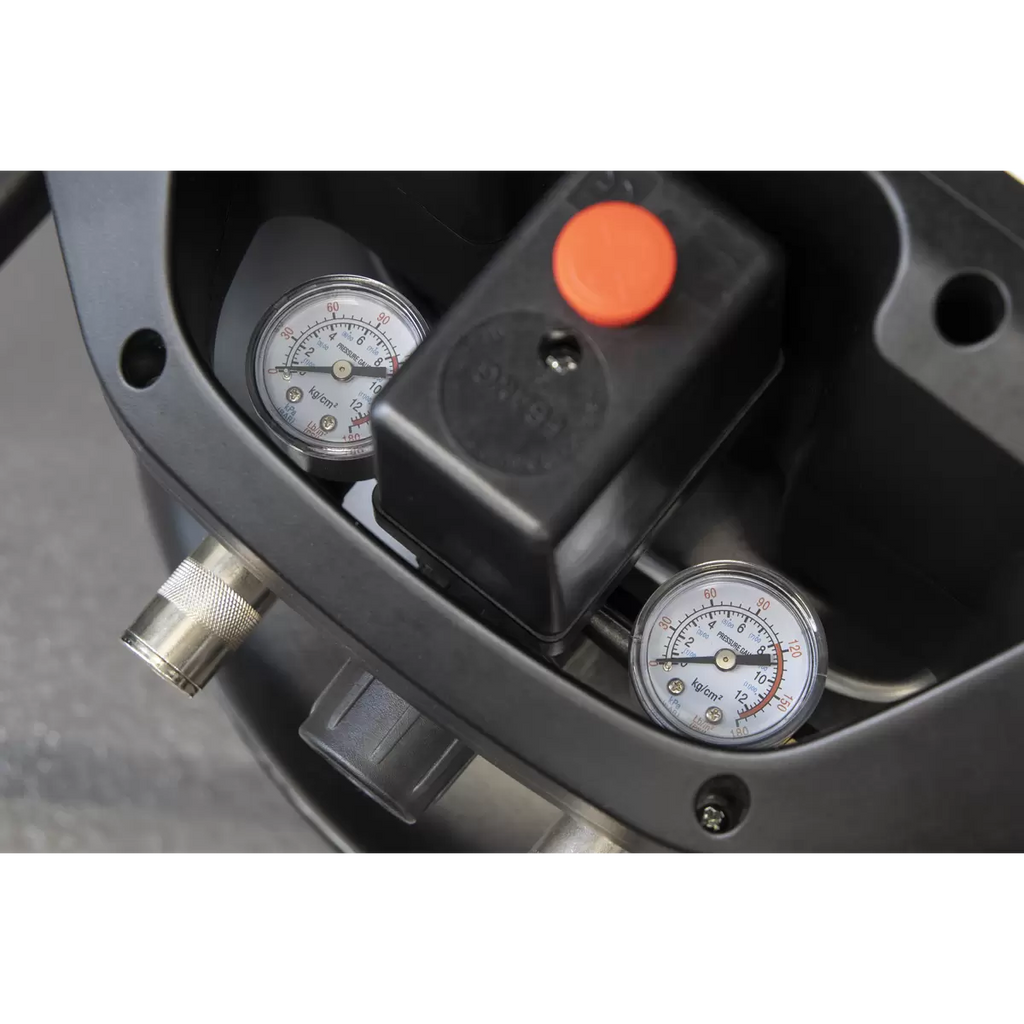

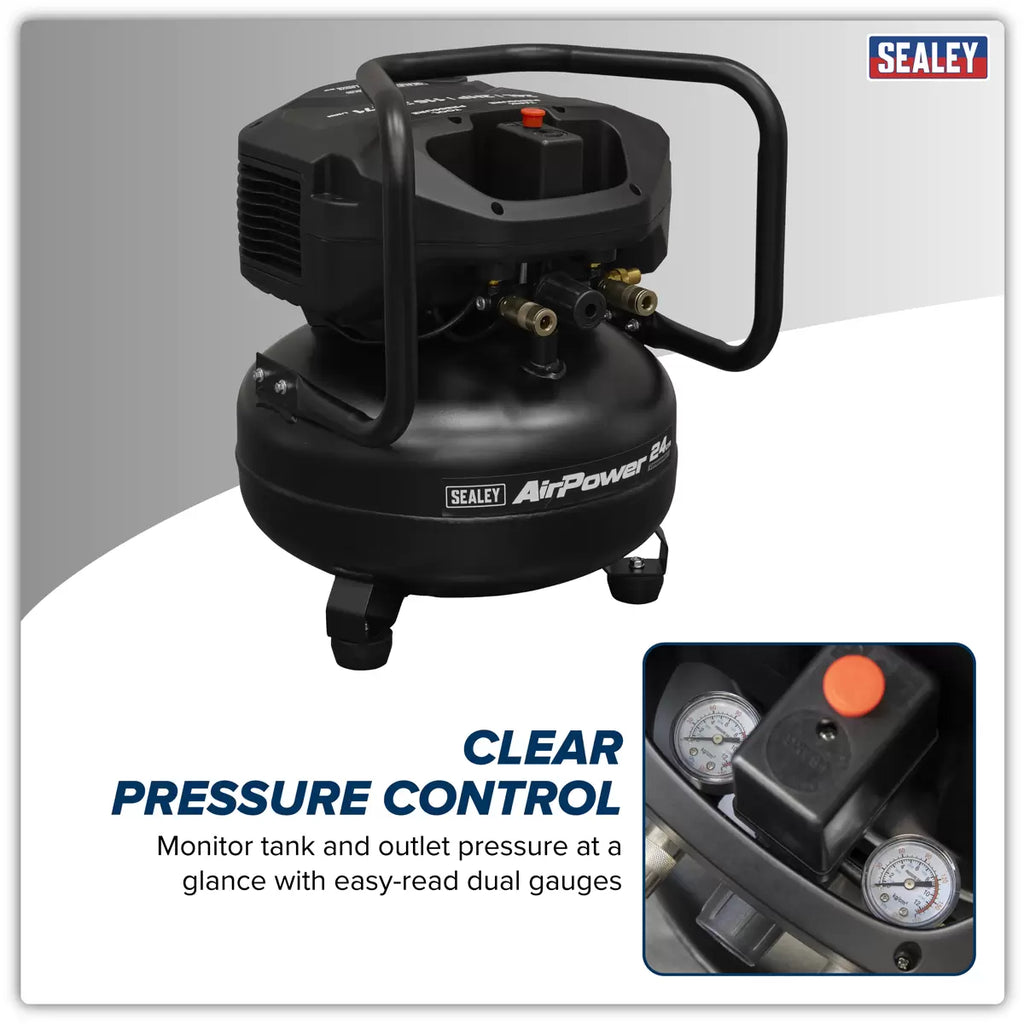

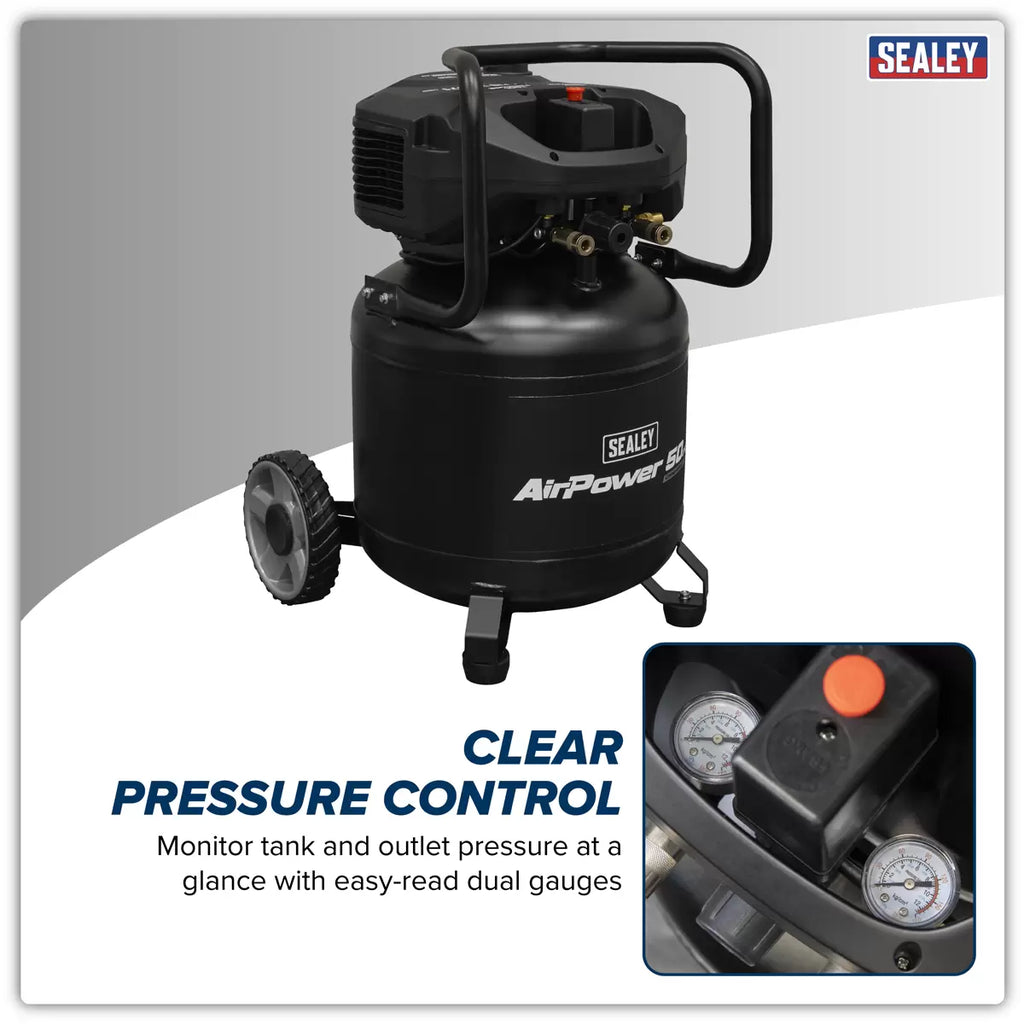

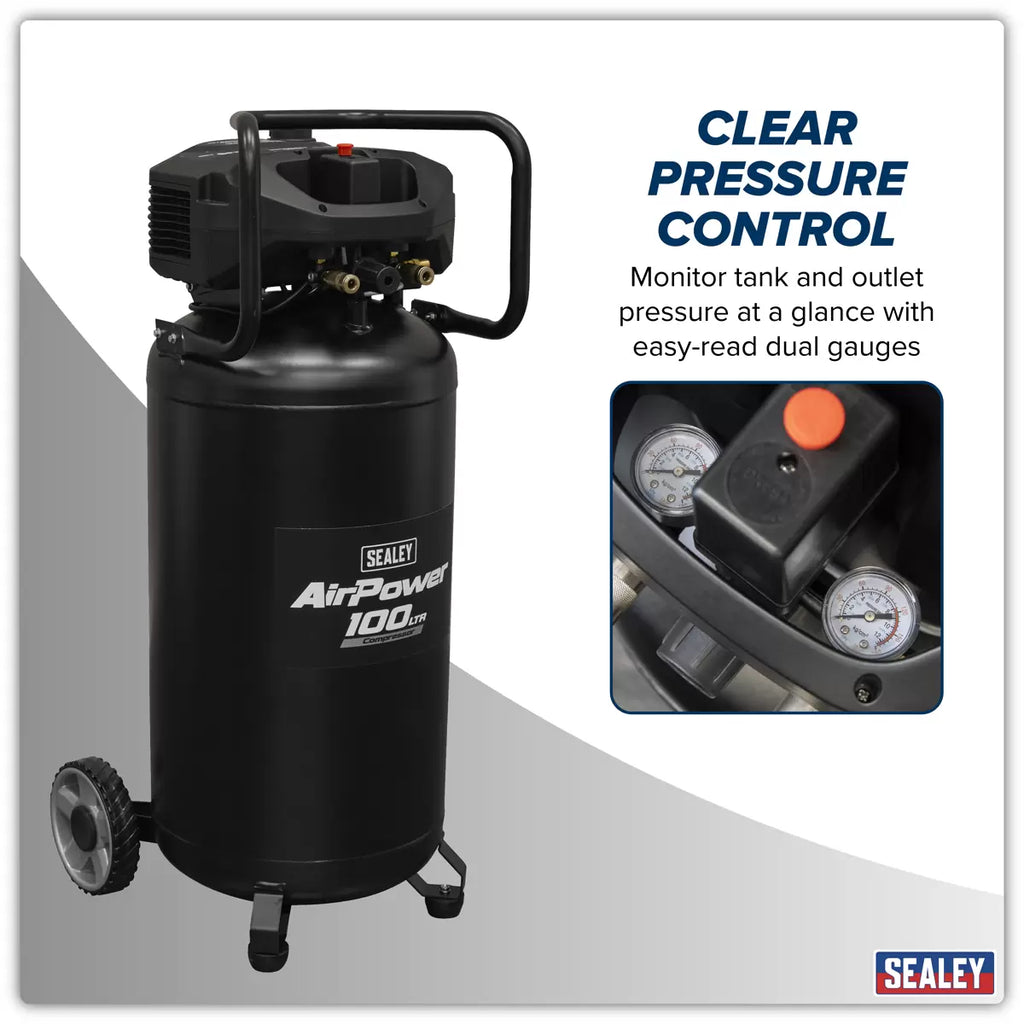

• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• ALUMINIUM CONSTRUCTION - Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.

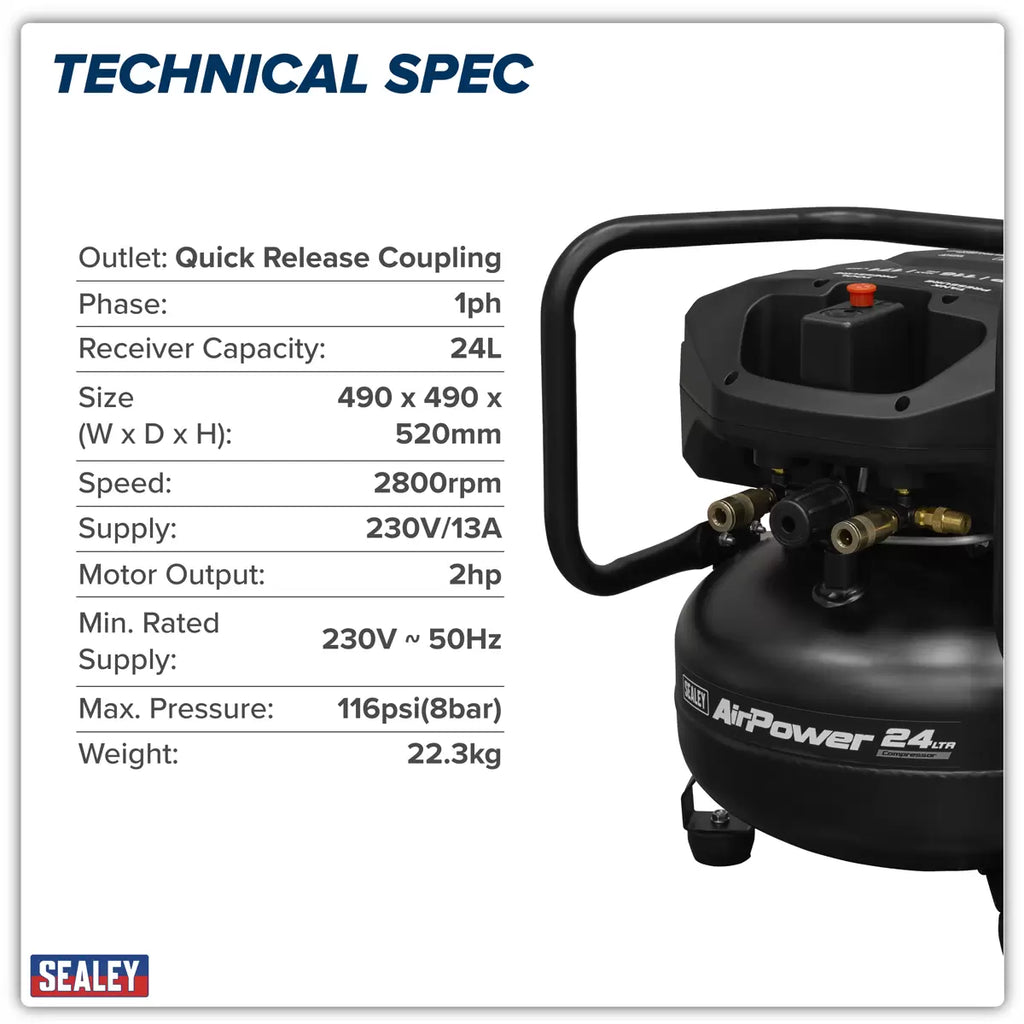

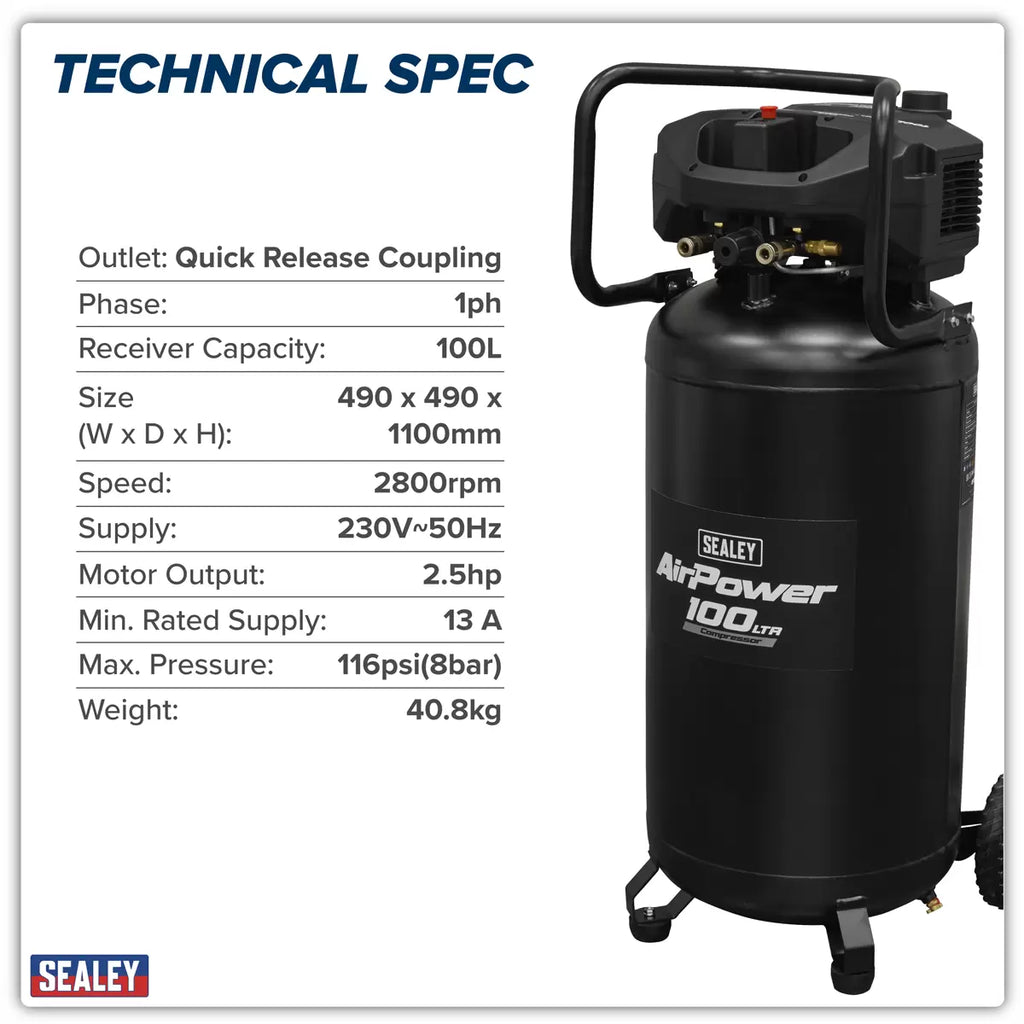

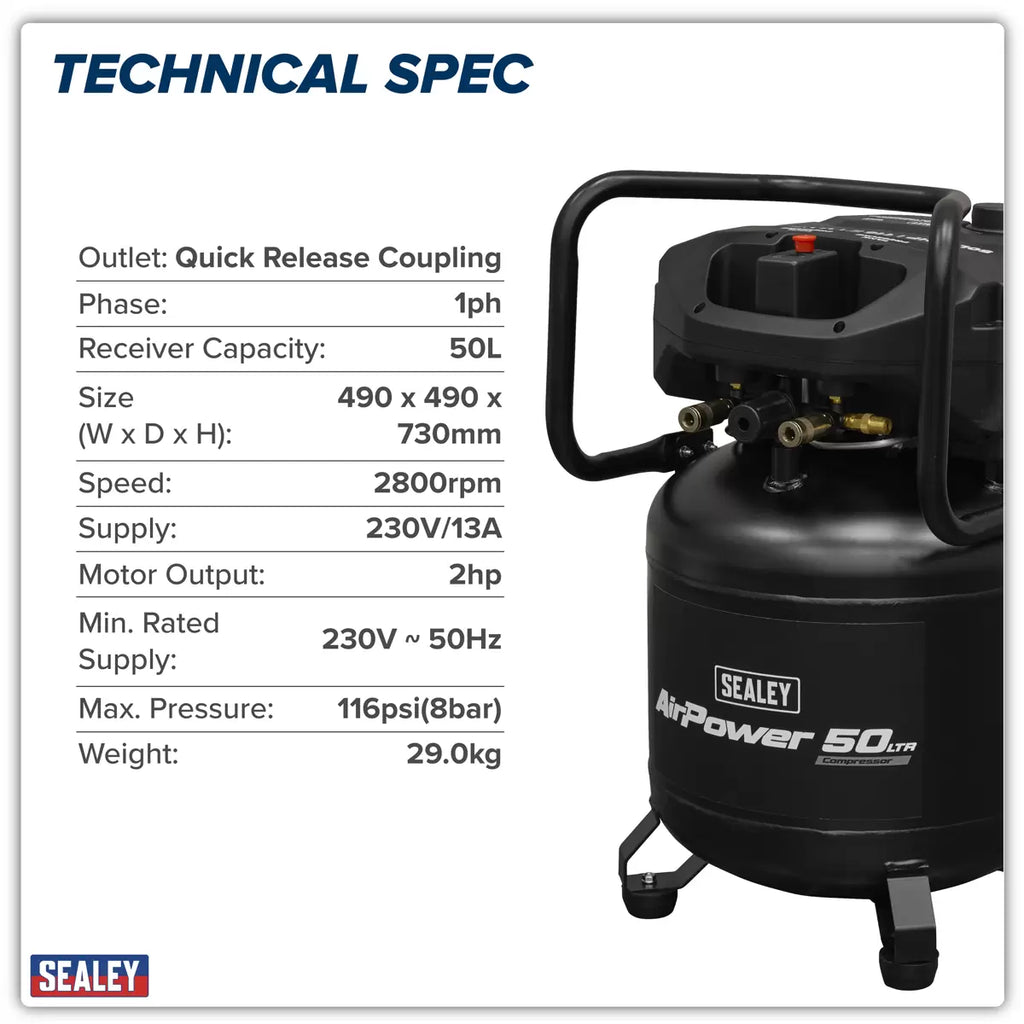

Technical Data
|
Noise Level:
|
86dB(A)
|
86dB(A)
|
96dB(A)
|
|
Oil Capacity:
|
N/A
|
N/A
|
N/A
|
|

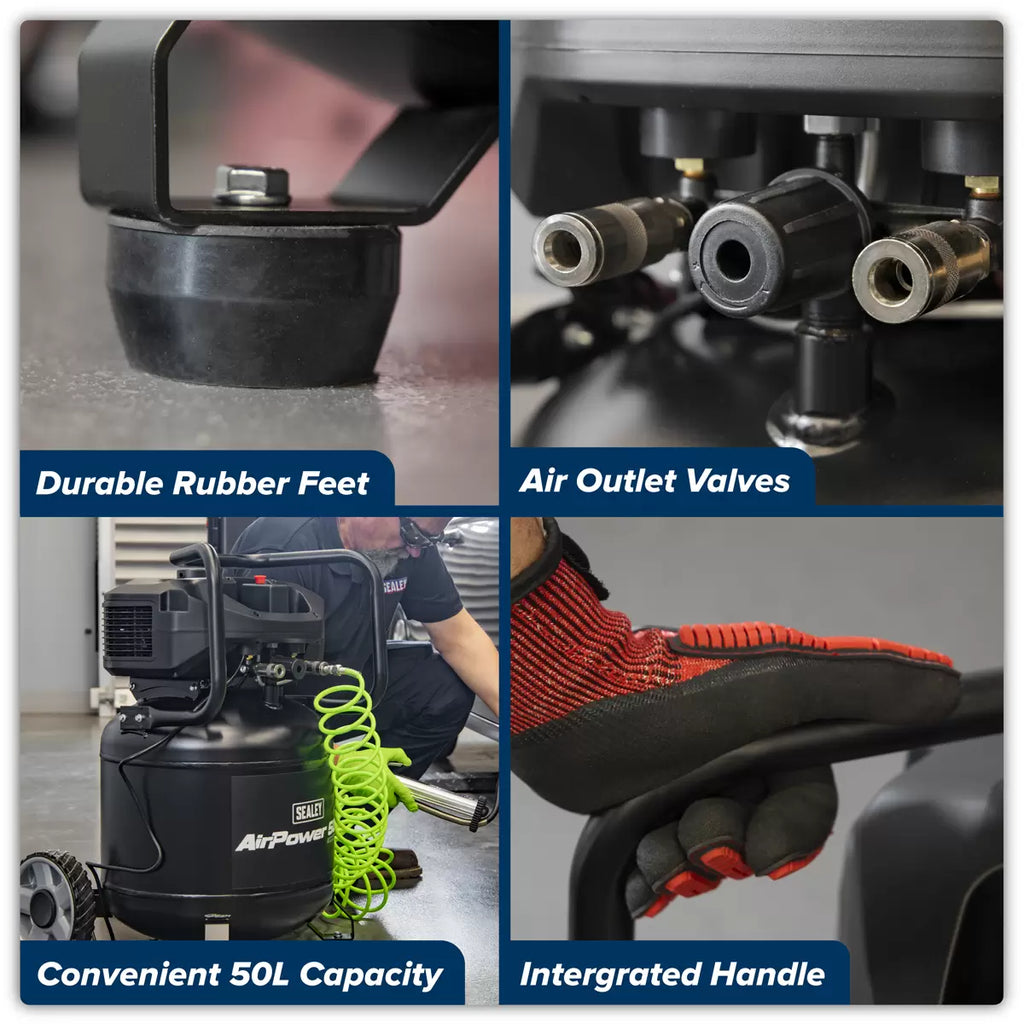

Outlet:
|
Quick Release Coupling
|
Quick Release Coupling
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
1ph
|
1ph
|
|
Receiver Capacity:
|

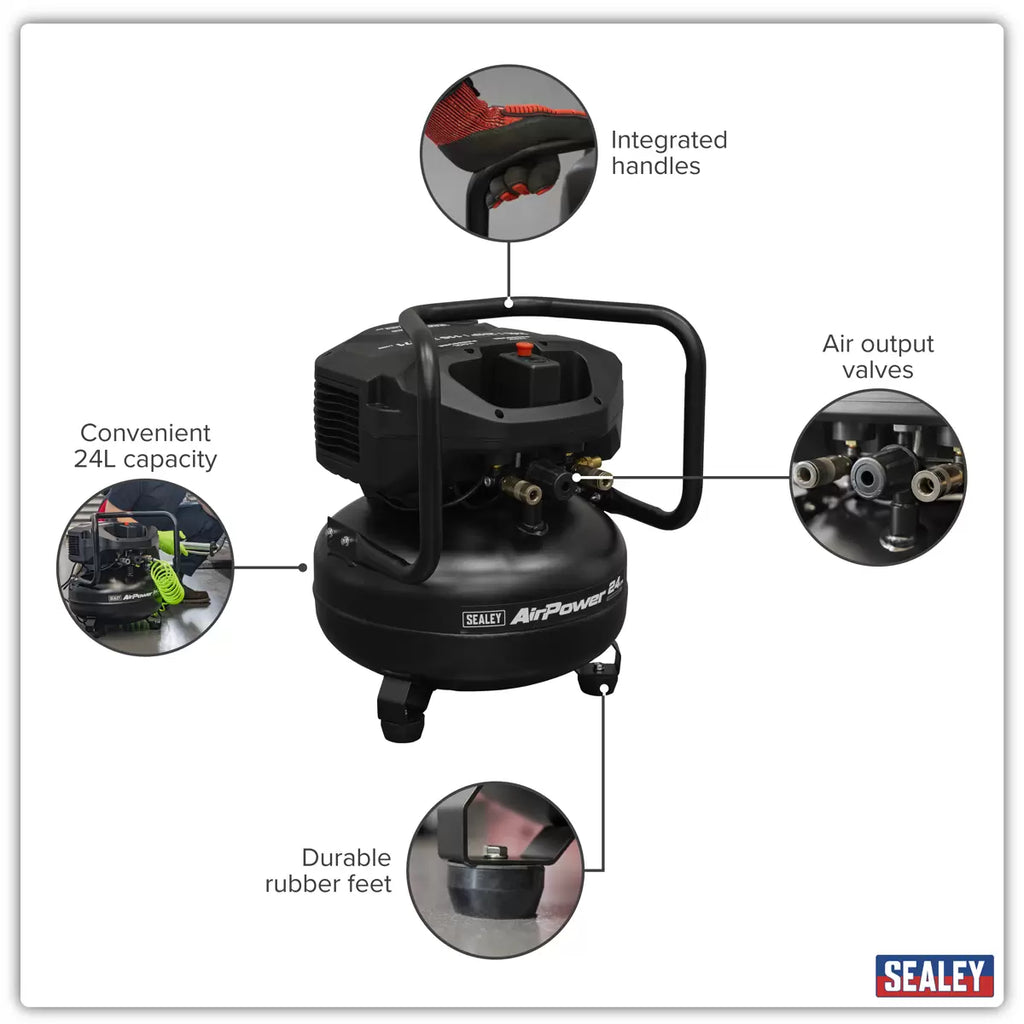

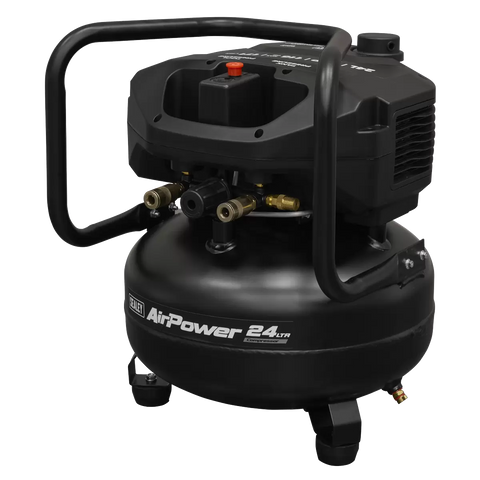

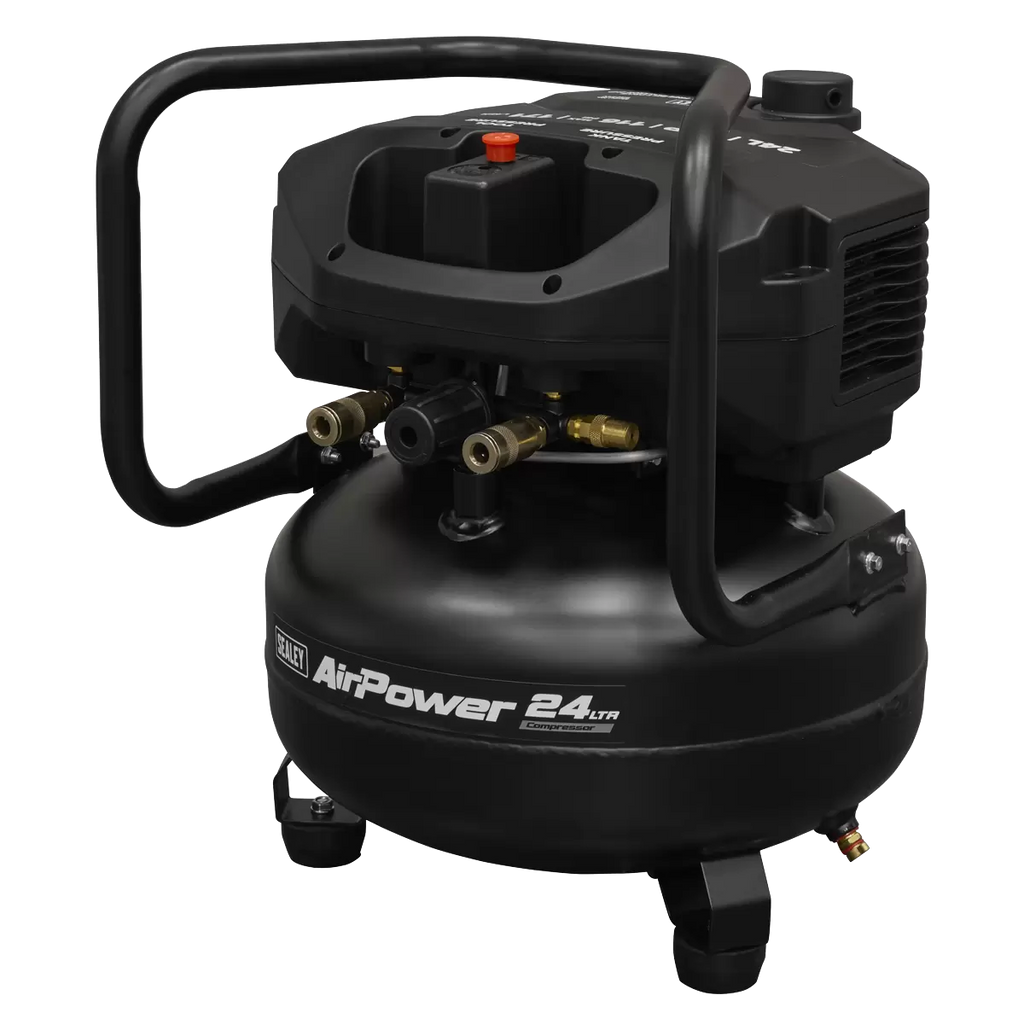

24L
|

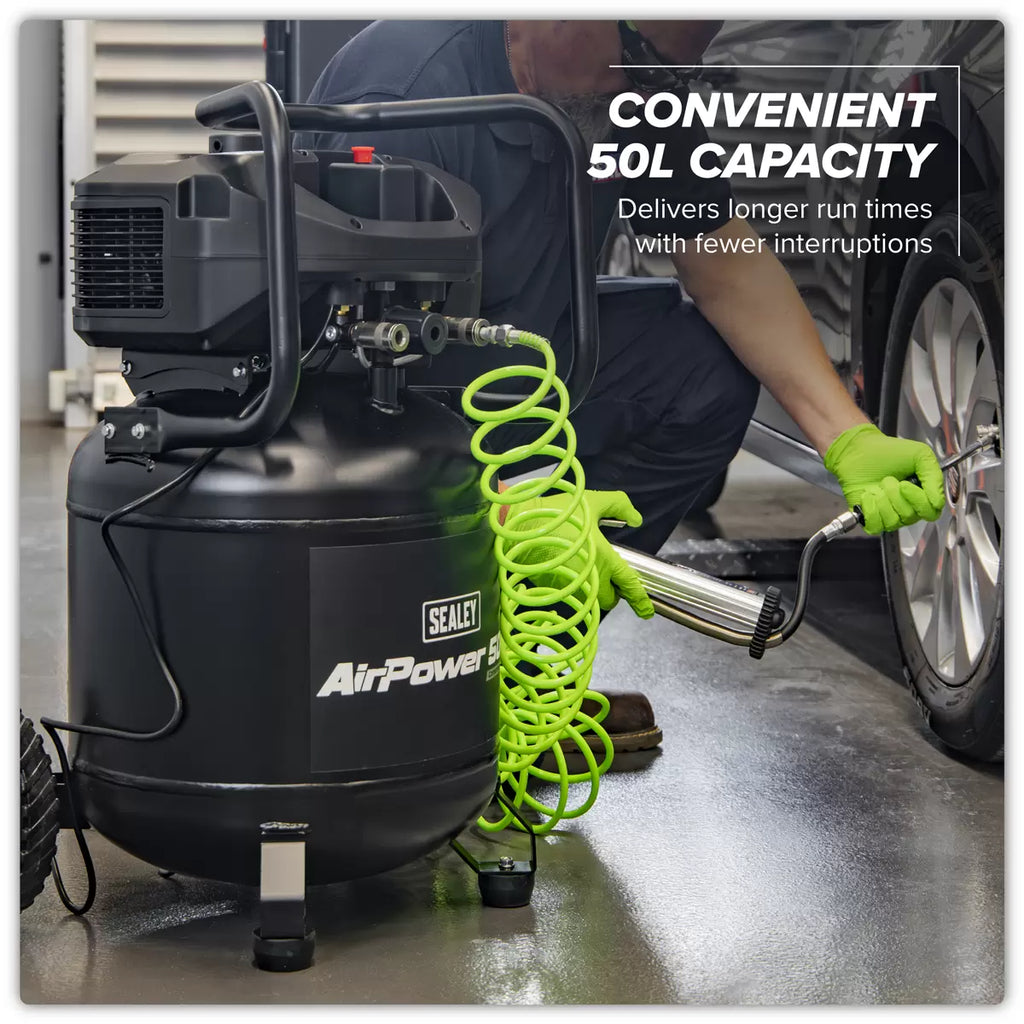

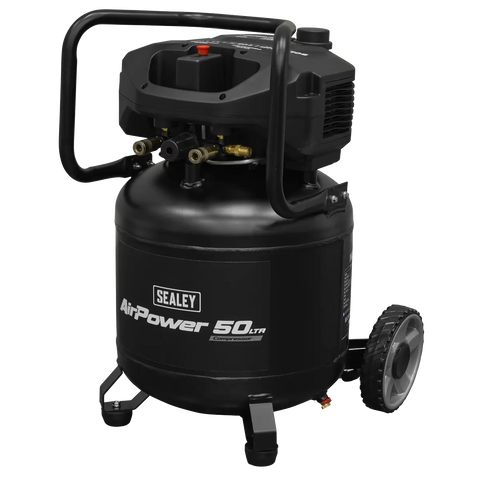

50L
|

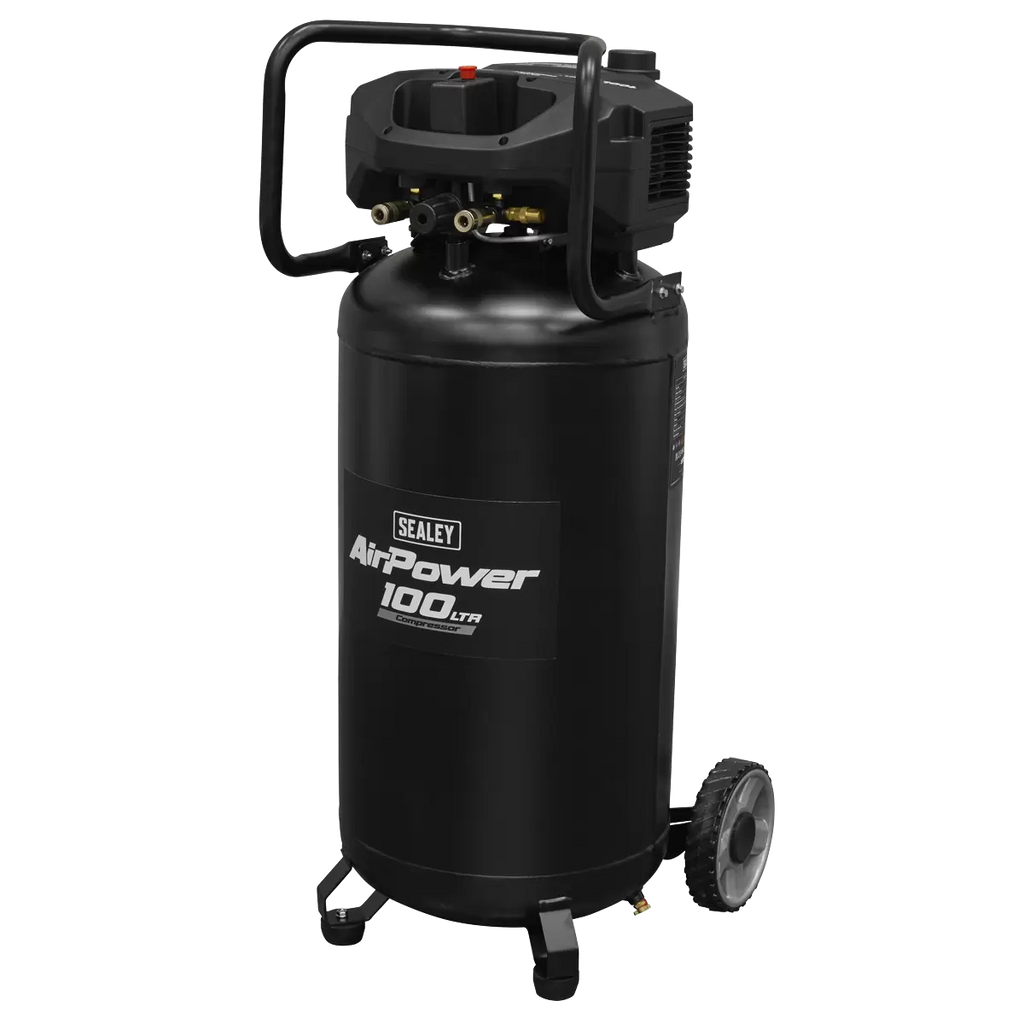

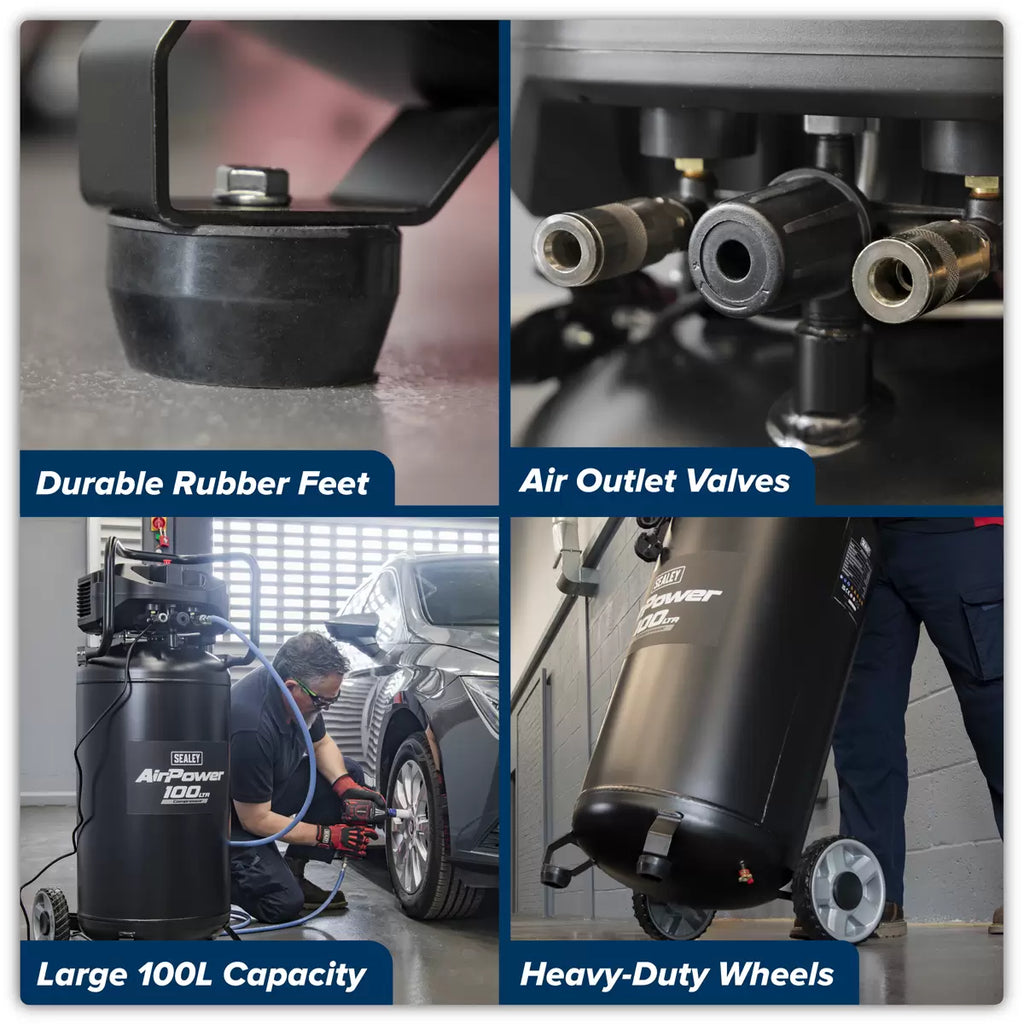

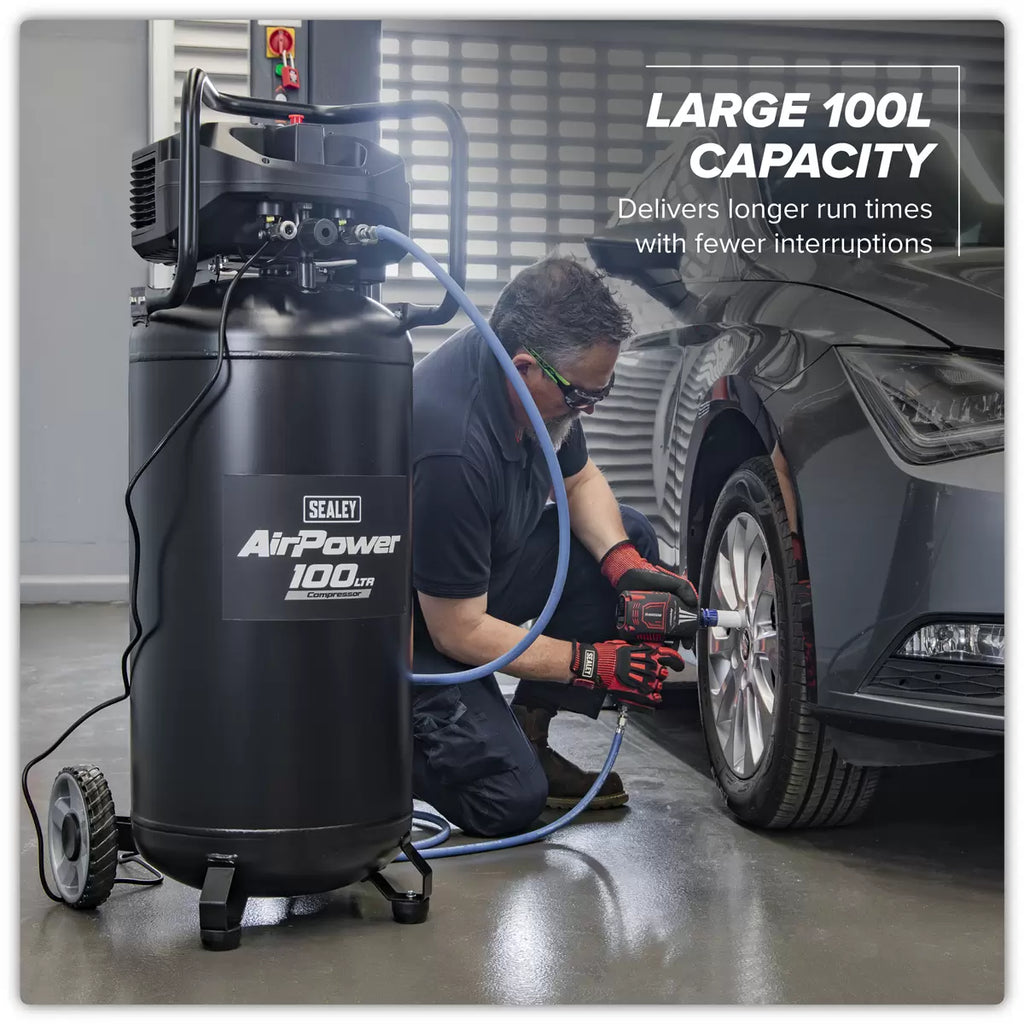

100L
|
|
Size (W x D x H):
|
490 x 490 x 520mm
|
490 x 490 x 730mm
|
490 x 490 x 1100mm
|
|
Speed:
|
2800rpm
|
2800rpm
|
2800rpm
|
|
Supply:
|
230V/13A
|
230V/13A
|
230V/13A
|
|
Nett Weight:
|
22.36kg
|
29kg
|
40.8kg
|
|
Motor Output:
|
2hp
|
2hp
|
2.5hp
|
|
Minimum Rated Supply:
|
230V ~ 50Hz
|
230V ~ 50Hz
|
230V~50Hz
|
|
Maximum Pressure:
|
116psi(8bar)
|
116psi(8bar)
|
116psi(8bar)
|
|
Maximum Free Air Delivery cfm(L/min):
|
3.3(93)
|
3.3(93)
|
4.4cfm(125L/min)
|
|
Air Displacement cfm(L/min):
|
6.04(171)
|
6.04(171)
|
8.3cfm(235L/min)
|
|
Barcode:
|
5054630609312
|
5054630609336
|
5054630609343
|
Declaration of Conformity 24L Declaration of Conformity 50L Declaration of Conformity 100L
