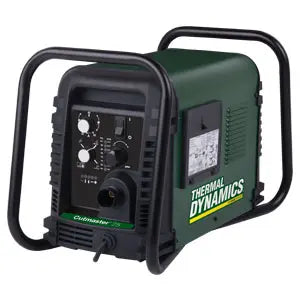

Thermal Dynamics 1-1330-4 Cutmaster 25 True Series Plasma Cutter 400V, 100A
The CUTMASTER 25mm manual plasma system is the big brother to the CUTMASTER 20mm and is specifically designed to serve the 25mm cutting market whilst maintaining maximum portability. Operating from a 400V three phase supply, the inverter based design
incorporates features such as auto-pilot re-start, True Guard roll bar and the industry renowned SL60 1Torch® for superior durability and consumable life. The unit can
also be used for gouging applications when fitted with the correct torch consumables.
The unit is covered by a three year limited warranty and is ideal for heavier fabrication, construction and maintenance applications.
The CUTMASTER 25mm manual plasma system is the big brother to the CUTMASTER
20mm and is specifically designed to serve the 25mm cutting market whilst maintaining
maximum portability. Operating from a 400V three phase supply, the inverter based
design incorporates features such as auto-pilot re-start, True Guard roll bar and
the industry renowned SL60 1Torch for superior durability and consumable life. The
unit can also be used for gouging applications when fitted with the correct torch
consumables.
These features combined with a three year limited warranty make this the ideal unit
for and fabrication, construction and maintenance applications.
• Heavy Fabrication
• Manufacturing
• Contractors
• 3-Year warranty power supply
• 1-Year warranty torch
Performance
• True Cut - 25 mm
• Maximum Cut - 30 mm
• Severance Cut - 38 mm
• Pierce Rating - 15 mm
• Max Amperage Output - 80A
Dimensions - W305 mm x H381 mm x D610 mm
Weight
• 19.5 kg
Torch
• SL60
• Air Pressure - 5.2 bar
• Air Flow - 190 l/m
Input Voltage - 400V, 3 ph, 50 Hz
Duty Cycle (40º C) - 40% at 80A
