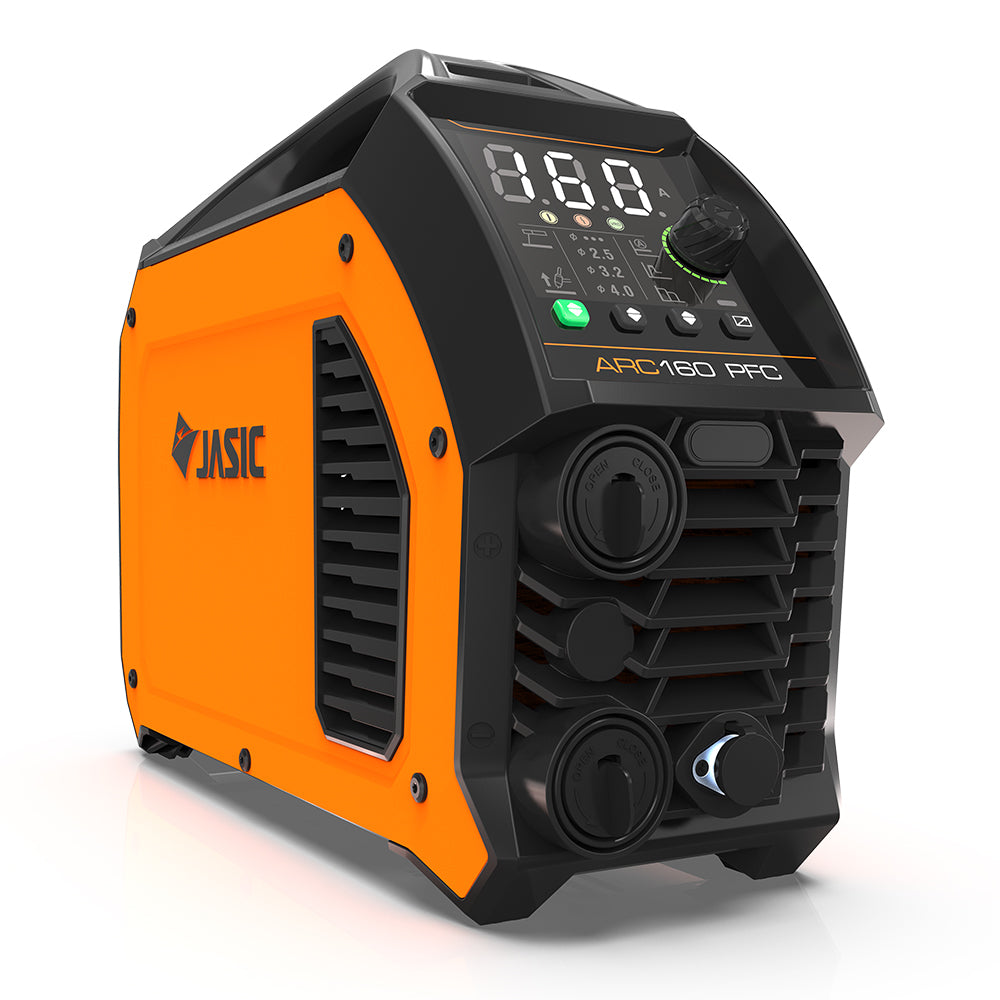

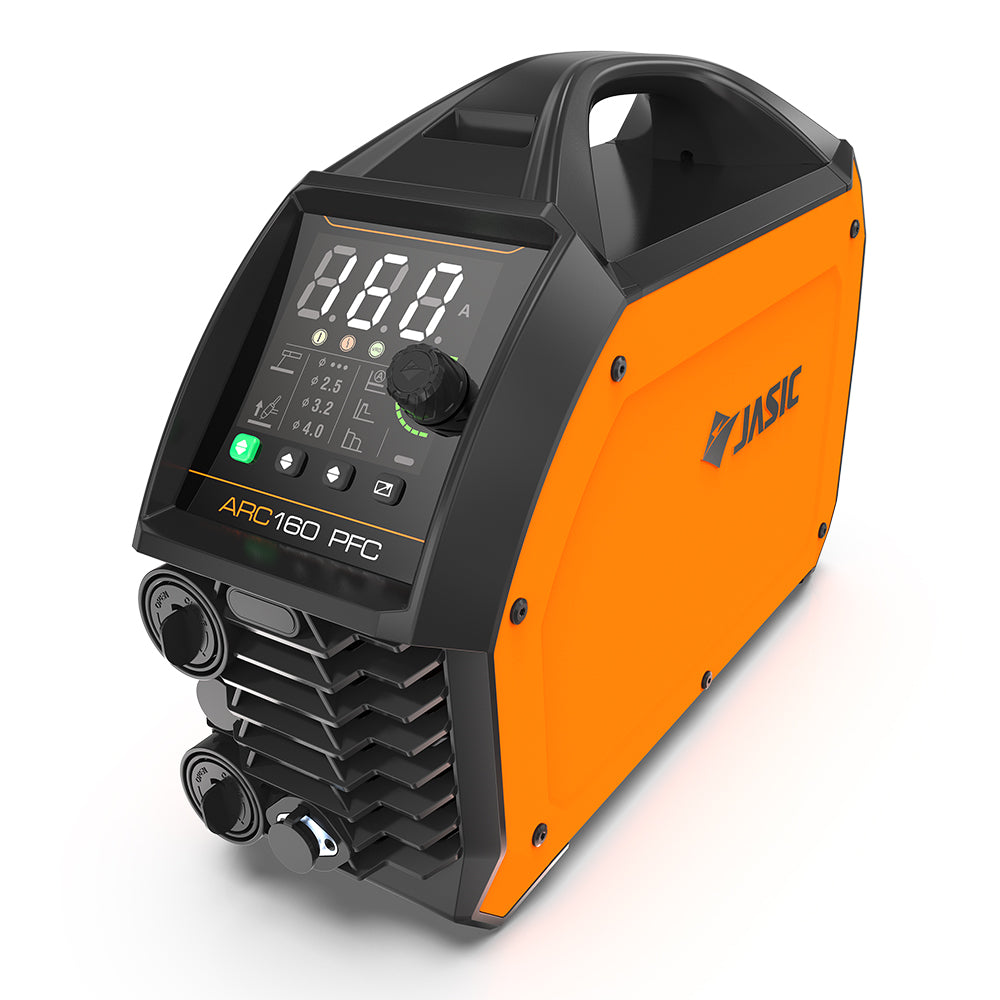

Jasic EA160 EVO Arc 160 PFC Inverter c/w Case & Leads, 160A 95-265V
All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug 13Amp Adaptor Lead
Experience the latest in MMA welding technology with our feature-packed product. Designed with a rugged, ergonomic design, it guarantees durability and comfort for extended usage. Employing the latest ClearVision technology, offering enhanced display panel visibility that provides crisp and clear reading that is still visible under direct sunlight. Furthermore, the 45° slanted angle of the panel gives a 41% enhanced viewing area compared to a vertically positioned panel.
Cutting-edge Intelligent Synergic Control will optimise your welding parameters for superior results. The device also boasts of an adaptable wide voltage range, accommodating varying power conditions.
Other features include hot start and arc force to boost the amperage at the beginning or during the welding operation to compensate for voltage drops by adding more heat to the cold plate. The inverter also includes Anti-Stick that senses the electrode sticking, and automatically reduces the welding current to stop the electrode from continuing to weld itself to the job, allowing it to break free easily.
The product also features power factor correction (PFC) that reduces the power consumed and makes it ideal for use with an AVR power generator. You can also take control of the machine remotely using the optional dedicated wireless remote and receiver module.
Experience the ABAP: Active Balancing Air Passage that efficiently maintains airflow, along with a fan on demand that reduces energy consumption. The Voltage Reduction Device (VRD) aids in reducing open circuit voltage for safer operation. Experience reliable performance with key power electronic component protection and overcurrent and overheat protection.
Every purchase comes complete with a protective case and MMA leads, ensuring convenient storage and everything you need to get started. The Jasic EVO product stands as a testament to high-end functionality and safety, designed for the ultimate welding experience.
Discover peace of mind with our comprehensive 5-year warranty included. This extensive protection plan is specifically designed to provide you with the best possible backup, underlining our dedication to quality and customer satisfaction.
Key Features
• Rugged, ergonomic design
• ClearVision technology
• Intelligent synergic control
• Smart Lift TIG
• Adaptable wide voltage range
• Quick factory reset
• Anti-stick, adjustable hot start and arc force
• Dedicated wireless remote control (optional)
• Remote control receiver module (optional)
• Power factor correction (PFC), generator friendly
• ABAP: Active Balancing Air Passage
• Fan on demand
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection
• Complete with protective case and MMA leads
Technical Data
EA-160 ARC 160 PFC
Input voltage AC95-265V, 50/60 Hz
AC 115V AC 230V
No load voltage 78V
MMA
Rated input current 28.7A 22.6A
Ieff 14.4A 11.3A
Rated input power 3.3kVA 5kVA
Current range 20-110A 20-160A
Rated duty cycle @ 40ºC 25%
TIG
Rated input current 23.3A 14.0A
Ieff 11.7A 7A
Rated input power 2.2kVA 3.2kVA
Current range 10-120A 10-160A
Rated duty cycle @ 40ºC 25%
Efficiency 86%
Power factor 0.99
Idle state power MMA: 38.2W TIG: 7W
Protection class IP23S
Insulation class H
Dimensions LxWxH 413 x 150 x 311mm
Weight 7.2Kg
Recommended generator size 5kVA 7.5kVA
Standard Accessories

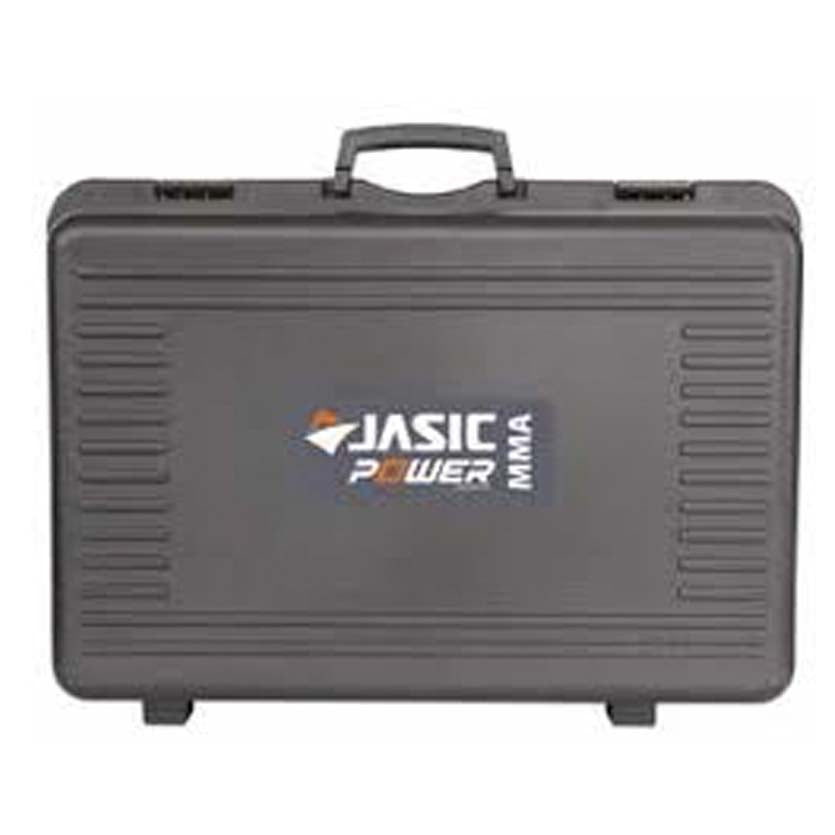

Protective Carry Case
MMA 3 Mtr Leads
Optional Accessories (p31)
Dedicated Wireless/Wired
Remote Control
Mini Remote
* Generator must have AVR
