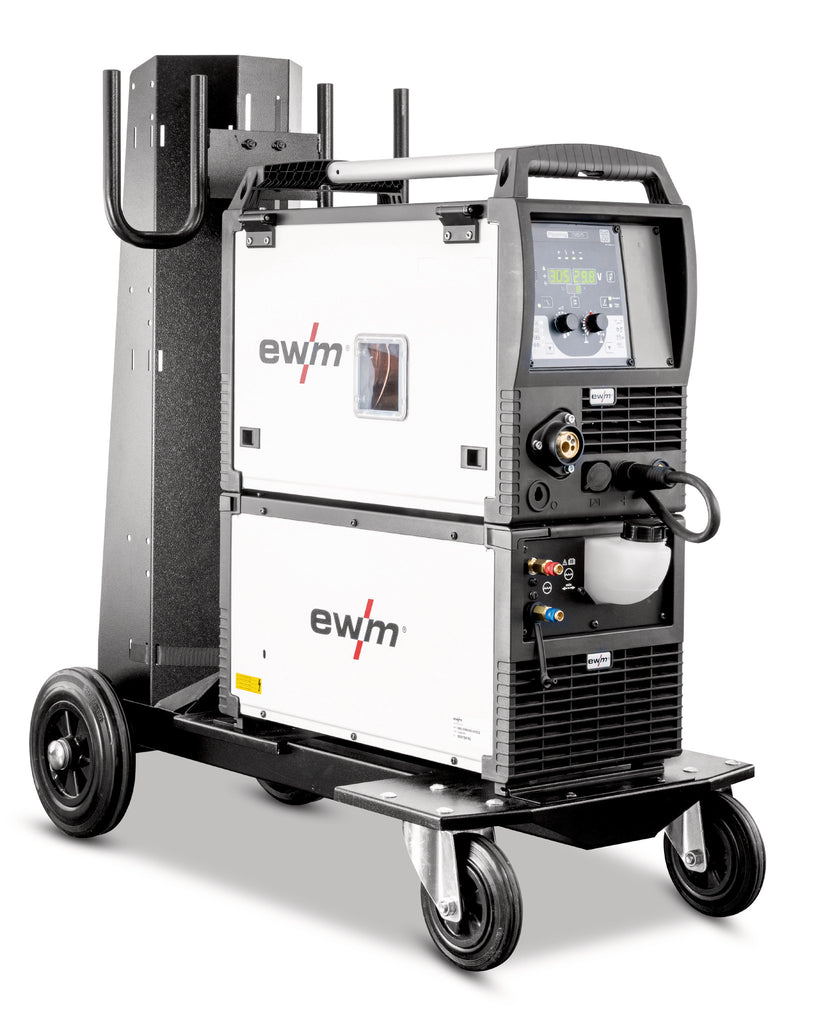

EWM 090-005697-00502 Picomig 305 puls TKM Water Cooled 400V, 300Amps
The price shown includes the following components:
- Multiprocessing MIG/MAG pulse welding machine, compact, portable, Euro torch connector
- Cooling unit with centrifugal pump,
- “blueCool” coolant to -10 °C (-14 °F), 5 l, 5 l
- Wire spool adapter B300,
- MIG/MAG welding torch, water-cooled, 4 m
- Workpiece lead with clamp, 350 A / 60 %, 50 mm²
- Gas hose, 2 m
- Pressure regulator with manometer, 30 l
- Transport cart (four wheels) for moving a power source, cooling unit or a tool box and one shielding gas cylinder, assembled
- Mains plug, assembled,

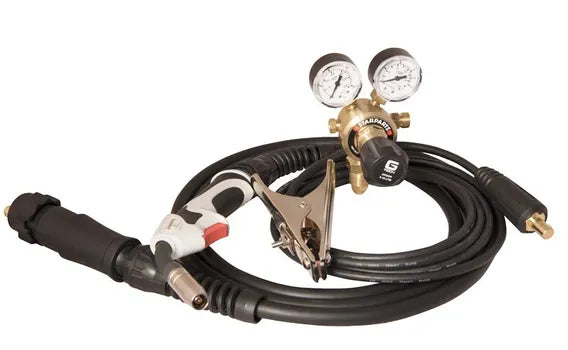

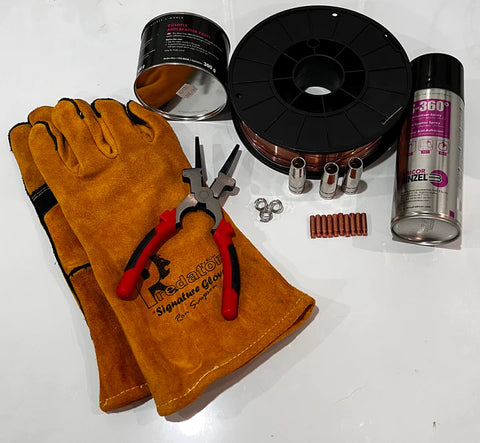

All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
- Multiprocessing inverter welding machine, pulse, with easy, one-knob operation and integrated wire feeder
- Welding procedures and functions
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- EWM forceArc/forceArc puls characteristics for unalloyed steel
- EWM rootArc/rootArc puls characteristics for unalloyed steel
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
- ewm Xnet also available via Xnet LAN/Wi-Fi gateway
- “Crater fill” end-crater filling function can be selected directly using a push-button on the control:
- At the end of the welding process, the set welding current is automatically lowered so that potential end-craters in the weld seam can be filled. Lowering the welding current also prevents penetration and cracks in the weld seam and material
- Your benefits
- No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
- Portable or can be carried on a trolley
- Comprehensive job list
- Choice of gas- or water-cooled operation
- No additional mains connection required for cooling unit. Module power supply via welding machine
- Connection capability for remote control
- High-precision, powerful EWM eFeed 4-roll wire feed mechanism for secure feeding of all solid and flux cored wires
- High open circuit voltage for excellent ignition characteristics
- Energy-saving thanks to high efficiency and standby function
- Easy, tool-free change of welding polarity
- Insulated wire space
- Delivery includes practical torch holder
- 5 m mains supply lead
-
Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
- Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
- “Crater fill” end-crater filling function can be selected directly using a push-button on the control:
- At the end of the welding process, the set welding current is automatically lowered so that potential end-craters in the weld seam can be filled. Lowering the welding current also prevents penetration and cracks in the weld seam and material
| Operation mode | One-knob operation |
| Welding process | MIG/MAG |
| MIG/MAG pulse | |
| TIG | |
| MMA | |
| Operating modes | Non-latched |
| Latched | |
| Resistance spot welding | |
| Interval | |
| Parameters in display | Welding current |
| Wire feed speed | |
| Plate thickness | |
| JOB number | |
| Error code | |
| Polarity display | |
| Number of JOBs | 50 |
| Functions | Wire burn-back |
| “Crater fill” end-crater fill |
-
Version
Picomig 305 puls
Setting range for welding current
5 A - 300 A
Duty cycle 40 °C
300 A / 35 %
240 A / 60 %
190 A / 100 %
Open circuit voltage
80 V
Mains tolerances (ex works)
-25 % up to +20 %
Mains frequency
50 Hz / 60 Hz
Recommended generator power
16.3 kVA
Power consumption Pi
22 W
Wire feed speed
0.5 m/min - 25 m/min
19.685 ipm - 984.253 ipm
Factory-installed roll equipment
1,0-1,2 mm UNI / Steel
Spool diameter
D200/D300
Torch connection
Euro torch connector
Protection classification
IP23
Test mark
EMC class
A
Dimensions (L x B x H)
636 mm x 298 mm x 482 mm
25 inch x 11.7 inch x 19 inch
Weight
29.5 kg / 65 lbs
Standards
IEC 60974-1, -5 and -10 CL.A
