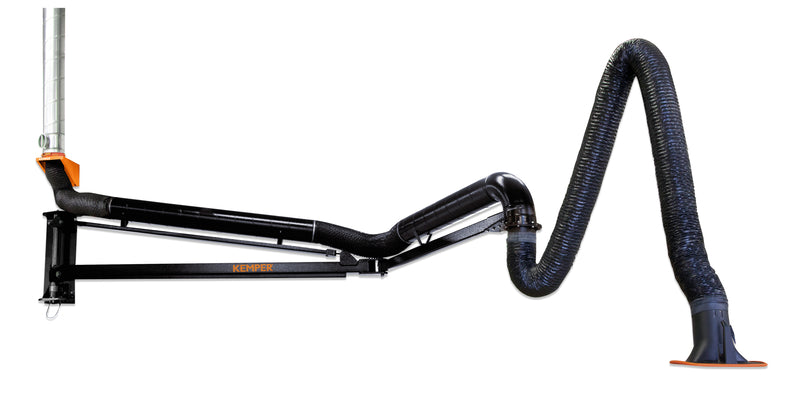

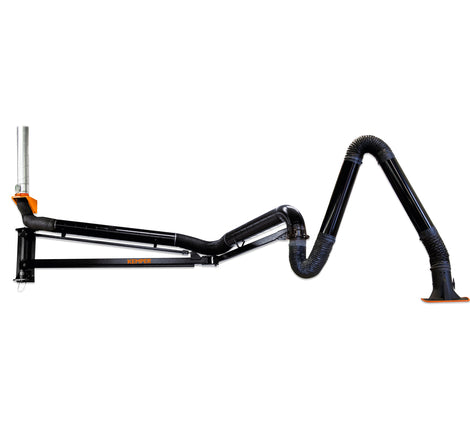

The KEMPER extraction arm permits a long reach. It is used either for a single work station in conjunction with a fan or for multi-user stations using tubes connected to a central extraction and filter system. The exhaust arm is designed for continuous use and is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.
7 to 10m rigid and flexible arm options available
Benefits
- Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
- Fast operation due to long reach and particularly flexible adjustment
- Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
Properties
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs
- Boom with integrated C-rail with carriage
- Exhaust arms up to 10 m (with boom)
Applications
- For connection to fans or central extraction systems
- High levels of smoke and particles
- Non-stop operation
- Welding fumes, gases, vapours, light dusts
- Large workpieces
Scope of Supply
- Exhaust arm with hood
- Boom
- Wall bracket
Variants
- Various arm lengths and versions
Basic data
| Weight | 198 kg |
Additional information
| Exhaust arm type | flexible & rigid options |
| Diameter extraction arm | 150 mm |
| Length of boom | 4 + 2 m |
| Length of exhaust arm | 3 to 4 m |
| Total length | 7 to 10m |
| Joints | 3 |
