GCE AHT (X20 MK 4/5) Heating Nozzles

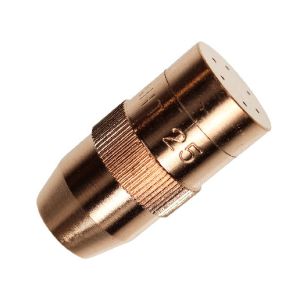

GCE AHT Heating Nozzles Take control of your heating projects with the industry-leading GCE AHT Heating Nozzles! These versatile nozzles, available in 25mm (52,000 BTU/H), 50mm (91,000 BTU/H), and 100mm (139,000 BTU/H) sizes, offer unparalleled heating performance for a wide range of applications. Manufactured by GCE, a trusted name in gas flow control equipment, these AHT nozzles are built to deliver exceptional quality and durability.

Features

• Precision Heating: Achieve accurate and efficient heating with a perfectly designed flame pattern
• Variable Heat Output: Choose from three sizes (25mm, 50mm, 100mm) to match the specific heat requirements of your project
• Durable Construction: Manufactured from high-quality materials for long-lasting performance
• Easy Installation: Designed for seamless integration with AHT necks and HD mixers (sold separately)
• Safe and Reliable: Comply with industry safety standards for peace of mind

Applications

• Acetylene Heating: Ideal for preheating metals, brazing, soldering, pipe bending, and glass forming
• Metalworking: Perfect for various metalworking applications requiring controlled heating
• Construction: Excellent for heating tasks in construction environments
• HVAC/R: Efficient for brazing and soldering in HVAC/R systems
• And More! The versatile AHT nozzles can be used in a wide range of industrial applications

GCE continues introducing the new torch design across the extensive Cutting & Welding product range. Now it´s time to present the GCE X20™ MK 4/5 ORIGINAL torch program.

The GCE X20™ MK 4/5 ORIGINAL is a high pressure, sturdily constructed and well-balanced welding and cutting torch replacing the MK 4/5, together with additional improved progressive features. Each component (shank, mixer, cutting attachment) is interchangeable with other leading makes of type 3/4/5 equipment. It has a new design and well-balanced front-mounted colour-coded control valves, employing stainless valve spindles. Providing fine adjustment and leak-free conditions. The shank is common to both welding and cutting attachment the same quick positive positioning and leak-free means of attachment being used for both. The GCE X20™ MK 4/5 ORIGINAL torch system and nozzles conform to the EN ISO 5172.

• Increased Efficiency: Achieve faster heating times and improved productivity
• Precise Control: Get the exact heat output you need for your project
• Reduced Costs: Durable construction minimises replacement needs
• Enhanced Safety: Comply with safety regulations and ensure operator well-being
• Unmatched Performance: Experience the superior quality and reliability of GCE AHT Heating Nozzles

Welding & Heating

• Designed for welding work from 1 mm to over 25 mm thickness using type GCE X20™ MK 4/5 ORIGINAL swaged nozzles sizes 1 - 90 ft³/h litres.
• The mixer seats on serrated toothed faces allowing the operator a selection of positive nozzle positioning through 360°.
• Can also be used for heating, with either acetylene or propane heating nozzles, together with a heating neck.

Cutting

• The cutting head is nozzle mixing, enabling the operator to use either acetylene or propane fuel gases by fitting the appropriate nozzle.
• A range of ANM and PNM nozzles are available for clean efficient cutting of material thickness from sheet metal to 150 mm.
• Its versatility allows gouging, flame cleaning etc., to be supplied to customer´s requirements.

Propane Super Heating

• Using a propane superheating mixer and 10" or 28" stainless steel superheating neck an intense heat output of up to 175 KW/h is obtained.
• Ideal for heating castings and similar large articles.

AHT Heating Nozzles

Datasheet
