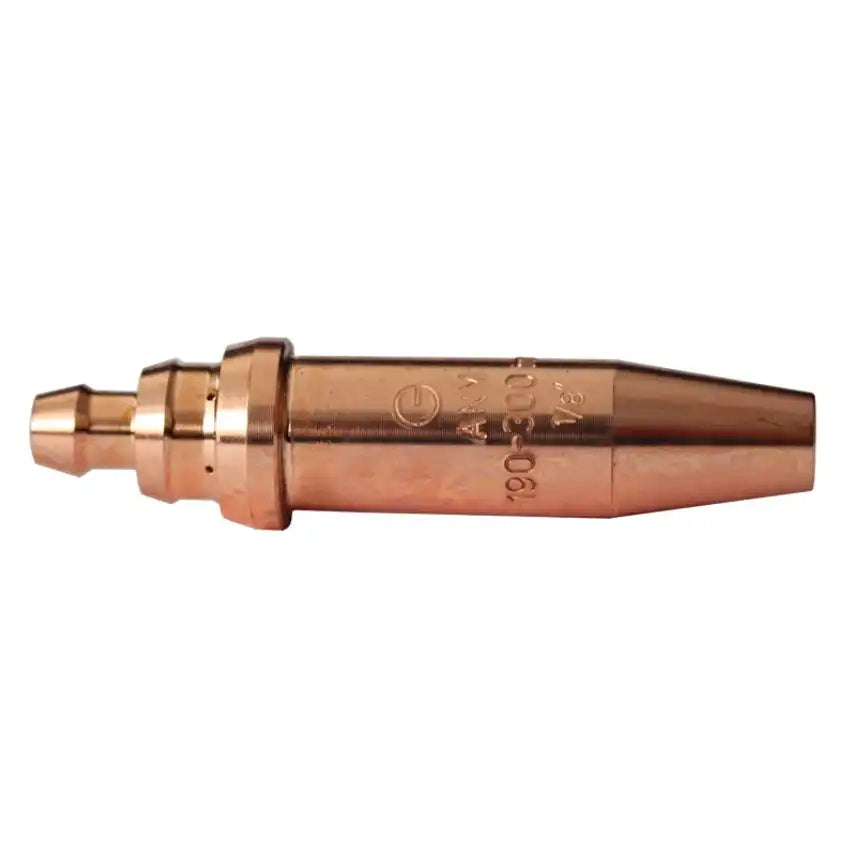

GCE (X20 MK) ANM Acetylene Cutting Nozzles
- Enhanced Cutting Quality: Achieve cleaner, more precise cuts with minimal slag, reducing post-cutting cleanup.
- Increased Productivity: Reliable performance and efficient gas utilisation lead to faster cutting operations.
- Superior Durability: The robust copper construction ensures a longer lifespan, reducing replacement frequency and operational costs.
- Optimal Safety: Designed to GCE Group’s rigorous safety standards, providing peace of mind during cutting operations.
- Versatility in Applications: A comprehensive range of sizes supports diverse cutting requirements, making them suitable for various projects and materials.
- Cost-Effectiveness: Long-lasting design and efficient gas use contribute to overall operational savings.
Precision, Performance, and Durability for Expert Oxy-Fuel Cutting
Improve your hand cutting operations with the GCE ANM Acetylene Cutting Nozzles, meticulously engineered for precision, reliability, and extended service life. As a crucial component in oxy-fuel cutting systems, these solid copper nozzles with a sophisticated nozzle mix design ensure optimal gas flow and flame stability, delivering clean, accurate cuts across various material thicknesses. Ideal for professional welders, fabricators, and metalworkers, the GCE ANM series embodies the pinnacle of cutting technology, guaranteeing consistent high-quality results.
GCE ANM Acetylene Cutting Nozzles Features
- Optimised Nozzle Mix Design: Ensures precise mixing of fuel gas acetylene & oxygen for a stable, high-performance cutting flame.
- Dedicated Acetylene Compatibility: Specifically designed and calibrated for use with acetylene gas, maximising cutting efficiency and safety.
- Robust Solid Copper Construction: Crafted from high-quality, durable copper, providing excellent heat dissipation and resistance to spatter, prolonging nozzle life.
- Ergonomic Hand Cutting Application: Engineered for manual oxy-acetylene cutting torch offering control and manoeuvrability for intricate and demanding tasks.
- Extensive Size Range: Available in multiple sizes to accommodate diverse cutting requirements, from thin sheets to thick steel plates.
| TECHNICAL DATA | Convex | |||||
| 321 | 401 | |||||
| Three phase input 50/60 Hz | V | +20% | 400 | |||
| -20% | ||||||
| Input Power @ I2 Max | kVA | 13 | 17,8 | |||
| Delayed Fuse (l eff) | A | 20 | 25 | |||
| Power Factor / cos φ | 0,87/0,99 | 0,90/0,99 | ||||
| Efficiency Degree | 0,87 | |||||
| Open circuit voltage | V | 63 | 63 | |||
| Current range | A | 10 – 320 | 10-400 | |||
| Duty cycle at (40°C) | A 100% | 280 | 300 | |||
| A 60% | 300 | 350 | ||||
| A % | 320(40%) | 400(40%) | ||||
| Wires | Ø mm | 0,6 – 1,2 | 0,6 – 1,2 | |||
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | |||||
 |
||||||
| Protection Class | IP | 23S | ||||
| Insulation Class | H | |||||
| Dimensions |
 mm |
660 | ||||
 mm |
290 | |||||
 mm |
515 | |||||
| Weight | kg | 41 | 42 | |||
| Art. Nr. |
Thickness mm (") |
Size | Acetylene | Propane | ||
|
Pressure Bar (Psi) |
Flow rate (m3/h) |
Pressure Bar (Psi) |
Flow rate (m3/h) |
|||
| 0768554 | 3-6 (0-1/4“) | 1/32“ | 0,2 (2) | 0,3 | 2 (25) | 1,25 |
| 0768555 | 5-12 (1/4-1/2“) |
3/64“ | 0,2-0,3 (2-3) |
0,5 | 2 (30) | 2,3 |
| 0768556 | 10-75 (1-3“) | 1/16“ | 0,2 (2) | 0,45 | 3-4 (50-60) |
4,5-5,45 |
| 0768557 | 70-100 (3-4“) | 5/64“ | 0,2 (2) | 0,79 | 3-5 (45-70) |
7,4-9,8 |
