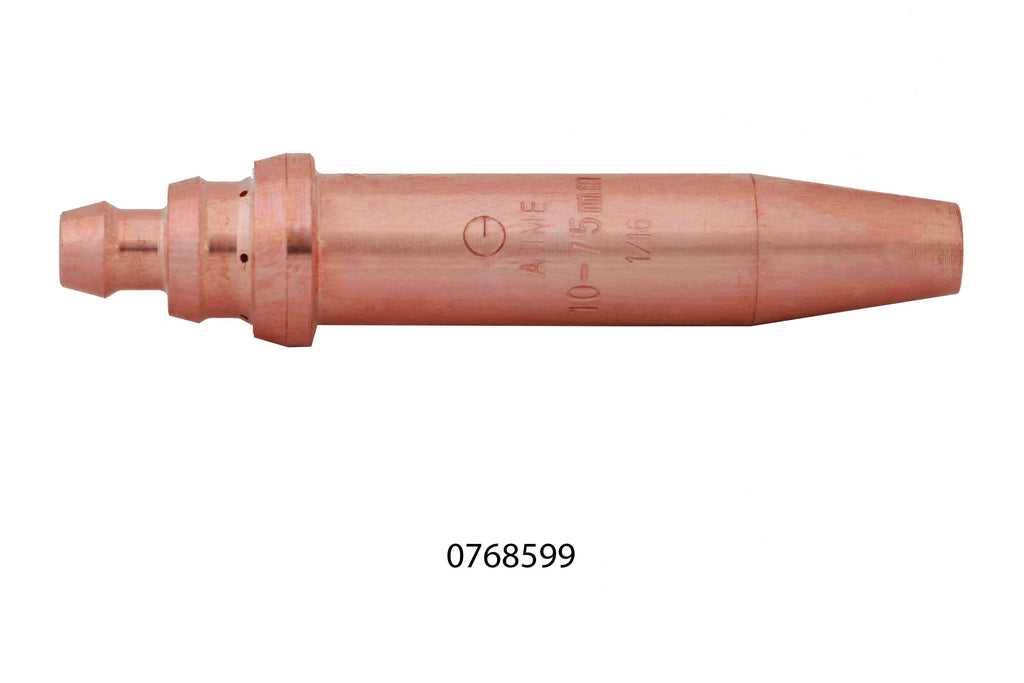

GCE ANME Extended Acetylene Cutting Nozzles
- Enhanced Cutting Precision: Achieve consistently clean and accurate cuts with optimal gas flow and flame stability.
- Increased Durability & Longevity: Robust copper construction reduces replacement frequency, lowering operational costs.
- Superior Safety: Engineered for maximum backfire resistance, promoting a safer working environment.
- Improved Accessibility: Extended nozzle length allows for easier operation in challenging and confined spaces.
- Cost-Effective Operation: Efficient gas utilisation and a long-lasting design contribute to overall savings.
- Versatility: A wide range of sizes supports diverse cutting requirements across various projects and material thicknesses.
The GCE ANME Extended Acetylene Cutting Nozzles are meticulously engineered for professional oxy-fuel cutting applications, offering unparalleled precision, exceptional durability, and extended reach. As a critical component in any oxy-acetylene cutting system, these nozzles are expertly crafted from high-grade tellurium copper with a solid, one-piece construction, ensuring longevity and consistent high performance in demanding industrial environments. Their optimised nozzle mix design facilitates precise blending of fuel gas and oxygen, yielding a stable, high-performance cutting flame for clean, accurate cuts across a comprehensive range of material thicknesses. Designed to meet rigorous safety standards, GCE ANME Extended Nozzles provide enhanced backfire resistance, making them a trustworthy choice for welders, fabricators, and metalworkers who demand both efficiency and safety. The extended length of these nozzles, typically 87mm or 88mm, provides superior accessibility to hard-to-reach areas, improving operational versatility and efficiency in diverse cutting tasks.
Features
- Solid Copper Construction: Manufactured from high-grade tellurium copper for superior durability, excellent heat dissipation, and resistance to spatter.
- Optimised Nozzle Mix Design: Ensures precise mixing of acetylene and oxygen for a stable, high-performance flame.
- Dedicated Acetylene Compatibility: Specifically designed and calibrated for optimal use with acetylene gas, maximising cutting efficiency and safety.
- Extended Length Design: Longer than standard ANM nozzles (typically 87mm/88mm), providing improved access to intricate or difficult-to-reach cutting areas and enhanced backfire resistance.
- “Diamond” Turned Seats: Guarantees a secure metal-to-metal connection for maximum backfire resistance and operational safety.
- Extensive Size Range: Available in multiple sizes (e.g., 1/32″ to 1/8″) to accommodate diverse cutting requirements, from thin sheets (3-6mm) to thick steel plates (up to 300mm).
- BS EN ISO 5172 Compliant: Manufactured to recognised industry standards for assured quality and safety.
- Compatibility: Designed for use with HD (Type 3, 4, and 5) style torch equipment, including GCE X20™ MK 4/5 ORIGINAL torch systems and NM 18/90 or NM 27/90 universal cutters.
| Art. Nr. | Thickness mm (") |
Size | Acetylene | Oxygen | ||
|
Pressure Bar (Psi) |
Flow rate (m3/h) |
Pressure Bar (Psi) |
Flow rate (m3/h) |
|||
| 0768670 | 3-6 (0-1/4“) | 1/32“ | 0,3 (4) | 0,3 | 2,5-3,5 (40-50) |
1,25-1,65 |
| 0768635 | 5-12 (1/4-1/2“) | 3/64“ | 0,3 (4) | 0,5 | 2,5-3,5 (40-50) |
1,25-1,65 |
| 0768599 | 10-75 (1/2-3“) | 1/16“ | 0,3 (4) | 0,45 | 3,5-4,5 (50-65) |
3,2-4,45 |
| 0768636 | 70-100 (3-4“) | 5/64“ | 0,5 (7) | 0,6 | 4,5-5,5 (65-80) |
8,4-9,8 |
Applications
- General Metal Fabrication: Essential for cutting various metal components in workshops and manufacturing facilities.
- Shipbuilding and Marine Construction: Crucial for precise cutting of steel plates and profiles.
- Construction: Employed for on-site metal cutting, structural modifications, and demolition work.
- Steel Fabrication: Ideal for a wide range of steel processing tasks, from initial cuts to intricate shape creation.
- Maintenance and Repair: Perfect for cutting worn or damaged metal parts in industrial machinery and infrastructure.
- Automotive Repair: Used for cutting metal components in vehicle restoration and repair.
- Demolition: Effective for dismantling metal structures and components.
- Machine Cutting: Frequently used in cutting machines in the UK due to their extended length and backfire resistance.
