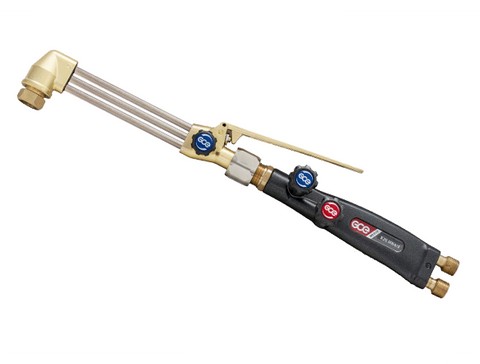

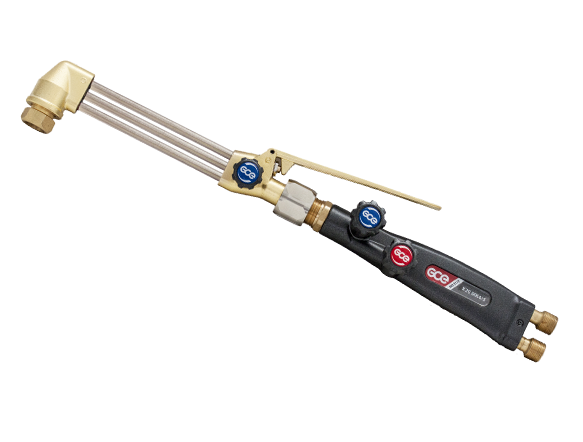

GCE X20 MK4/5 Combined Welding & Cutting Torch for Medium Duty Applications.
Torch G0766241/ Cutting Attachment G0766242

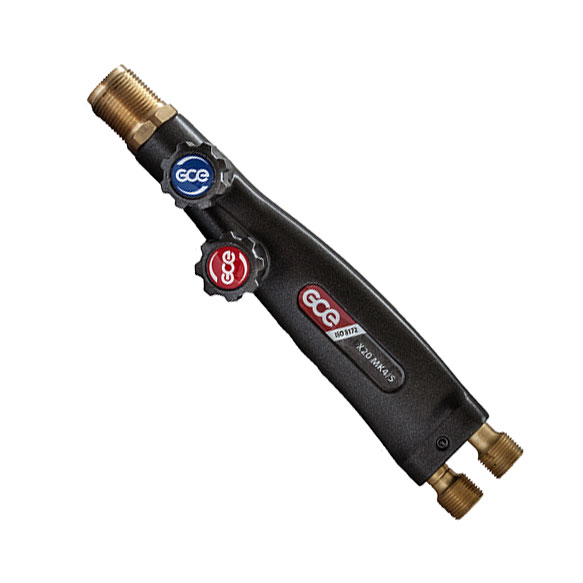

The GCE X20 Mk 4/5 Original Cutting Torch Shank represents the pinnacle of gas equipment engineering, designed for discerning professionals in the welding and fabrication industries. As a crucial component of the GCE X20™ MK 4/5 ORIGINAL torch system, this high-pressure, sturdily constructed shank delivers unparalleled precision, versatility, and safety for a comprehensive range of medium-duty metalworking tasks.
Engineered with expertise and built for longevity, the GCE X20 Mk 4/5 Original Cutting Torch Shank ensures reliable, leak-free operation and seamless integration with other leading Type 3/4/5 equipment. Its innovative design, featuring well-balanced, front-mounted, colour-coded control valves with stainless steel spindles, provides fine adjustment and exceptional user control. Conforming to the stringent EN ISO 5172 standards, this torch shank is a testament to GCE’s commitment to quality, safety, and operational excellence.
Features : -
Welding & Heating
- Designed for welding work from 1 mm to over 25 mm thickness using type GCE X20™ MK 4/5 ORIGINAL swaged nozzles sizes 1 - 90 ft3/h litres.
- The mixer seats on serrated toothed faces allowing the operator a selection of positive nozzle positioning through 360°.
- Can also be used for heating, with either acetylene or propane heating nozzles, together with a heating neck.
Cutting
- The cutting head is nozzle mixing, enabling the operator to use either acetylene or propane fuel gases by fitting the appropriate nozzle.
- A range of ANM and PNM nozzles are available for clean efficient cutting of material thickness from sheet metal to 150 mm.
- Its versatility allows gouging, flame cleaning etc., to be supplied to customer´s requirements.
Propane Super Heating
- Using a propane superheating mixer and 10" or 28" stainless steel superheating neck an intense heat output of up to 175 KW/h is obtained.
- Ideal for heating castings and similar large articles.
Specifications
| Hose connections: | 3/8” (other threads available on request) |
| Welding capacity: | 25mm |
| Cutting capacity: | 150mm |
| Welding nozzles: | Type 2/3/4/5 Swaged Welding Nozzles Sizes 1-90 |
| Cutting nozzles: | ANM (Acetylene) Cutting Nozzles |
| PNM (Propane) Cutting Nozzles | |
| ANME (Acetylene) Extended Cutting Nozzles | |
| PNME (Propane) Extended Cutting Nozzles | |
| FGA | |
| Heating nozzles: | AHT (Acetylene) Heating Nozzles |
| Super heating nozzles: | Super Heating Nozzles (Propane) Sizes 1H-5H |
Inlet Connection: G3/8 x G3/8″ LH
Outlet Connection: 15/16″x16 RN
Applications
The GCE X20 Mk 4/5 Original Cutting Torch Shank is engineered for a diverse array of metal fabrication applications, including:
- Precision Oxy-Fuel Cutting: Capable of clean, efficient cutting of materials ranging from sheet metal to heavy plates up to 150 mm thickness (with compatible ANM, PNM, ANME, PNME nozzles).
- Professional Welding Operations: Designed for welding work on materials from 1 mm to over 25 mm thickness utilising GCE X20™ Mk 4/5 Original swaged nozzles (sizes 1-90).
- Industrial Heating: Adaptable for heating applications with acetylene or propane heating nozzles and appropriate heating necks, including high-intensity propane superheating (up to 175 KW/h) for large castings and similar articles.
- Metal Preparation: Ideal for specialized tasks such as gouging (effortlessly removing unwanted welds and surface imperfections) and flame cleaning (preparing metal surfaces for welding or painting).
Torch
| Art. Nr. | Inlet connection | Outlet connection |
| G0766241 | G3/8 x G3/8" LH | 15/16"x16 RN |
Cutting Attachment
| Art. Nr. | Type | Gas | Version | Nozzle type |
| G0766242 | nozzle mix | A/P | Lever | ANM, ANME, PNM, PNME, FGA |
