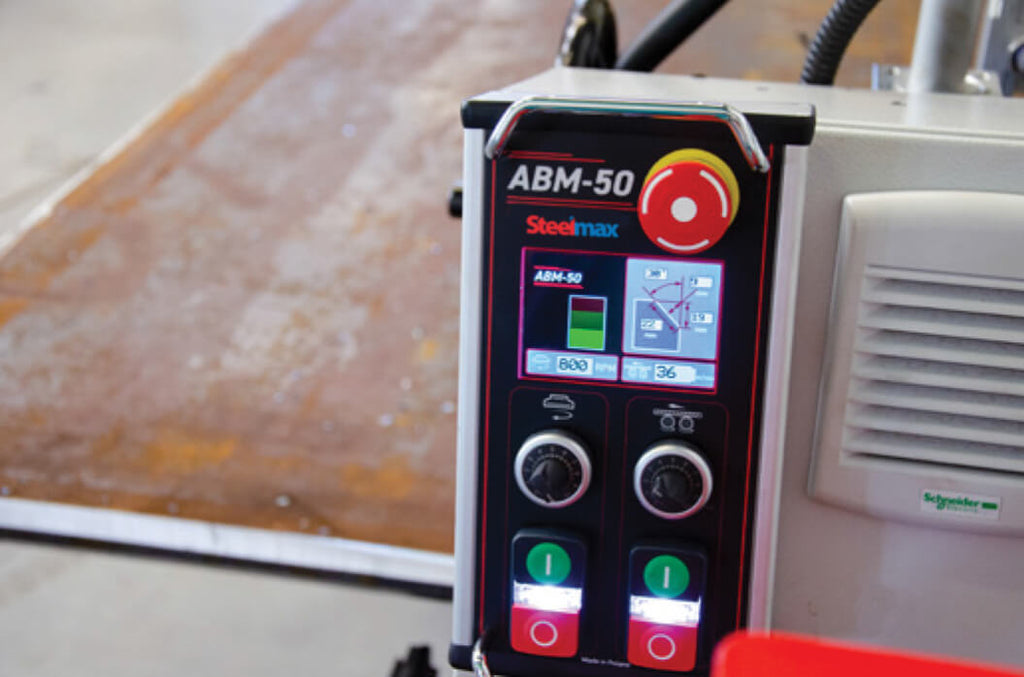

Featuring unique LCD display remote control

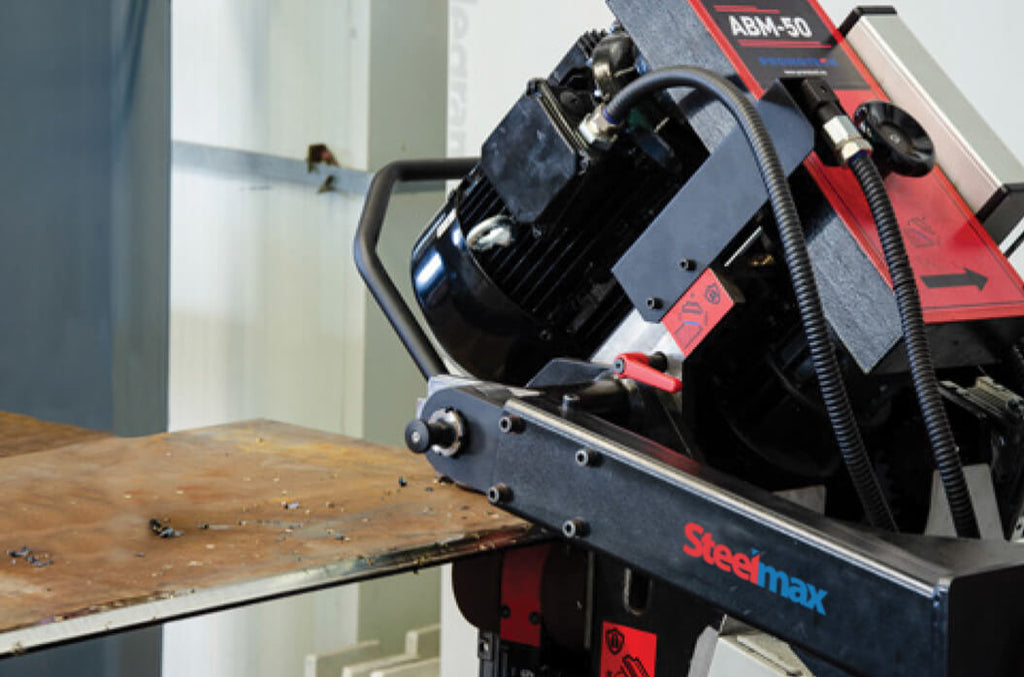

ABM50 produces accurate high-quality, double-sided bevels without thermal distortion or creation of a heat-affected zone on plate thickness range 8-80 mm (15/16” – 3 1/8”), using a purpose-designed bevelling head with eight 4-sided indexable cutting inserts. Continuously adjustable bevel angle between 15 and 60 degrees (for both top and bottom bevelling) requires no tooling to change.

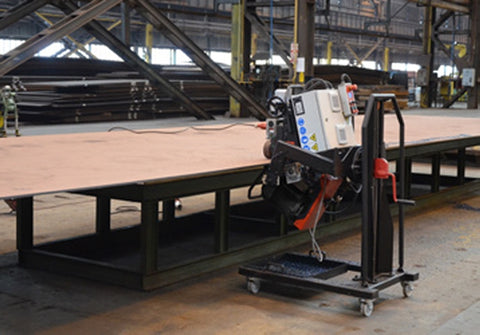

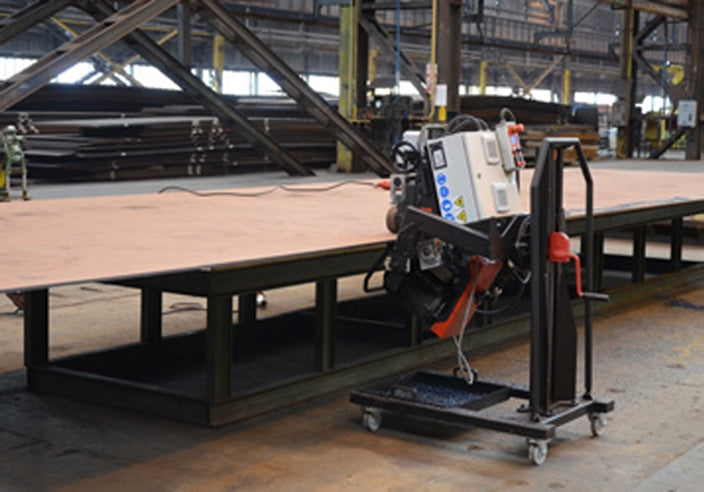

ABM-50 can perform bevelling along steel plate’s edge eliminating hard physical work of the operator. The maximum bevel at 45 degrees is up to 50 mm (2”).
It can create a double-sided bevel eliminating the need to turn a plate over.
Precise adjustment of spindle speed and feed rate to optimize cutting conditions depending on sort of material grade incl. stainless steel, alloys and aluminium.
Features
- Self-feeding for consistent bevel geometry from end-to-end

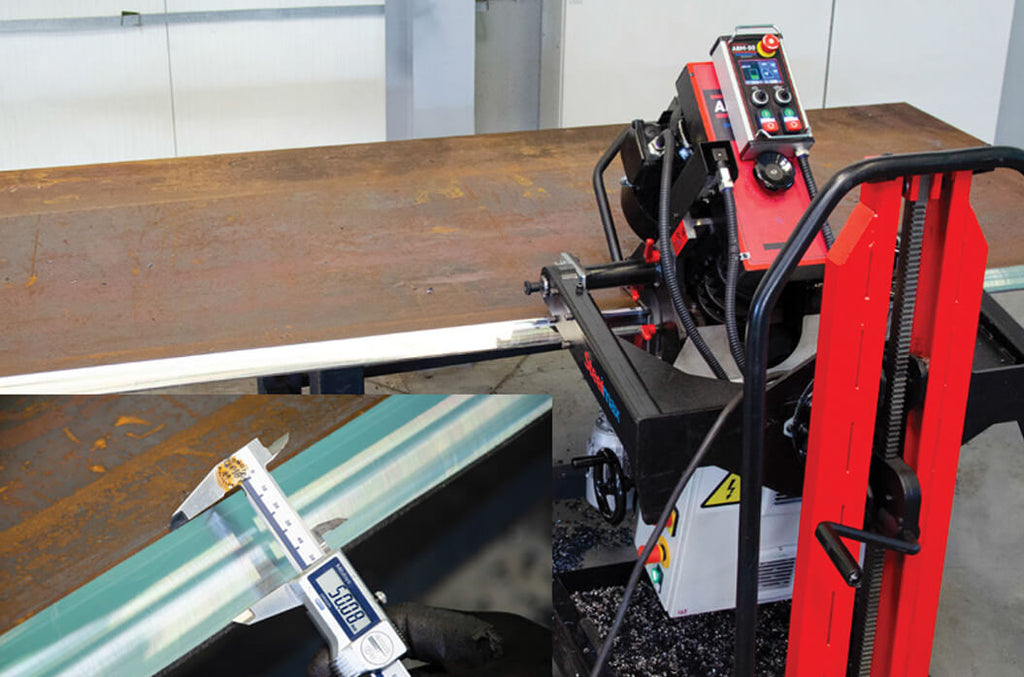

- Real-time measurement and on-screen display of exact bevel geometry and milling parameters
- Variable spindle speed for milling ferrous and non-ferrous materials including high tensile strength materials
- 180° inversion allows for quick and easy creation of double-sided bevels

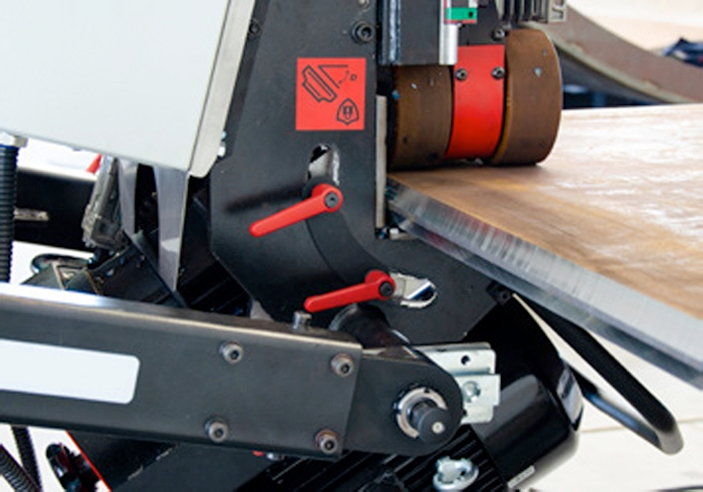

- Rotary milling head with carbide inserts produces an accurate, high-quality finish without thermal distortion that is weld ready
- Built-in overload protection
- Floating trolley compensates for uneven floors

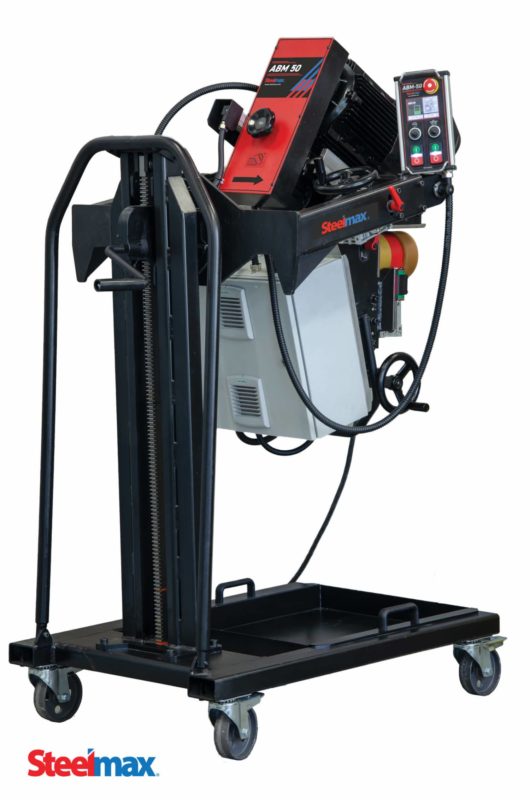

- Heavy Duty Portable Machine that can easily be moved throughout the shop
No the need to rotate or flip heavy material that reduces workpiece handling costs and improves shop safety.
