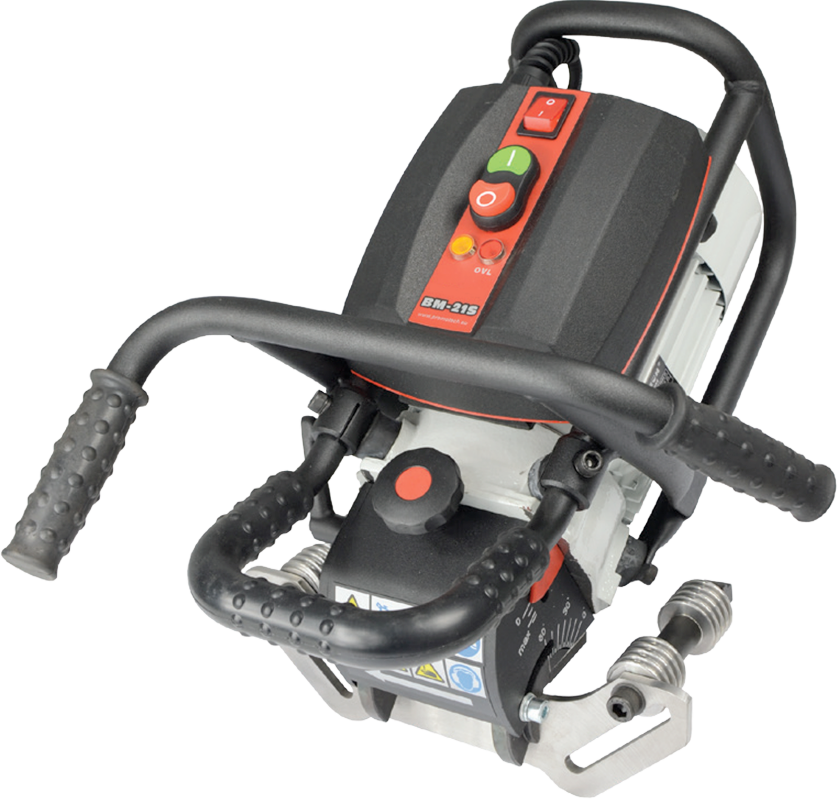

Stainless steel plate and pipe bevelling machine designed for creating a weld prep-ready edge with ease and accuracy.
BM21-S is designed for bevelling edges of plates and pipes made of stainless steels. Its impressive features include a low-speed motor suitable for machining stainless steel and guide plate with guide rolls made of stainless steel. Unlike flame or plasma cut weld preparation, BM21-S produces no heat-affected zone or distortion of the workpiece.
Plate bevelling/Plate facing-off/Pipe bevelling/Stainless steel bevelling/Continuous bevel angle and width adjustment
The machine enables to bevel sheet edges as well as pipe edges with diameters from 150 mm (6’’) to 300 mm (12’’) in 0–60° range with maximum bevel width of 21 mm (13/16’’). When equipped with an optional guide, BM-21S allows working on pipes with diameters over 300 mm (12’’).
Features
- Single milling head equipped with 10 square inserts, simplifying the matching process
- Fast and easy exchange of insert with no need for special adjustments
- Extending work range from 0° to 60° with continuous angle adjustment
- Easy setting of bevel angle and width
- Vibration insulation provides added protection for both the user and the machine
- One universal guide plate bevelling both plates and pipes which replaces 3 different attachments used with the BM20
Specification
Motor: 1.6kW
Maximum Bevel Width: 21mm
Motor Speed 1560 RPM
Angle Range: 0-60 Degrees with continuous angle adjustment
Tooling: Integrated milling head with 10 square adjustments
Weight: 23Kg
Power Supply: 110V
