Jasic JM-272S 230V, 270Amps

  • Sale
  • £2,130.80
  • Regular price £3,044.00

Excludes VAT

JM-272S 230V, 270Amps MIG272S Multi Process Separate 5M Interleads Package

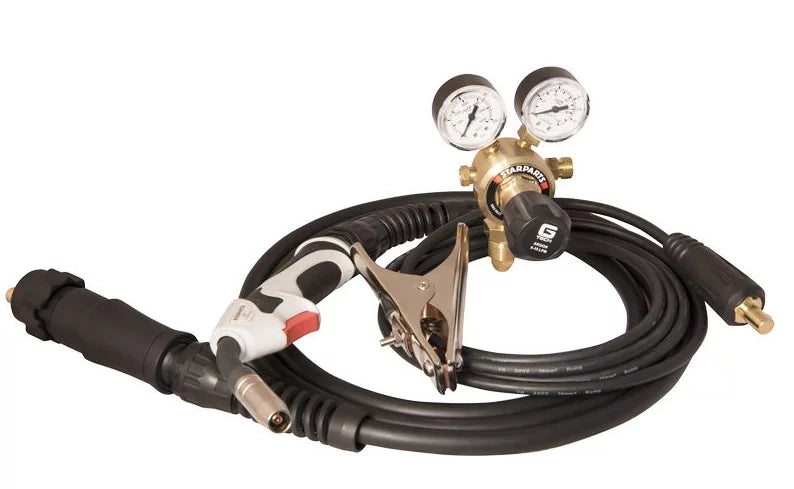

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers  16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin

Advanced single phase inverter providing rugged, reliable performance

The Jasic MIG 270 Separate inverter welder is equipped with powerful IGBT components, a digital A/V display and multi process capabilities.

This modular inverter package offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.

This high quality 230V MIG welder delivers an impressive 270 amps at 30% duty cycle, making it an excellent choice for single phase applications.

Technical Data Input Voltage AC 230V - 50/60 Hz Ieff (A) 28.9 Input Power (kVA) 12.1 Voltage Adjustment Range (V) 11 - 29 Current Range (A) 30 - 270 Duty Cycle @ 40°C 270A @ 30% No-Load Voltage (V) 54 Wire Speed (m/min) 0 - 16 Efficiency (%) 85 Power Factor 0.75 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 1020 x 505 x 1460 Weight (Kg) 101

Key Features • Single phase IGBT inverter • High powered 230V machine • Digital Amp & Voltmeter • 4 roll wire feed unit • High Duty Cycle - single phase inverter • Advanced control circuitry • Suitable for 0.6, 0.8, 1.0 and 1.2mm welding wire • Burn back control & wire inching • 2T/4T trigger function • Power & status LED’s • Gas check function • Variable inductance • Inverter trolley takes full size gas bottle • MIG/MAG/MMA

Brochures & Manuals

Sales Leaflet

Operator Manual

MIG Welding Guide

MIG Inverter Selection Guide
