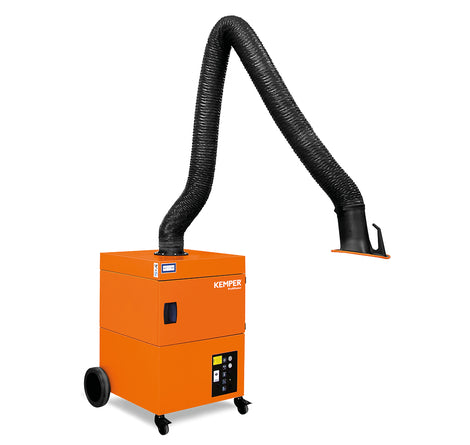

PROFIMASTER WELDING SMOKE FILTER UNIT
Welding smoke filter unit in robust quality with high capacity filter W3 3metre flexible arm
ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The rotating and swiveling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding.
Applications Suitable for all materials, including high-alloy steel Low to medium levels of smoke and dust Occasional to frequent use Benefits Safe operation by rotation field control Maintenance door allows easy filter change Exhaust arm requires less adjustment due to flowoptimised exhaust hood design Increased safety due to filter monitoring Properties Exhaust arm up to 4 m Rotating exhaust hood Accessories Automatic start-stop.
Technical Data Filter Filter stages 2 Filter method Storage Filter Filter surface 17 m² Type of filter Filter cassette Filter material Non-woven fibre Filter efficiency > 99.5 % Filter class E12 Additional filters Pre-filter Basic data Extraction capacity 1100 m³/h Maximum vacuum 2100 Pa Dimensions (w x t x h) 797 x 828 x 977 mm Weight 109 kg Motor power 1.1 kW Power supply 3 x 400 V / 50 Hz Rated current 2.3 A Control voltage 24 V, DC Noise level 72 dB(A) Additional information IFA-Certification W3-Approved Fan type Radial fan Quantity of extraction arms 1 Exhaust arm type flexible exhaust arm Diameter extraction arm 150 mm Length of exhaust arm 3 m.
