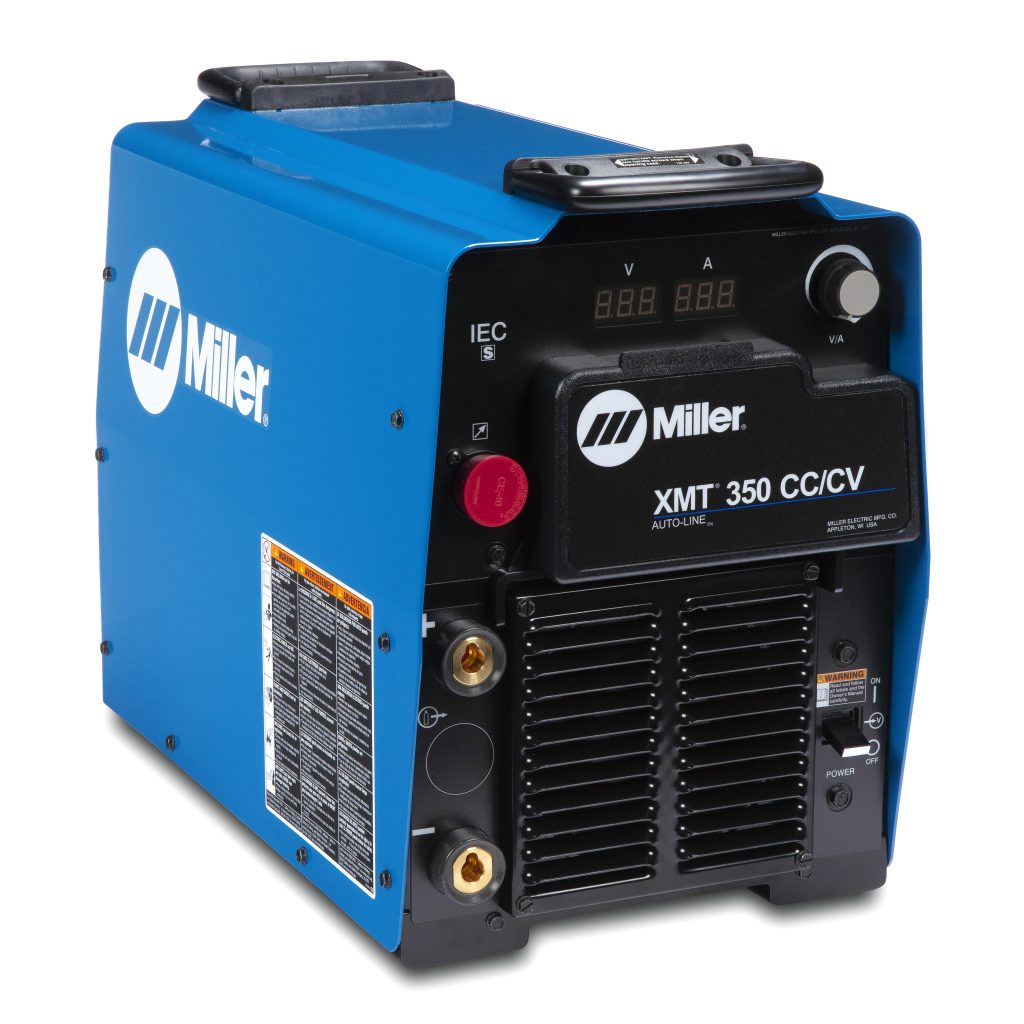

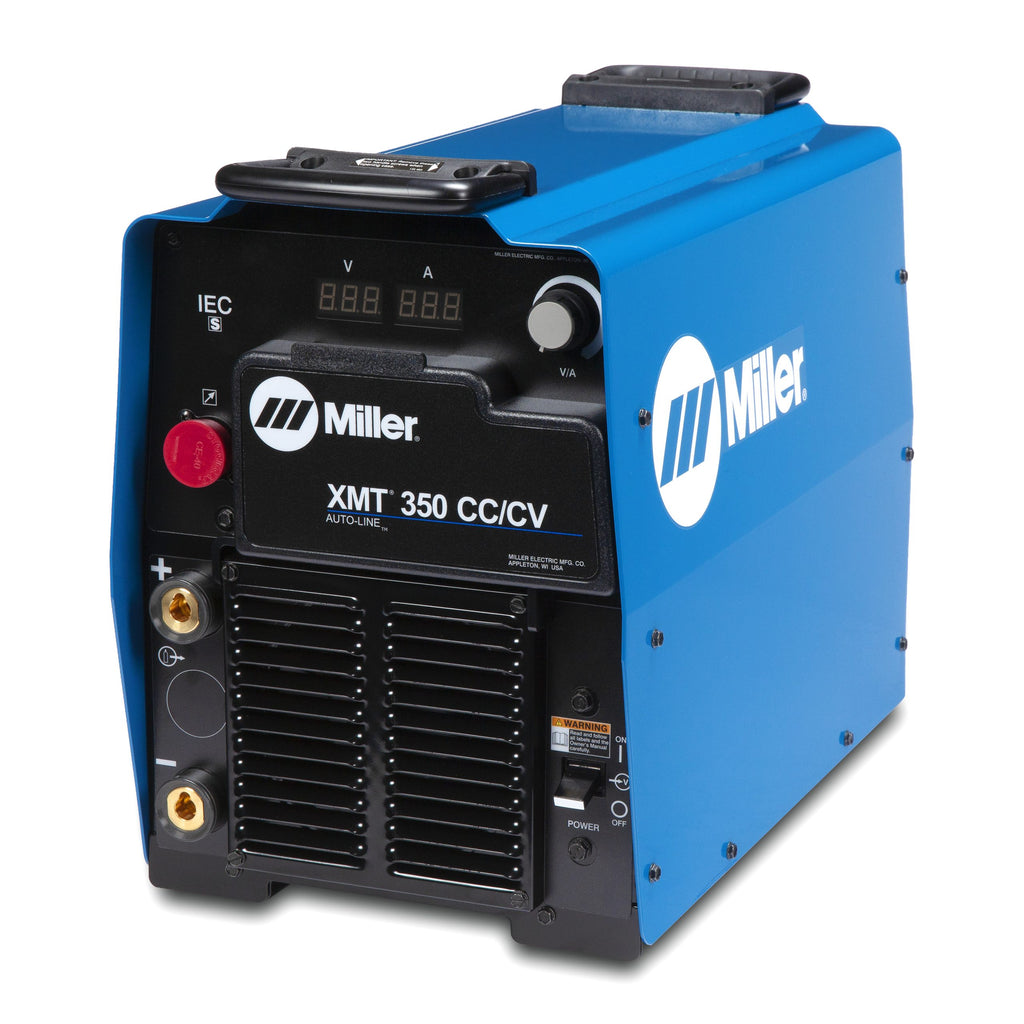

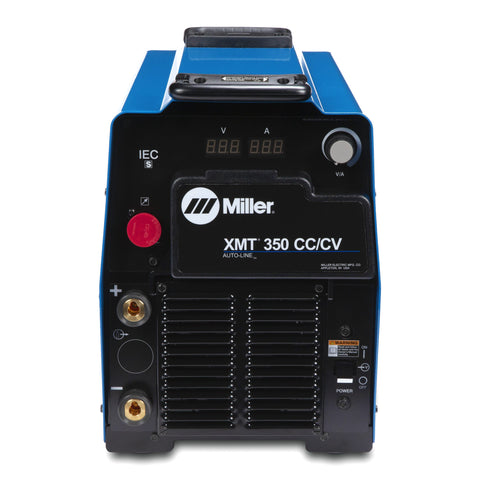

Miller 907161012 XMT® 350 CC/CV Multiprocess Welding Machine 400V
Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT® 350 CC/CV is the most popular model for its flexibility and simplicity. Outstanding multi-process inverter with built-in features providing the ultimate in productivity. Auto-Line provides link-free primary power operation. Inverter arc control technology provides greater puddle control for superior 6010 Stick electrode performance and outstanding MIG weld performance. The lightweight, aerospace-grade aluminium case offers protection with the benefit of reduced weight. Large, dual digital meters are easy to view and are pre-settable to ease setting weld output.

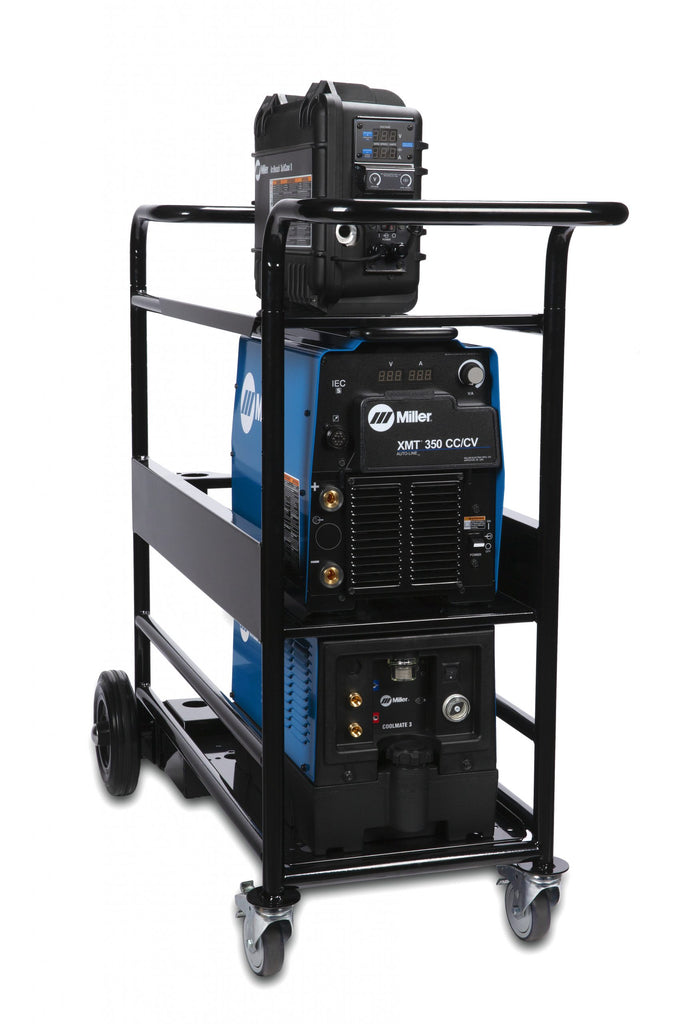

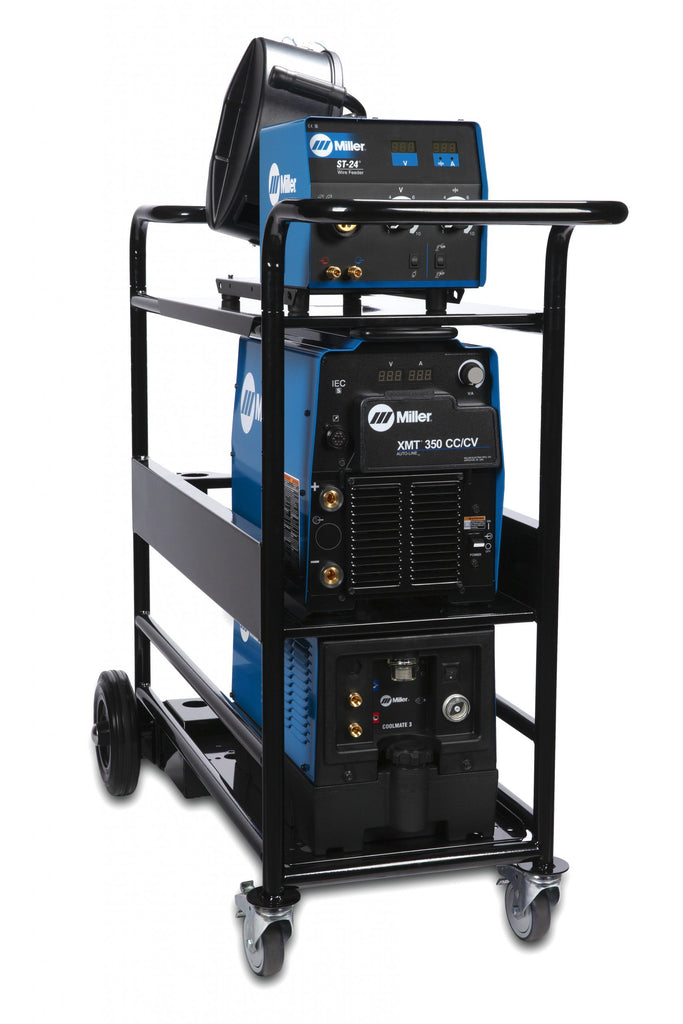

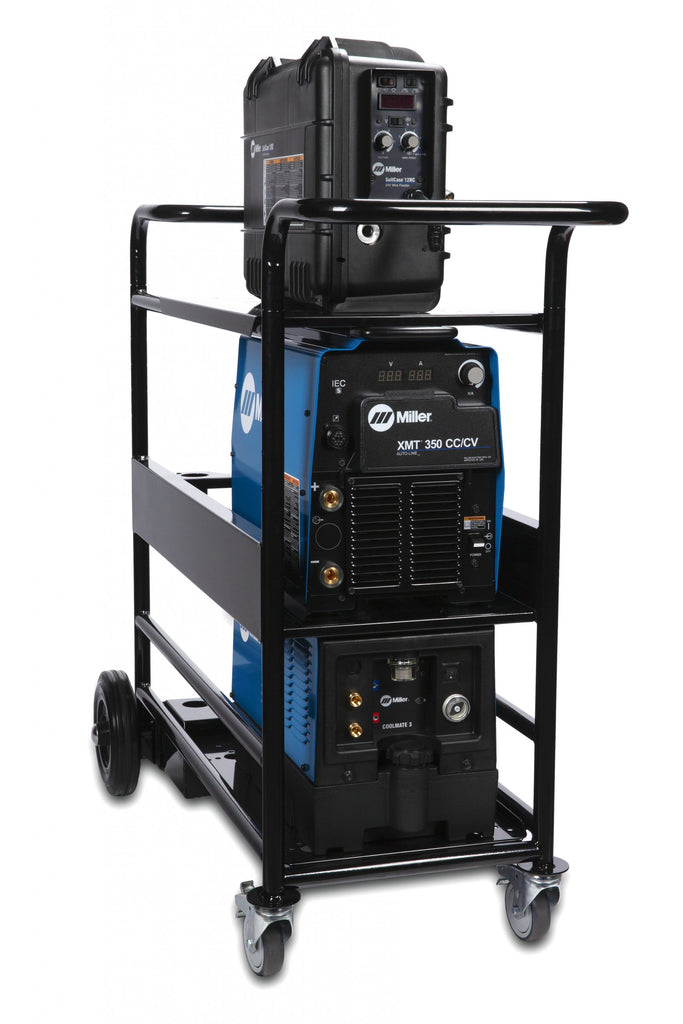

Water-cooled package includes an XMT 350 CC/CV Power source, 4.5m Bernard T-Gun water cooled mig torch, running gear designed for the XMT 350, Coolmate 3 water cooler, 3 x 3.78l of Low Conductivity Coolant, ST-24WD Wire Feeder with 1.2mm V-Groove Drive Roll Kit, 400A 5m ground cable & 10m interconnection cable.
Air-cooled package includes XMT 350 CC/CV Power source, 4.5 Bernard Q300 air cooled mig gun, ST-24WD Wire Feeder with 1.2mm V-Groove Drive Roll Kit, XMT 350 running gear, 400A 5m ground cable & 10m interconnection cable.
Features
- Wind Tunnel Technology™ protects electrical components and PC boards from contamination.
- Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- Lift-Arc™ allows TIG starting without the use of high frequency. Starts the arc without contaminating the weld with tungsten.
- Adaptive Hot Start™ increases the output amperage at the start of the weld if necessary, reducing electrode sticking.
- Process selector switch reduces the number of control setup combi nations without reducing any features.
- Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
- Large, dual digital meters are easy to view and are pre-settable to ease setting weld output.
- Auto-Line™ power management technology allows for any input voltage hookup (230–575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
- Built-in pulsed MIG capabilities
- Advanced arc control enables an improved pulse welding arc. The operator has more control over puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider range of material thickness.
- SharpArc® controls the arc in pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.
Processes
- MIG (GMAW)
- Pulsed MIG (GMAW-P)*
- Flux-cored (FCAW)
- Stick (SMAW)
- TIG (GTAW)
- Air carbon arc (CAC-A) cutting and gouging
- Rated: 6 mm carbons
- *MPa model only
Specifications
| Title | XMT® 350 CC/CV |
| Industries Interests | Construction Shipbuilding Railroad Truck/trailer manufacturing Fabrication Repair shops Rental fleets Power generation plants |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires |
| Input Voltage | 230 – 575 V |
| Input Phase | 3-phase power |
| Input Hz | 50/60 Hz |
| Amperage Range | 5–425 A |
| Current Type | |
| Rated Output | 275 A at 100% duty cycle, 350 A at 60% duty cycle |
| Max Open Circuit Voltage | 75 VDC |
| Portability | |
| Weld Output | CC/CV |
| Net Width | 318 mm (12.5 in.) |
| Net Height | 432 mm (17 in.) |
| Net Length | 610 mm (24 in.) |
| Net Weight | 36.3 kg (80 lb.) without aux. pwr. 43 kg (94.8 lb.) with aux. pwr. |
| Warranty | 3 Years Miller’s True Blue Warranty |
