Miller 907819002 Dynasty® 300 AC/DC Tig Welding Machine
The Dynasty 300 Multiprocess, paired with an ArcReach® SuitCase® feeder, provides a superior solution for all portable applications. With multiprocess capabilities and features like Auto-Line™, AC TIG, pulse and highfrequency arc starts, the Dynasty 300 Multiprocess is the most versatile, portable machine in its class.
Unleash precision welding with the Miller Dynasty 300 AC/DC Tig Welder 2023, Miller's latest in cutting-edge technology. Boasting a robust 300 amp AC/DC capacity with a 60% duty cycle, this professional welder is equipped for excellence.
Thanks to Miller Auto Line technology, the Dynasty 300 adapts seamlessly to any voltage – from 110v to 415v. Achieve a potent 150 amp output on 110v and a full 300 amp output on all other voltages.
Portable yet powerful, this welder features workshop-grade controls, including slope and gas controls, Pulser up to 500 HZ, AC balance from 30-99%, AC frequency from 20-400 HZ, and four Aluminium waveforms. Tailor your welding experience with independent or fixed Electrode Negative and Electrode Positive controls.

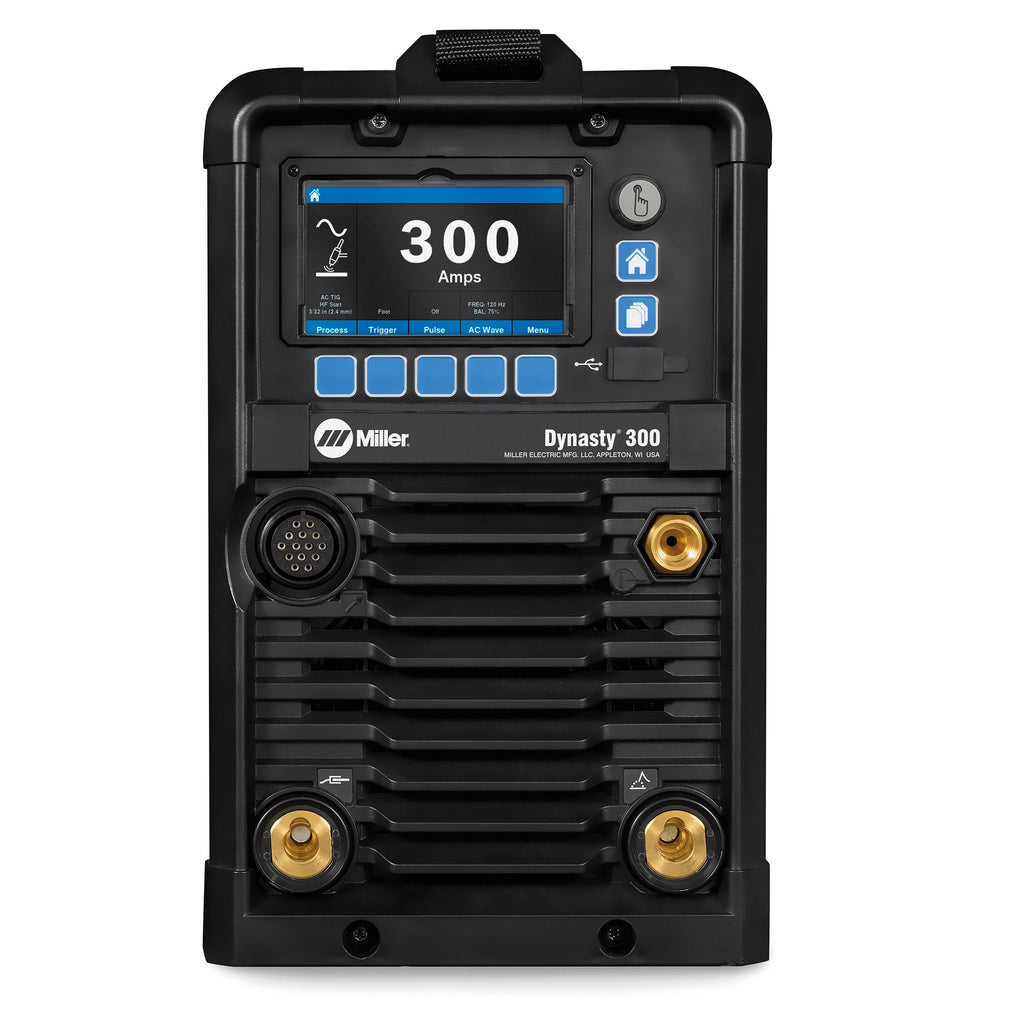

The new Miller Dynasty 300 AC/DC boasts an intuitive front panel, offering real-time insights into the Arc shape and its impact on the weld. Watch our video for a detailed tour of the display panel.
Specification
| Title | Dynasty® 300 208-600 V |
| Industries Interests | Aerospace Boat / Yacht Construction Heavy Equipment Manufacturing High Purity Processing Infrastructure Manufacturing Railcar Shipbuilding |
| Material Thickness | Aluminum 0.3 mm – 9.5 mm Steel 0.1 mm – 9.5 mm |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575/600 V |
| Rated Carbon Diameter | 4.8 mm |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 60 VDC |
| Amperage Min | 1 A |
| Amperage Max | 300 A |
| Portability | Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | CC |
| Net Width | 216 mm |
| Net Height | 352 mm |
| Net Length | 555 mm |
| Net Weight | 25 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
Features
- Intuitive LCD Display Interface: Simplifies machine setup and parameter selection. On-screen explanations and dynamic images for user-friendly experience
- Program Memory for Easy Setup: Effortless naming, saving, and recalling of favourite weld settings
- Pro-Set Professional Settings: Eliminates guesswork with pre-set controls for key parameters. Ensures speed, convenience, and confidence in welding projects
- Locks and Limits for Precision: Minimizes deviations from welding procedure specifications (WPS). Provides control of weld parameter ranges
- QuietPulse™ Technology: Creates a quieter work environment for DC pulse welding. Smooth transition between background and peak amperage
- USB Port for Versatility: Easy software updates, backup of settings, and program transfer
- Auto-Line™ Technology for Reliability: Accepts any single-phase input voltage hookup (208–480 V). Ideal for portability and reliability in various job settings
- Tailored Stick Features: Tailored arc control (DIG) for specific applications and electrodes. Hot Start™ adaptive control for positive arc starts without sticking
- AC Frequency Control for Precision: Adjust arc cone width for improved directional control (50-150 Hertz)
- Warranty: 3 Years
Elevate your welding game with the Miller Dynasty 300 AC/DC – where innovation meets performance. Explore the future of welding technology now.
