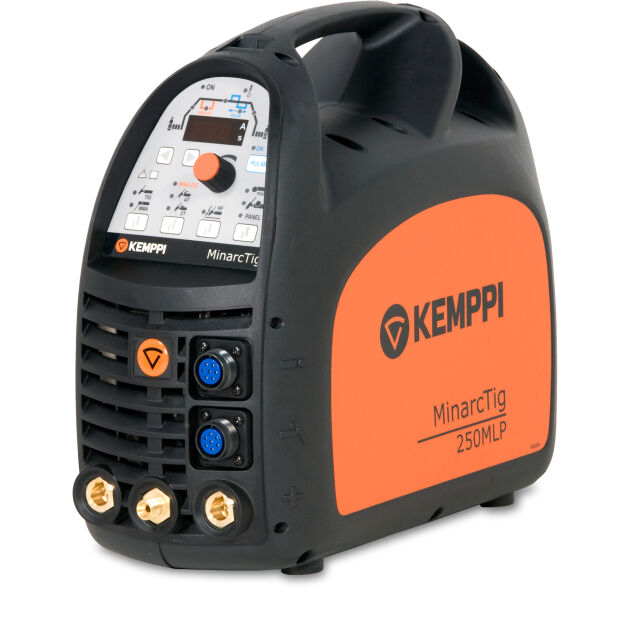

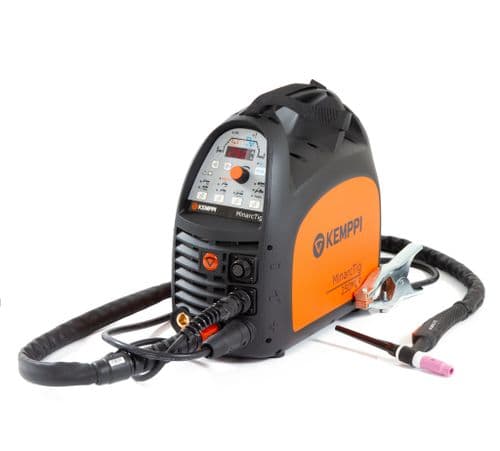

Kemppi MinarcTig 250 MLP Air Cooled Packages 400V
All TIG Packages incl -

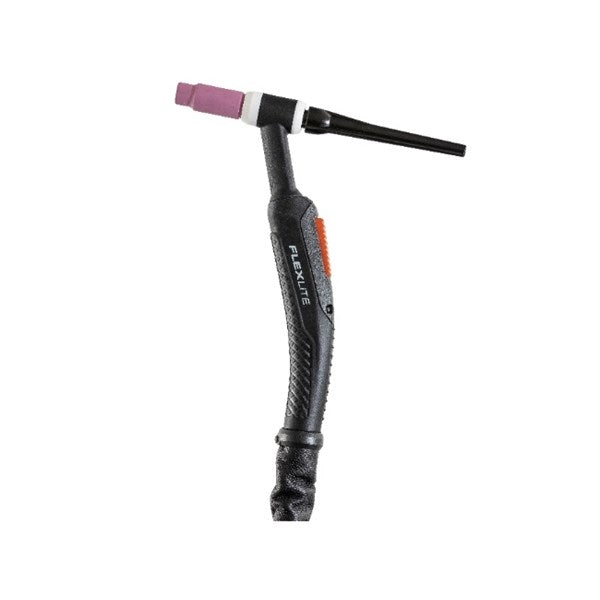

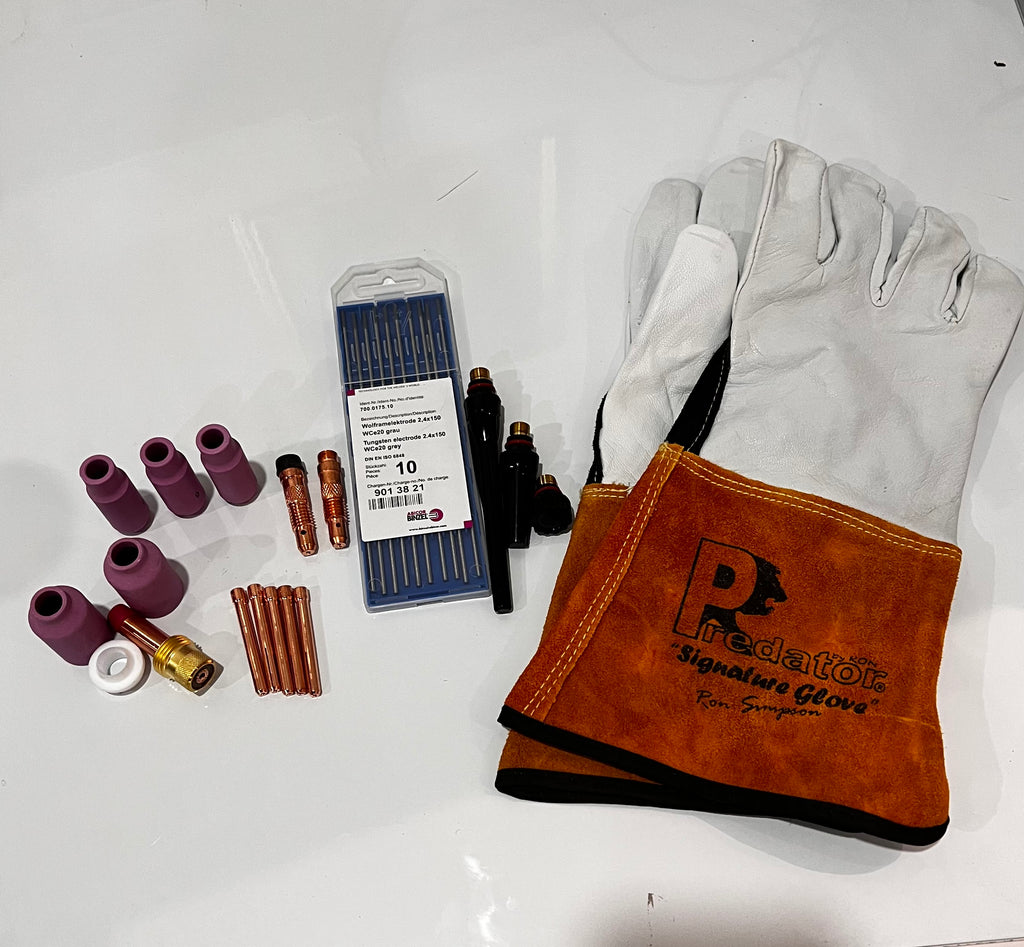

Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
MinarcTig 250MLP is an advanced dual-process model equipped with special features such as Minilog and pulsed arc function.
MinarcTig 250MLP model is equipped with special features, such as Minilog and pulsed arc function. High 35 % duty cycle and lightweight combine real performance advantages, plus exceptional control in low current ignition means refined TIG welding quality for precise applications.
Features
- Excellent low current ignition
- Clear parameter display
- Pre and post gas timer
- Slope in/out timer
- Torch switch latching
- Pulse welding option
- Suitable for mains or power generator use
Technical Data
| Mains connection voltage | 400 V -20...+15 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 8.2 kVA |
| Mains fuse | 10 A |
| Idle power | 40 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 250 A |
| Output at +40 °C, 100% TIG | 160 A |
| Power factor at rated maximum current [λ] | 0.91 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.5 MVA |
| Welding connection type | DIX |
| Recommended minimum generator power [Sgen] | 15 kVA |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 400 mm |
| External dimensions, width | 180 mm |
| External dimensions, height | 340 mm |
| Weight without accessories | 10.7 kg |
| Standards | IEC 60974-1, -3, -10, IEC 61000-3-12 |
