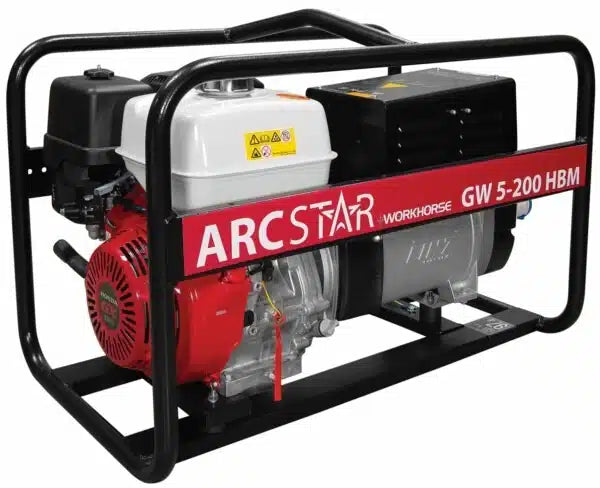

A well built, portable generator that provides 200A of welding output. Equipped with a high quality Honda GX390 petrol engine to provide ~ 4.5Kva auxiliary power.
MOSA UK (Wilkinson star) developed this product especially for the UK welding market. It's large 200 amp DC welding output combined with its both it's 110V and 230V output sockets gives it useability it basically any welding scenario. Be it on-site welding railings or out on-the-rod repair digger buckets.
The Honda GX390 engine, which is what provides the ArcStar GW5-200 with its power, is renowned the world over for its reliability. Pair the reliability of the engine with the outstanding build quality from MOSA and you're on to a winner, for sure!
Key Features
- Duty cycle - 60% @ 170A
- Welds all electrode types
- Protective frame
- Lightweight
Technical Specifications
- Engine type: Honda GX390 (Stage V) Petrol OHC 4 stroke / air
- Net power standby: 8.2 Kw (11.1HP)
- Fuel consumption (welding at 60%): 2.1L per hour
- Engine oil capacity: 1.1L
- Starter type: Recoil
- Fuel tank capacity: 6.1L
- Running time (welding at 60%): 3.5 hours
- Insulation class: IP23
- Dimensions: 870MM x 525MM x 613MM
- Weight (dry): 97KG
- Sound level (Acoustic power): 97DBA
- Current range: 40A - 200A
- Duty cycle: 60% at 170A
- Auxiliary power: 4500W 230V / 2250W 110V
- Power sockets: 1 x 16A 230V + 1 x 16A 110V
- Switched amperage control
| Brand | MOSA |
|---|---|
| Warranty Period | 1 Year |
| Engine Type | Petrol |
| Generator Type | Welder Generator |
| Auxiliary Output | 1 KVA, 2 KVA, 3 KVA, 4 KVA |
| Power Outlet(s) | 110V 16A, 230V 16A |
| Short Description |
A well built, portable generator that provides 200A of welding output. Equipped with a high quality Honda GX390 petrol engine to provide ~ 4.5Kva auxiliary power. |
