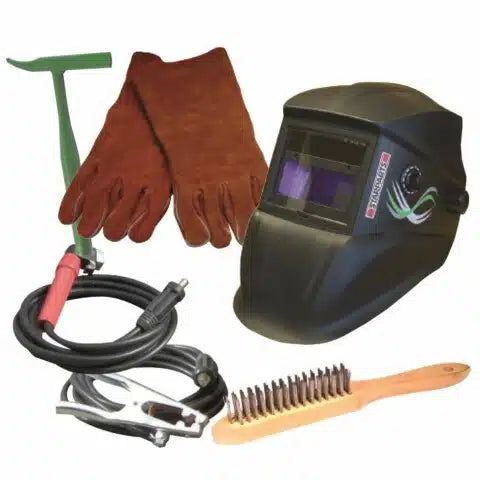

TS200 BS/EL 170 Amp Petrol Engine Driven Welder Generator 170A Site Package (4kVA-230/110V) Recoil Site Ready Package includes: wheel kit, 5m welding lead set, light reactive welding visor, welding gauntlets, chipping hammer, wire brush
- D.C. welding capable, welds all electrode types, including cellulosic
- A.C. generator, available in single and three-phase
- Ground fault interrupter and engine shut-down feature with oil alert
- Meets EC directives for full compliance with regulatory standards
- Recoil Site Ready Package includes valued accessories like a welding visor and gauntlets
- Honda GX 390 gasoline engine with fuel efficiency and reliable performance
Features
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- Steel stretcher provides protection for the entire machine
- A.C. generator, available in both single-phase and three-phase
- Auxiliary power also available while welding
- Ground fault interrupter for enhanced safety
- Engine shut-down feature with oil alert
- Meets EC directives for compliance and regulatory standards
| Technical Data | Honda GX 390 |
|---|---|
| Model | 4 Stroke, OHV, Natural Aspirated |
| Stand-By Net Power | 8.2 kWm (11.1 hp) |
| PRP Net Power | 6.4 kWm (8.7 hp) |
| COP Net Power | / |
| Cylinders/Displacement | 1/389 cm³ (0.39 lt.) |
| Bore/Stroke | 88/64 (mm) |
| Compression Ratio | 8.2 : 1 |
| BMEP | LTP-PRP |
| Speed Governor Type | Mechanical |
| Fuel Consumption @ 110% Stand-by Power | 3.5 lt./h |
| Fuel Consumption @ 100% to PRP | 3.2 lt./h |
| Fuel Consumption @ 75% to PRP | 2.4 lt./h |
| Fuel Consumption @ 50% to PRP | 1.6 lt./h |
| Cooling System | Aria |
| Total System Capacity – Only Engine/Fan Air Flow | / |
| Lubrication System Total Oil System Capacity/Oil Capacity in Sump | 1.1 lt. |
| Oil Consumption at Full Load | / |
