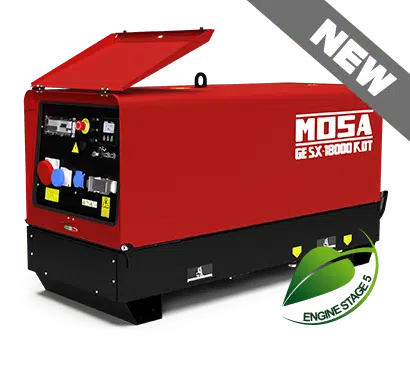

GE SX-18000 KDT Diesel Gen 400/230V
- Control panel with digital control unit
- Highly sensitive ELCB-GFI (Ground Fault Interrupter) 30mA
- Bunded base to contain any liquid leakage
- Large fuel tank with fuel level sensor
- Prepared for remote Start and Stop control
- Low noise level – Meets EC/UE directive
Features:
- Control panel with digital control unit
- Automatic voltage regulation “AVR”
- Four pole circuit breaker
- High sensitivity ELCB-GFI (Ground Fault Interrupter) 30mA
- Bunded base suitable to contain any liquids leakage from engine avoiding environmental pollution
- Central lifting eye
- Rounded edges of the canopy designed for rainwater drainage away
- Canopy with large opening for easy maintenance (replacement of air, oil, fuel filters)
- Large fuel tank with fuel level sensor
- External plugs for oil and water drainage
- Emergency stop button
- Prepared for remote Start and Stop control
- Prepared for connection to PAC-I switching panel (ATS)
- Automatic version for emergency intervention in the event of a power failure
- Low noise level
- Meets EC/UE directive
| Power Rating | Value |
|---|---|
| Stand-By three-phase power (LTP) | 18 kVA (14.4 kW) / 400V / 26A |
| PRP three-phase power | 16.5 kVA (13.2 kW) / 400V / 23.8A |
| PRP single-phase power | 9 kVA/kW / 230V / 39.1A |
| Frequency | 50 Hz |
| Cos j | 0.8 |
Technical Data
| Parameter | Value |
|---|---|
| Model | KOHLER KDW1003 |
| Stand-By net power | 17.15 kW (23.3 hp) |
| PRP net power | 15.6 kW (21.2 hp) |
| COP net power | |
| Cylinders / Displacement | 3 / 1028 cm³ (1,028 lt.) |
| Bore / Stroke | 75 / 77.6 (mm) |
| Compression ratio | 22.8 :1 |
| BMEP | |
| Speed governor type | Mechanical |
| FUEL CONSUMPTION | |
| 110% (Stand-by power) | 5.4 lt./h |
| 100% to PRP | 4.9 lt./h |
| 75% to PRP | 3.7 lt./h |
| 50% to PRP | 2.7 lt./h |
| COOLING SYSTEM | |
| Total system cap. – only engine | |
| Fan air flow | 93 m³/min. |
| LUBRICATION SYSTEM | |
| Total oil system capacity | 2.6 lt. |
| Oil capacity in sump | 2.5 lt |
| Oil consumption at full load | |
| EXHAUST SYSTEM | |
| Maximum exhaust gas flow | 3.2 m³/mim. |
| Max. exhaust gas temp. | 540 degC |
| Maximum back pressure | 8000 kPa (0.08 bar) |
| External diameter exhaust pipe | |
| ELECTRICAL SYSTEM | |
| Starter motor power | 1.6 kW |
| Battery charging alternator cap. | 40 A |
| Cold start | -15 degC |
| With cold start aid | |
| AIR FILTER | Dry |
| Combustion air flow | 1.6 m³/min. |
| HEAT REJECTED AT FULL LOAD | |
| To exhaust system | |
| To water and oil | |
| Radiated to room | |
| To charge cooler |
