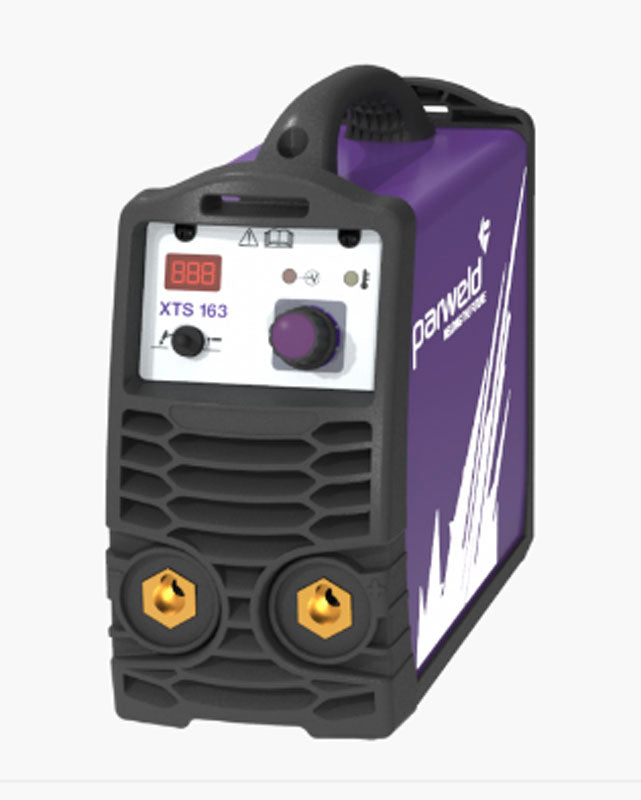

Parweld XTS 163-P2 DV MMA inverter 110/230V, 160Amps

  • Sale
  • Regular price £280.00

Excludes VAT

Parweld XTS 163-P2 DV MMA inverter 110/230V, 160Amps

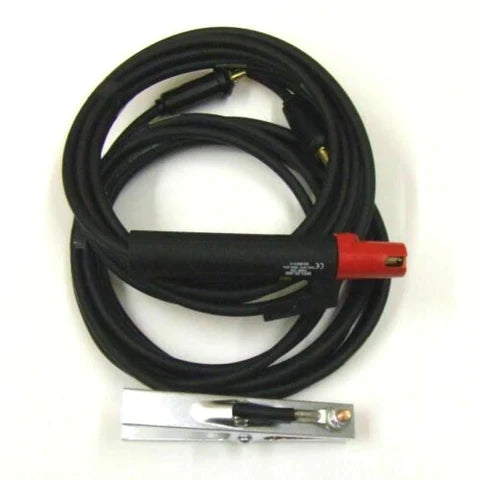

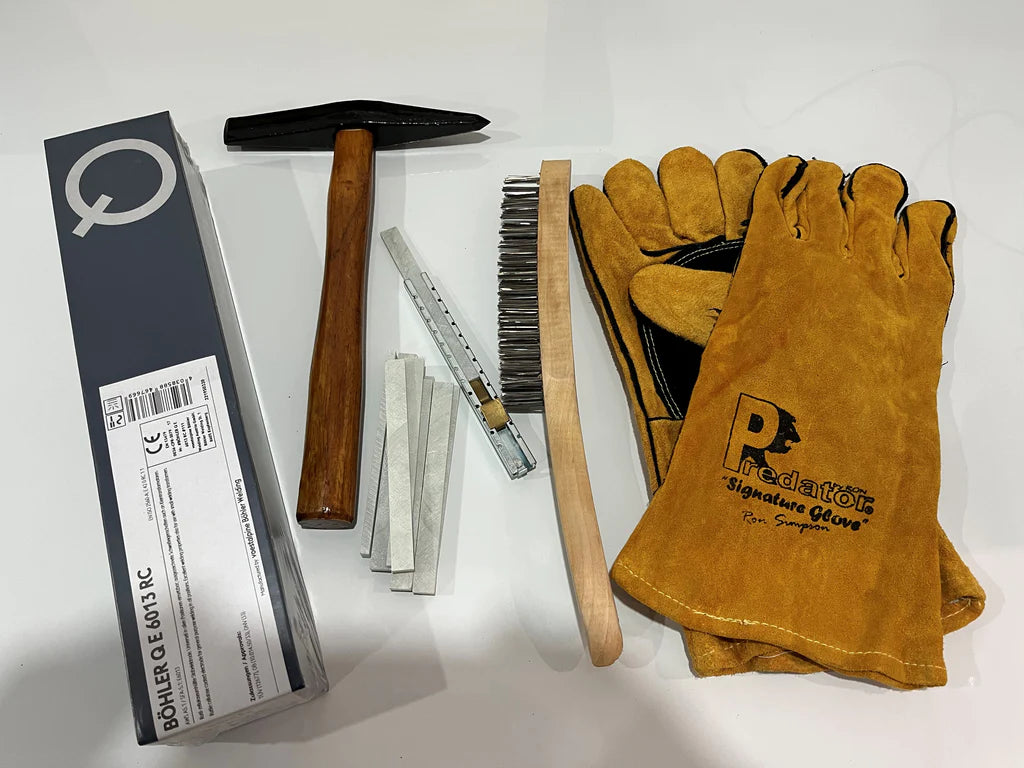

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin

Technical Information *Generator Requires AVC Parameter Value Style Portable Output Current 5-160A @ 230V 5-140A @ 110V Input Voltage 110/230V 1P Max Electrode Size 3.2mm No Load Voltage 50V Cable Connection 35-50 Dix Duty Cycle 160A @ 25% (230V) Min Fuse Rating 32A @ 110V 16A @ 230V Input Current (Eff) 17A @ 110V 15.5A @ 230V KVA 4.5 Generator Size* 6 KVA Enclosure Protection IP23S Dimensions (LxWxH mm) 285 x 120 x 250 Weight (kg) 4.8 Stock Code Description XTS163DV 160A MMA Inverter Dual Voltage XTS163DV-P1** Inverter c/w WP17V Torch Package Applications Light Industrial Manufacturing  Metal Fabrication  Maintenance Repair  Agricultural and DIY  Training  For standard and optional extras see from page 33. Supplied with Electrode Holder, 3m Cable and 3m Earth Lead
