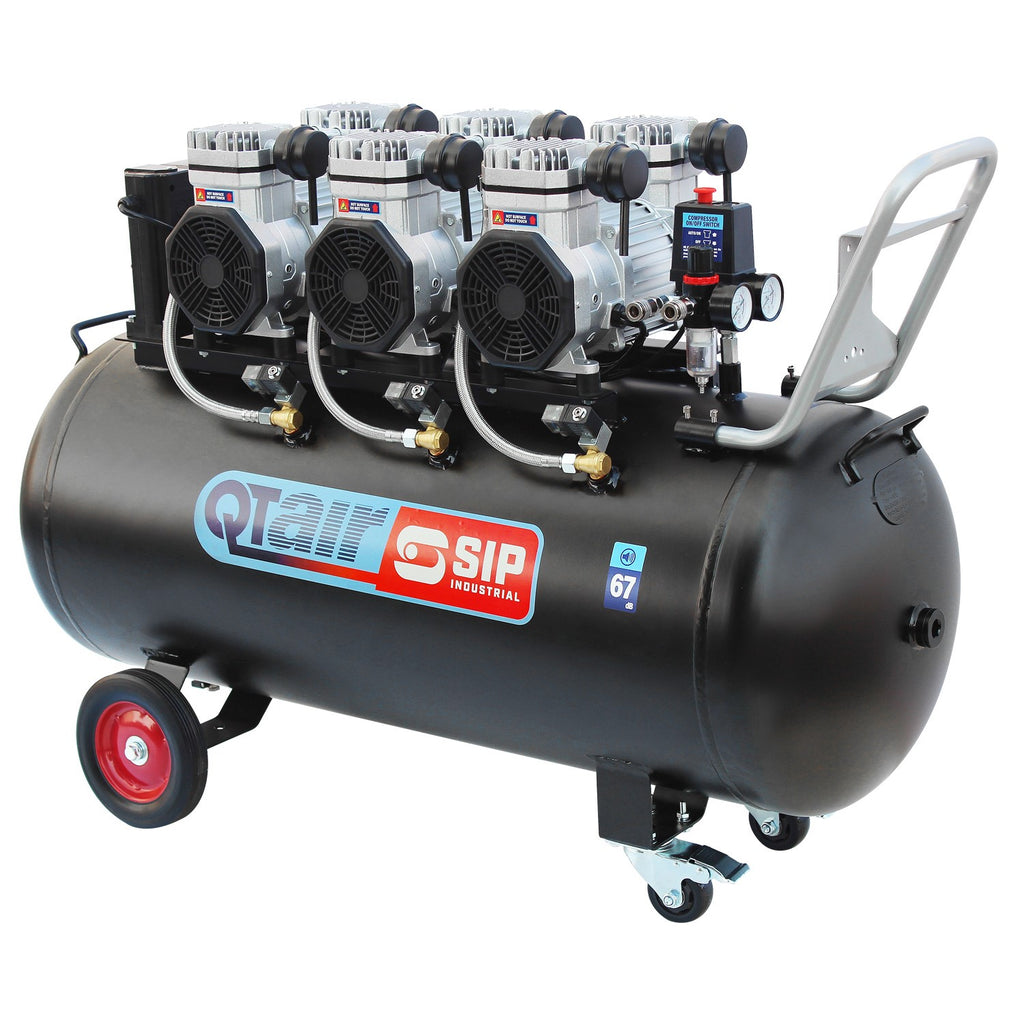

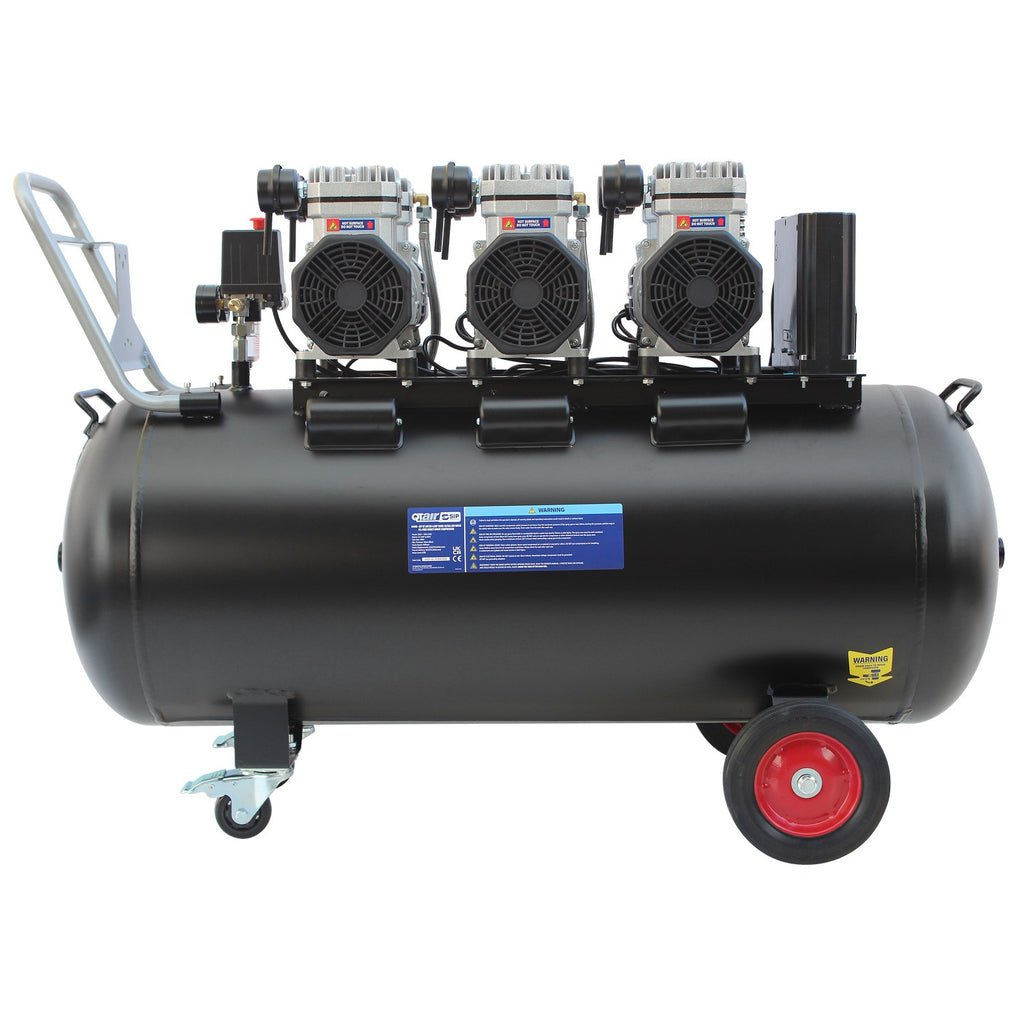

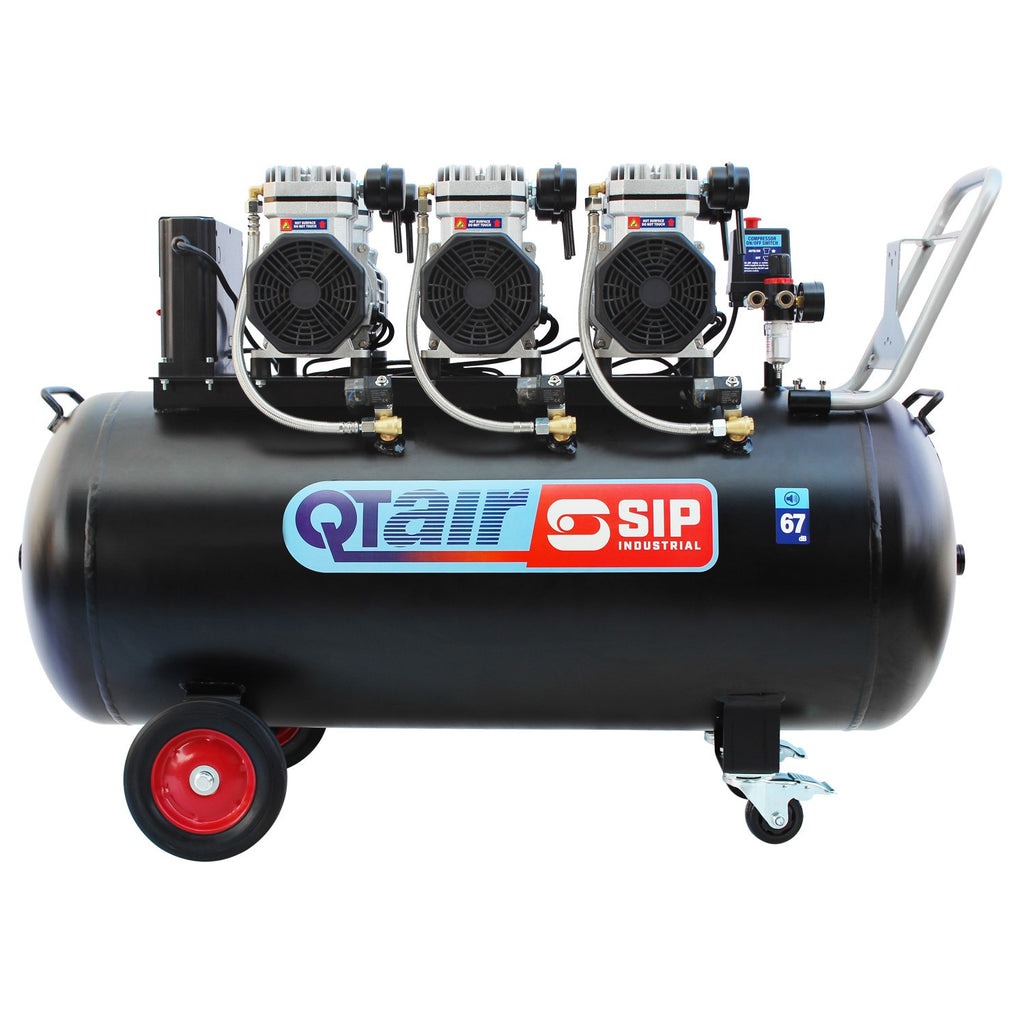

The SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor is an innovative ultra low noise air compressor which operates at just 67dB and features slow-running 4-pole motor pump units for up to 50% longer life performance.
Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.
KEY FEATURES
- 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)
- Ultra low noise six-cylinder motor pump unit operates at just 67dB
- Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)
- Mains supply control box initiates start-up from a 16A single-phase supply
- 200ltr receiver with tank and working pressure gauges and quick-release connectors
- U-handle includes bracket and fixings for separate SIP Air Hose Reel
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor is a powerful and innovative ultra low noise compressor which features slow-running 4-pole motor pump units for up to 50% longer working life compared to standard SIP 2-pole motor air compressors.
Operating at an ultra low 67dB, it's perfect for work areas where noise level is a consideration.
A wheel-mounted design with swivel front castors and U-handle allows for full movement in a variety of work area settings for added flexibility. The supplied U-handle also includes a bracket for mounting a separate SIP Air Hose Reel for added versatility.
Applications & uses: Designed for automotive settings and large workshops. Ideal for spraying applications, pneumatic car lifts, tyre changers and plasma cutters. Suitable for sanding and grinding applications.
What's in the box?: 1x SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor, wheel kit (2x solid wheels and 2x castors), pull handle with air hose mounting bracket and fixings, and 3mtr mains cable with 230v/16A plug.
SIP 2-Year Standard Silver Warranty*

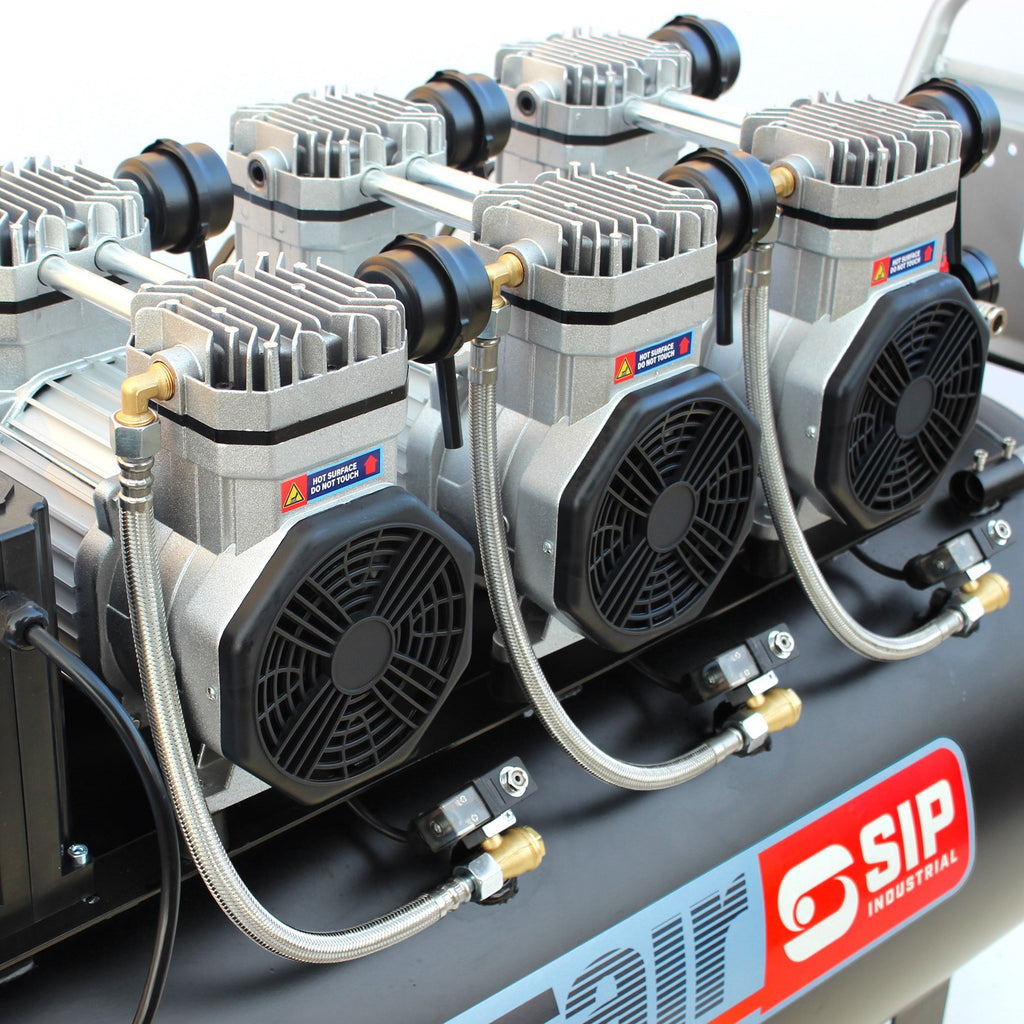

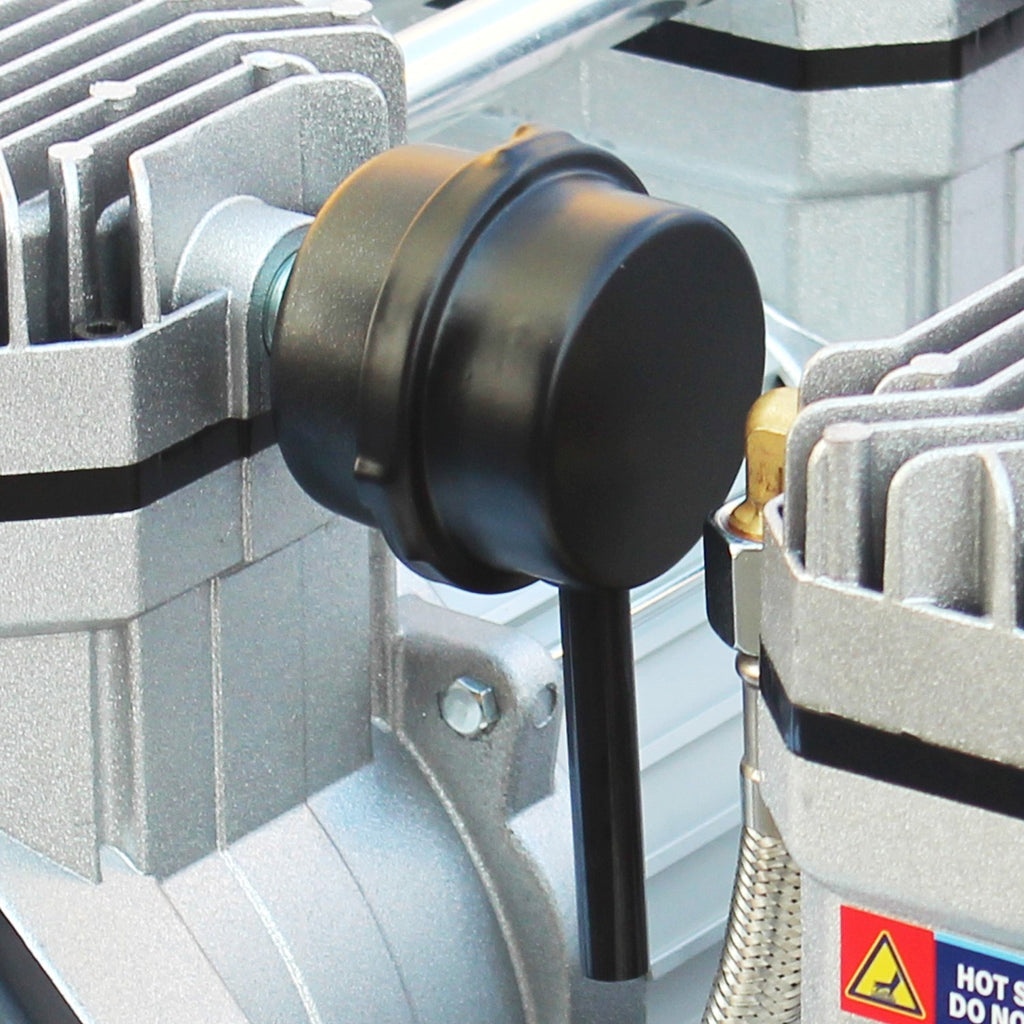

LARGE SIX-CYLINDER MOTOR PUMP UNIT WITH SLOW-RUNNING 4-POLE MOTORS ACHIEVE ULTRA LOW NOISE LEVELS & SUPPORT HIGHER AIR VOLUME APPLICATIONS & OIL-FREE FOR LOW MAINTENANCE USE
- Ideal for spraying applications, pneumatic car lifts and tyre changers. Suitable for sanding and grinding applications and perfect for use with spot welders and plasma cutters.
- Slow-running 4-pole motors operate at lower speeds for longer life performance (4.5hp/3.3kW) compared to standard SIP 2-pole motor air compressors. Delivers high 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single-phase supply.
- Large motor fans improve cooling to maintain pump temperature and output performance.

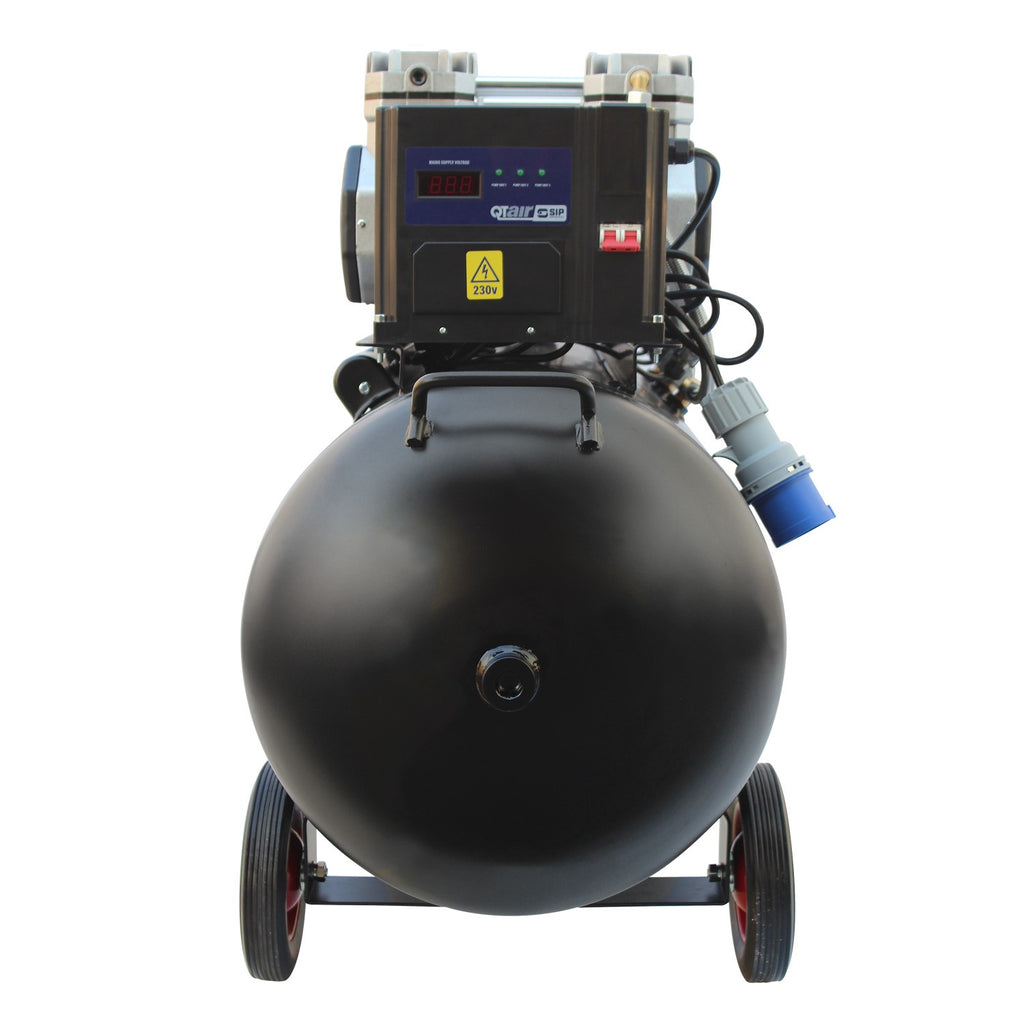

- A mains supply control box with input voltage display initiates individual motor pump unit start-up at 3sec intervals. This eliminates inrush current, alleviating any start-up motor stress and premature motor wear and tear.

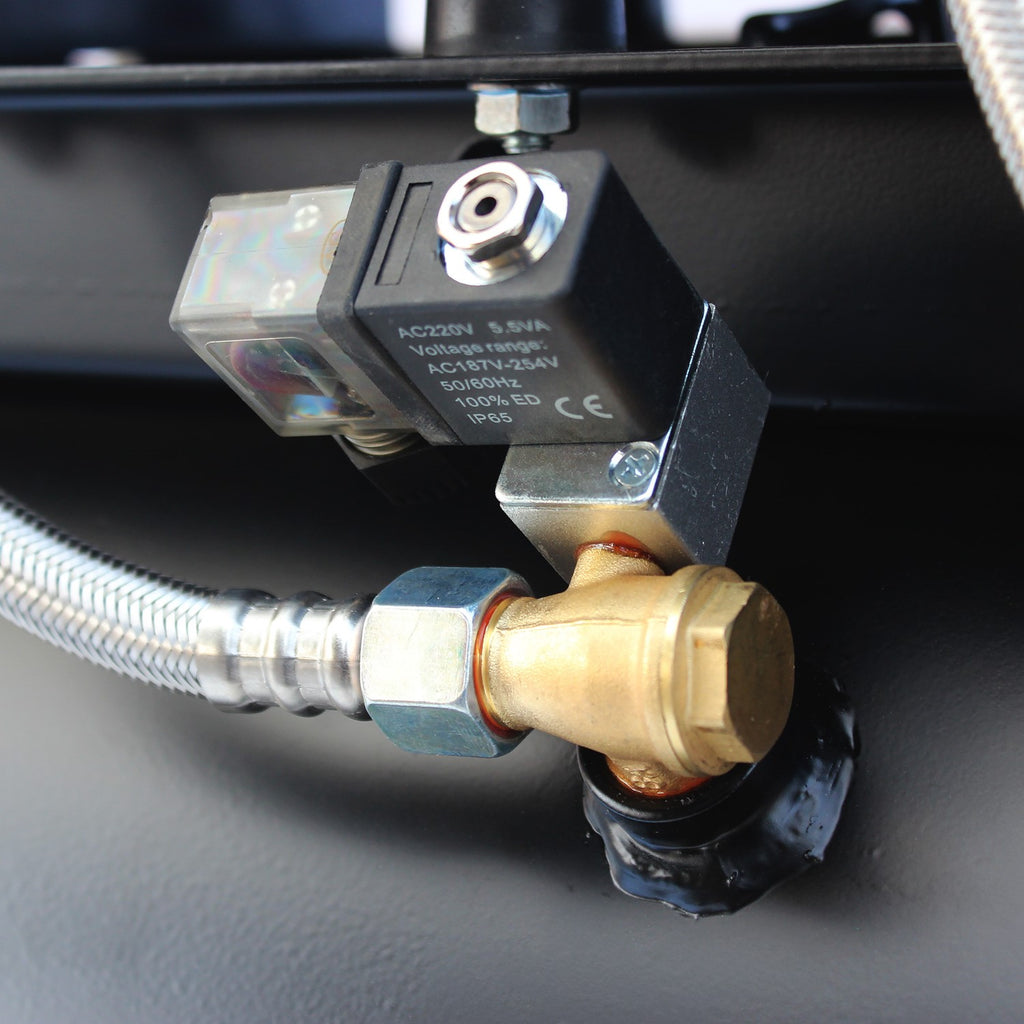

- Also features an electronic auto bleed system for resistance-free start-up. This releases residual delivery pipe pressure before every filling cycle, which ensures each motor reaches it's full operating speed without any additional mechanical stress.
- Fitted with 3mtr mains cable for greater work area flexibility and a 230v/16A plug.
- Operates at an ultra low 67dB for lower noise levels compared to older SIP compressor technology. Ideal for work areas where noise level is a consideration.
- Oil-free operation for low maintenance use and reduced operating costs. This prevents oil carry-through to air tools and equipment, maximising longevity.

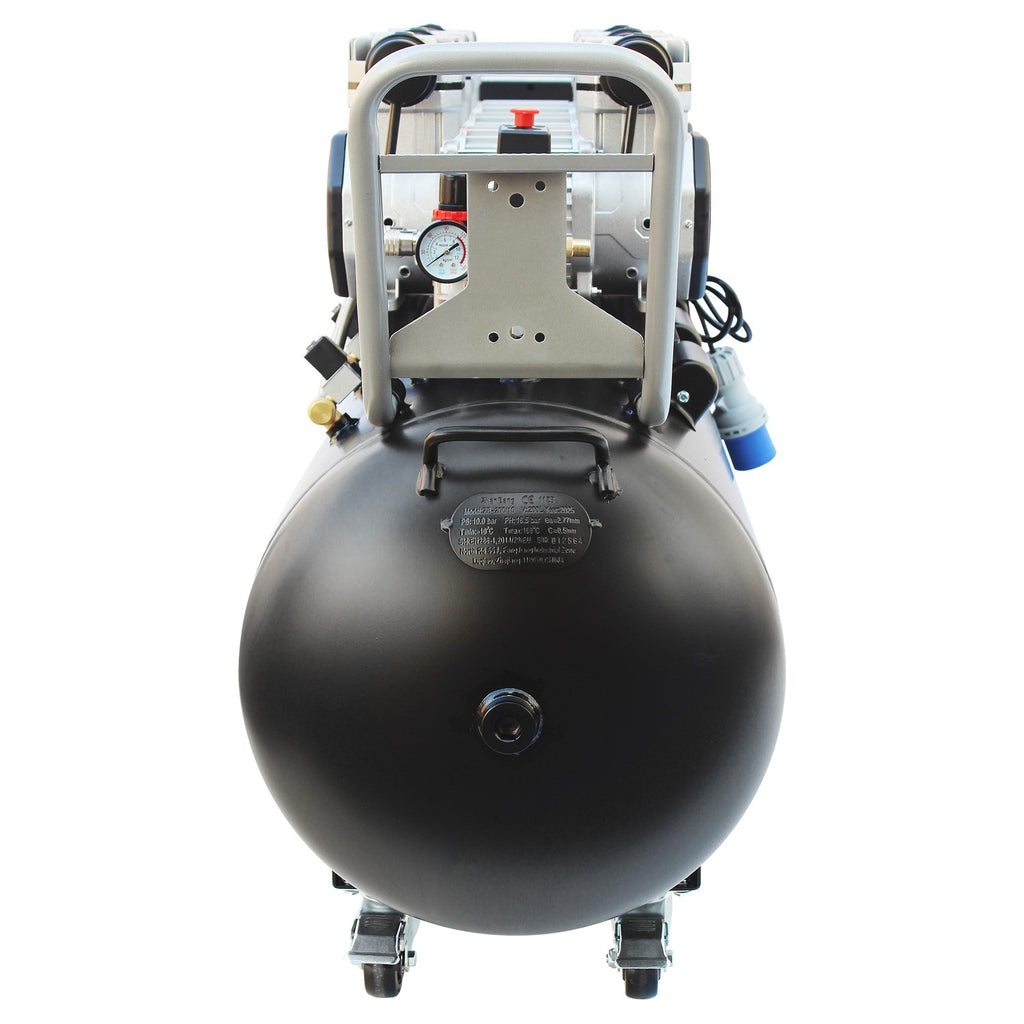

200LTR RECEIVER TANK SAFELY STORES COMPRESSED AIR READY FOR AIR TOOLS & INFLATION TASKS
- Maintains a consistent air supply of up to 8bar pressure.

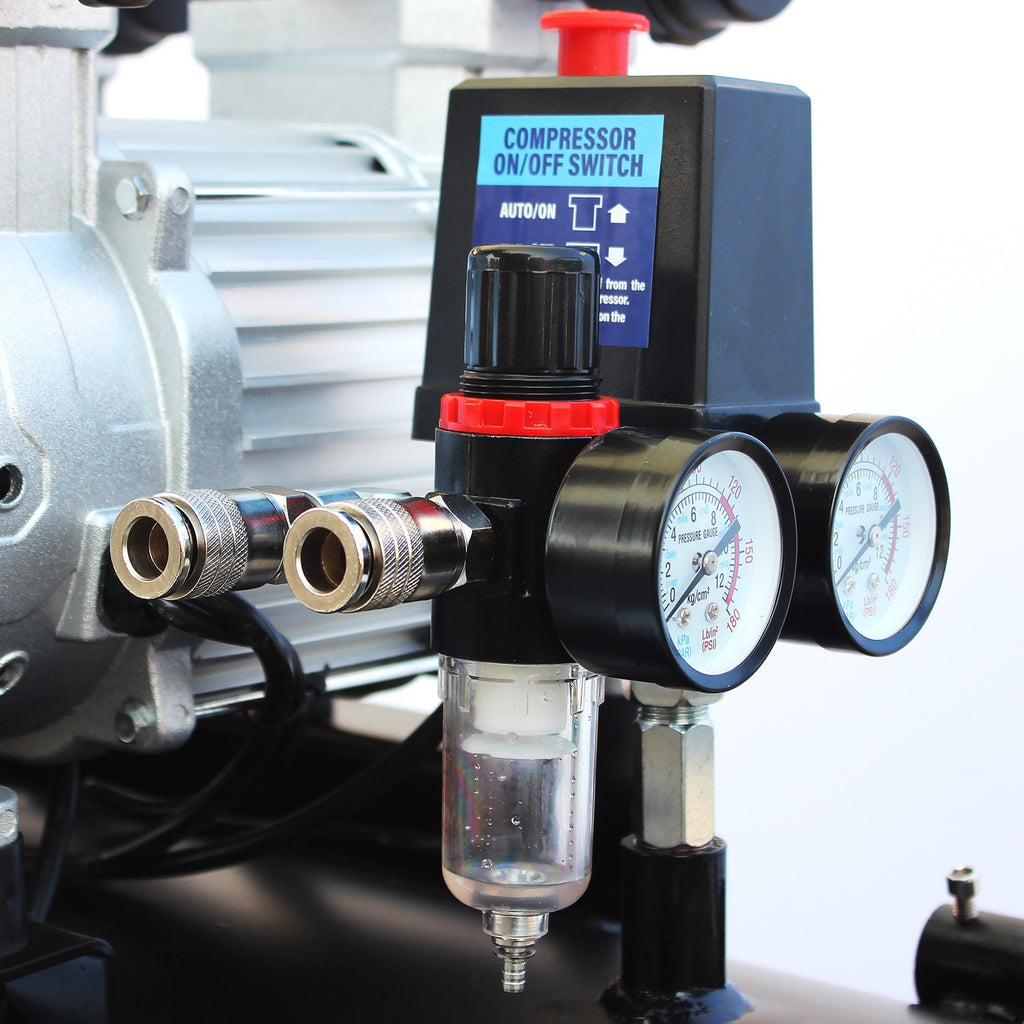

TANK & WORKING PRESSURE GAUGES WITH REGULATOR OPTIMISE AIR DELIVERY
- Provides an accurate display of current pressures for enhanced user operation.
TWIN QUICK-RELEASE AIR CONNECTORS FOR GREATER APPLICATION VERSATILITY
- The adjustable regulator (0-8bar) optimises air requirements to both quick-release connectors.
- Also fitted with a quick-release air receiver condensate drain valve.

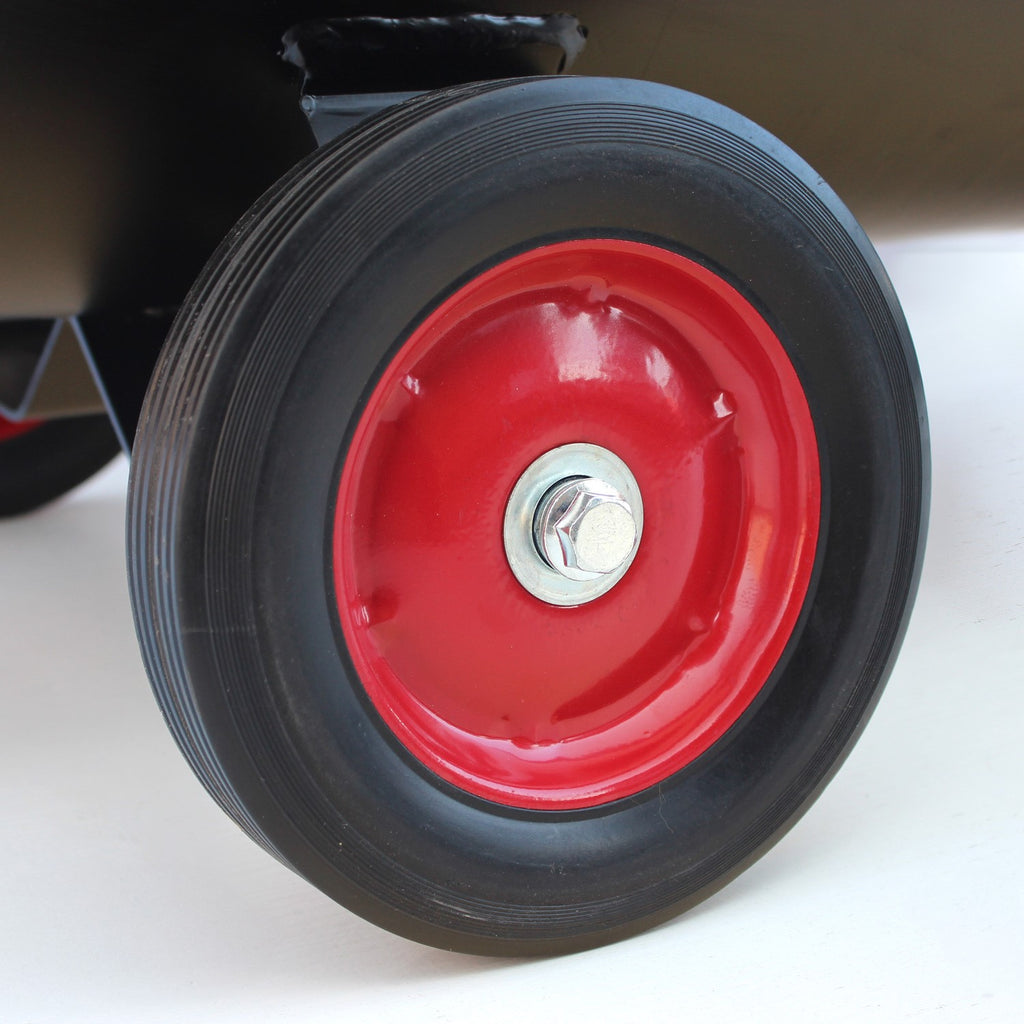

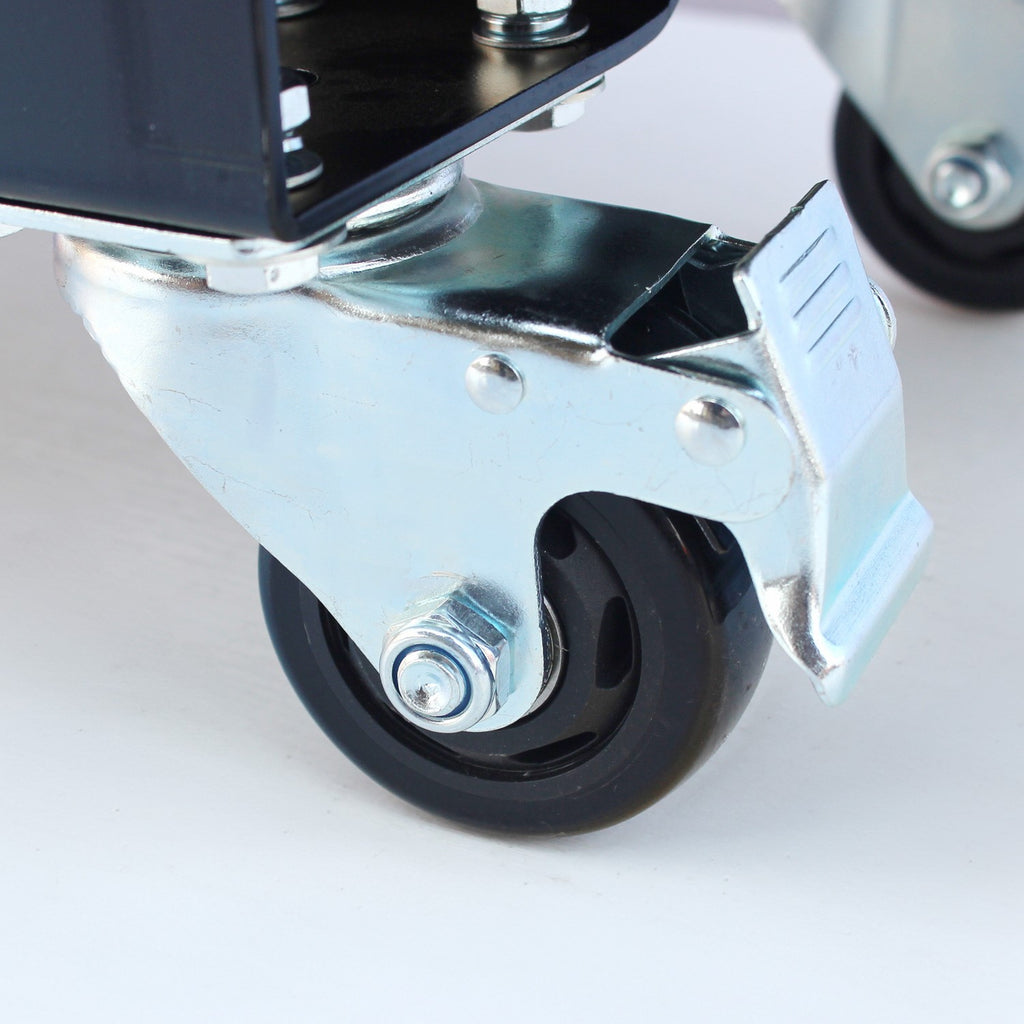

SOLID WHEEL KIT WITH FRONT SWIVEL CASTORS & U-HANDLE FOR OUTSTANDING MOBILITY AROUND THE WORK AREA
- Allows full movement in a variety of work area settings for added flexibility.
- Supplied U-handle includes bracket and fixings for mounting a separate SIP Air Hose Reel for added versatility.

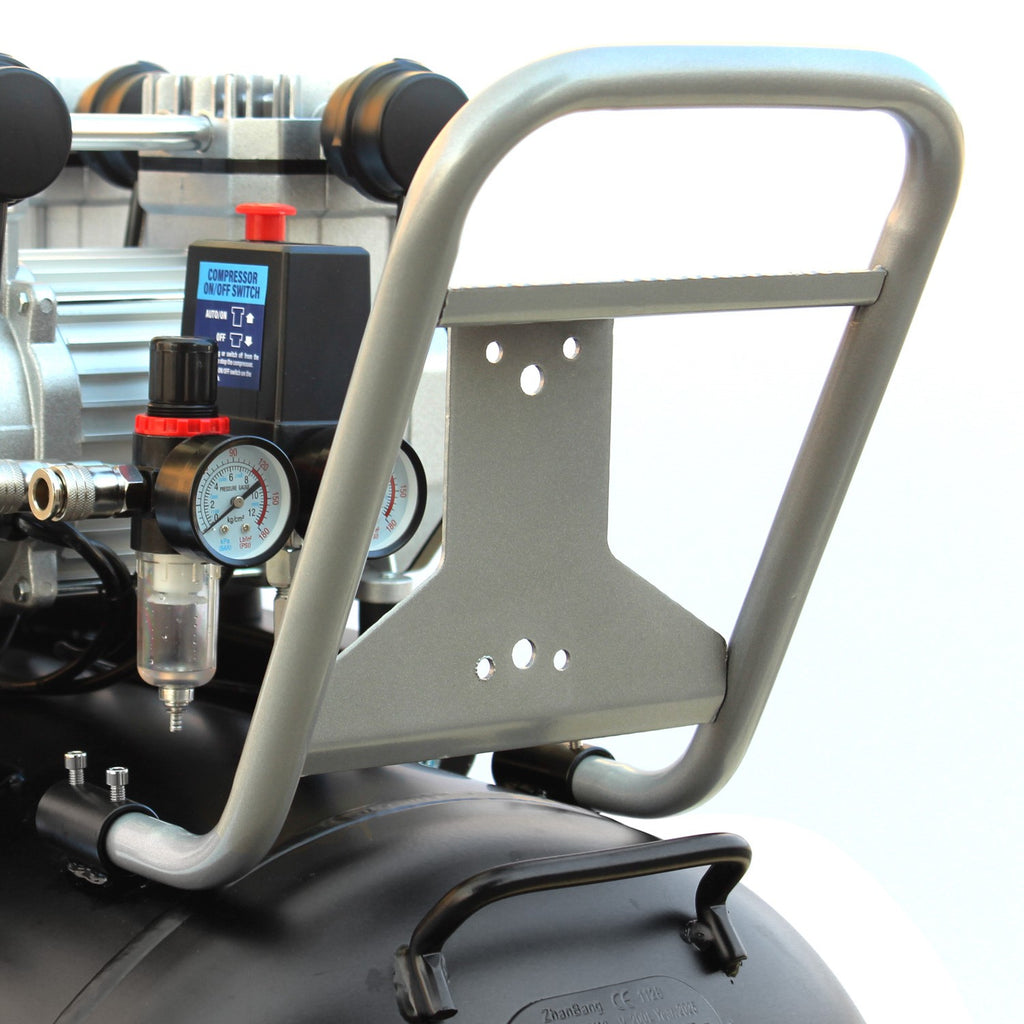

SUPPLIED U-HANDLE INCLUDES BRACKET & FIXINGS FOR MOUNTING A SEPARATE SIP AIR HOSE REEL
- Compatible air hose reels include:
- 07977: SIP Air Hose Reel R15 (15mtr recoiling hose in heavy-duty metal casing with swivel bracket).
- 07974: SIP Air Hose Reel 15 (15mtr recoiling hose in heavy-duty plastic casing with swivel bracket).
-
07972: SIP Air Hose Reel 12 (12mtr recoiling hose in heavy-duty plastic casing with swivel bracket).
Technical Information
ITEM NO. 05498 Input Supply: 230v (16A) Motor Power: 4.5hp (3.3kW) Receiver Size: 200ltr Piston Displacement: 22.8CFM (646ltr/min) Free Air Delivery (FAD): 18.2CFM (515ltr/min) Max. Air Pressure: 116psi (8bar) Noise Level: 67dB Net Weight: 110kg Gross Weight: 130kg Product Dimensions: 870(H) x 470(W) x 1260mm(D) Packaged Dimensions: 900(H) x 490(W) x 1290mm(D)
