KEMPPI 61008220 MinarcMig 220 Auto 220A 230V
All MIG Packages incl. Mig Torch, Earth Return, Gas Hose.
Spares FOC Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead

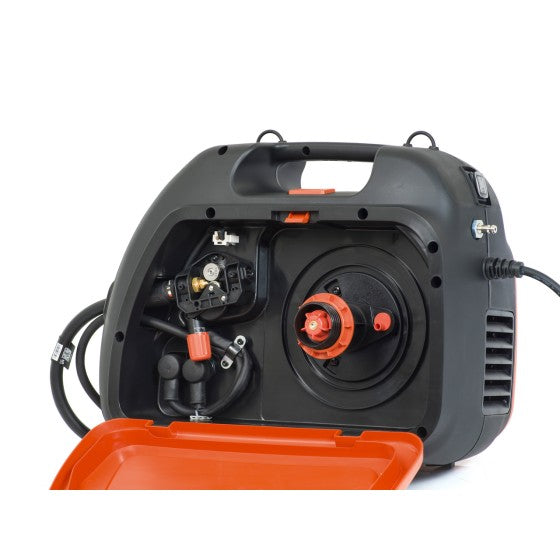

MinarcMig 220 Auto A 13 kg, portable MIG/MAG welding machine providing 220 A with a 20% duty cycle from a 16 A single-phase mains supply. Manual and synergic welding options available. Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminium (Al), and CuSi brazing filler wires. A 3-meter welding torch with an ergonomic gun handle, cable set, and carrying strap included.
Technical Specification
- voltage 1~ 50/60 Hz 230 V ±15%
- Welding range 20 A / 15 V...220 A / 28 V
- Output 20% ED 220 A 220 A
- Output 60% ED 160 A
- Output 100% ED 120 A
- Open circuit voltage 70...75 V
- Wire feed mechanism 2-roll, single-motor
- Wire spool weight, max. 5 kg 5 kg
- Wire spool diameter, max. 200 mm
- Mains fuse 16 A
- Operating temperature range -20...40 °C
- External dimensions (L x W x H) 450 x 227 x 368 mm
- Weight (no accessories) 13 kg
- Degree of protection IP23
- Standards IEC 60974-1, -5, -10,
- IEC 61000-3-12
- EMC class A
- Storage temperature range -40...60 °C
- Shielding gas pressure (max) 0.5 MPa
Features
- Precise Weld Quality: Adaptive arc regulation ensures precise weld quality and arc ignition.
- Easy Operation: Select material type and plate thickness for automatic mode welding.
- Powerful Performance: 220A/190A MIG/MAG welding power from a 16A supply.
- Versatile Compatibility: Works with Fe, Fe FCW, Ss, Al, CuSi filler wires, 1 kg, and 5 kg wire spools.
- User-Friendly Display: Large graphical backlit display for low-light conditions.
- Extended Reach: Suitable for use with long power extension cables (up to 100m).
- Complete Kit: Includes a 3-meter welding torch with ergonomic handle, cable set, and carrying strap.
- Flexible Use: Suitable for mains network or generator use - Minimum Generator Size - 190-6kVA | 220-7kVA
- Reliable Warranty: Comes with a 3-year warranty.
