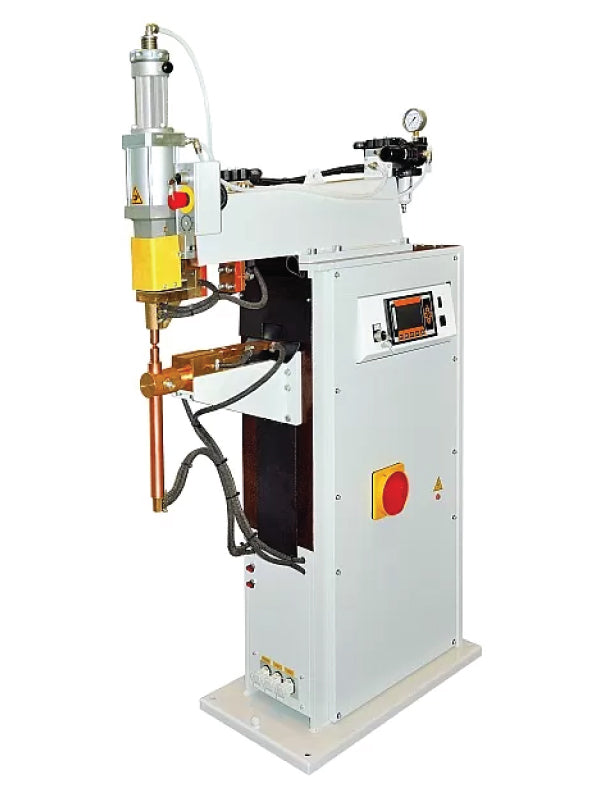

The TECNA 6075A-8031 is a 56 kVA, air-operated, MFDC / inverter press-type spot / projection welder with a water-cooled transformer, plates, electrode holders, and electrodes.
TECNA inverter technology offers advantages over single-phase AC, including greater welding quality and precision, more efficient use of electricity, smaller size, and less electrical loss due to impedance (power savings).
- Model: TECNA 6075A-8031
- Power @ 50% duty cycle: 56 kVA
- Power supply: MFDC / Inverter
- Max. weld current: 25,000 amps
- Max. weld force: 1,056 lbs.
- Max. electrode throat depth: 19.68 in. [ Designation “8031” ]
- Max. projection plate throat depth: 14.96 in.
- Controls: TE700 MFDC / inverter control unit
Features
- Medium-frequency welders are designed to obtain high-quality welding.
- Modular design of mechanical structure, arms, brackets, and cylinders.
- Cylinder with chrome plated stem for heavy-duty work and long life; adjustable anti-rotation device.
- Lubrication-free pneumatic components to eliminate oil mist and protect the environment.
- Adjustable double-stroke cylinder with key control.
- Built-in compressed air filter unit. Compressed air disconnection device.
- Water-cooled transformer, plates, electrode-holders, and electrodes; transformer with epoxy resin-coated windings.
- Two-stage electric foot control for clamping and welding pieces only if correctly positioned.
- Pre-setting for additional double-stage electric foot switch connection for the direct recalling of a different welding program.
- Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
- Emergency push-button to stop the machine immediately.
Specifications
| MODELS | UNITS | 6073 (*6073A) | 6074 (*6074A) | 6074 / 8039 (*6074A / 8039) | 6075 (*6075A) | 6075 / 8031 (*6075A / 8031) | 6075 / 8040 (*6075A / 8040) |
|---|---|---|---|---|---|---|---|
| Press welder type | Spot | Spot | Spot | Spot / projeciton | Spot / projeciton | Spot / projeciton | |
| Standard control | TE751 (*TE700) | TE751 (*TE700) | TE751 (*TE700) | TE751 (*TE700) | TE751 (*TE700) | TE751 (*TE700) | |
| OPTION 8039 - Throat depth = 35.43 in. (900mm) | - | - | INCLUDED | - | - | - | |
| OPTION 8031 - Throat depth = 19.69 in. (500mm) | - | - | - | - | INCLUDED | - | |
| OPTION 8040 - Throat depth = 21.65 in. (550mm) | - | - | - | - | - | INCLUDED | |
| Nominal power 50% | kVA | 56 | 56 | 56 | 56 | 56 | 56 |
| Max. welding power | kVA | 200 | 200 | 200 | 200 | 200 | 200 |
| No-load secondary voltage | V | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Maximum short circuit current | kA | 25 | 25 | 25 | 25 | 25 | 25 |
| Thermal current @ 100% | kA | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Supply | *V | 400 | 400 | 400 | 400 | 400 | 400 |
| *Hz | 50 | 50 | 50 | 50 | 50 | 50 | |
| Delayed fuses (400V) | A | 63 | 63 | 63 | 63 | 63 | 63 |
| Mains cables section (L=30m) (4 00V) | in.² (mm²) | 0.04 (25) | 0.04 (25) | 0.04 (25) | 0.04 (25) | 0.04 (25) | 0.04 (25) |
| Compressed air min./max | **bar | 94.3-145 (6.5-10) | 94.3-145 (6.5-10) | 94.3-145 (6.5-10) | 94.3-145 (6.5-10) | 94.3-145 (6.5-10) | 94.3-145 (6.5-10) |
| Consumption for 1000 spots | SCF (N/m³) | 307-92 (8.7-2.6) | 191-60 (5.4-1.7) | 191-60 (5.4-1.7) | 307-92 (8.7-2.6) | 307-92 (8.7-2.6) | 307-92 (8.7-2.6) |
| Min. throat depth | in. (mm) | 15.7 (400) | 31.5 (800) | 31.5 (800) | 15.7 (400) | 19.7 (500) | 19.7 (500) |
| Projection plates throat depth | in. (mm) | – | – | – | 11 (280) | 15 (380) | 15 (380) |
| Max. electrode force (6bar) | lbs. (daN) | 1034 (470) | 660 (300) | 660 (300) | 1034 (470) | 1034 (470) | 1034 (470) |
| Electrode stroke | in. (mm) | 0.2-3.2 (5-80) | 0.2-3.2 (5-80) | 0.2-3.2 (5-80) | 0.2-3.2 (5-80) | 0.2-3.2 (5-80) | 0.2-3.2 (5-80) |
| Double stroke | in. (mm) | 0.0-3.2 (0-80) | 0.0-3.2 (0-80) | 0.0-3.2 (0-80) | 0.0-3.2 (0-80) | 0.0-3.2 (0-80) | 0.0-3.2 (0-80) |
| Water cooling | gpm (lpm) | 1.6 (6) | 1.6 (6) | 1.6 (6) | 1.6 (6) | 1.6 (6) | 1.6 (6) |
| Min. / Max. water pressure | psi (bar) | 36-58 (2.5-4) | 36-58 (2.5-4) | 36-58 (2.5-4) | 36-58 (2.5-4) | 36-58 (2.5-4) | 36-58 (2.5-4) |
| Aerial noise produced | dB(A) | <71 | <71 | <71 | <70 | <70 | <70 |
| Measure condition | |||||||
| Working stroke | in. (mm) | 0.8 (20) | 0.8 (20) | 0.8 (20) | 1.9 (50) | 1.9 (50) | 1.9 (50) |
| Welding time | cycles | 160 | 160 | 160 | 380 | 380 | 380 |
| Welding current | kA | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 |
| Working rating | weld / min. | 15 | 15 | 15 | 6 | 6 | 6 |
| Net weight | lbs (kg) | 617.29 (280) | 716.50 (325) | 716.50 (325) | 617.29 (280) | 650.36 (295) | 650.36 (295) |
| Ø arms | in. (mm) | 2.36 (60) | 2.36 (60) | 2.36 (60) | 2.36 (60) | 2.36 (60) | 2.36 (60) |
| Ø electrode holders | in. (mm) | 1.26 (32) | 1.26 (32) | 1.26 (32) | 1.26 (32) | 1.26 (32) | 1.26 (32) |
| Ø electrode-cone | in. (mm) | 0.75 (19.05) | 0.75 (19.05) | 0.75 (19.05) | 0.75 (19.05) | 0.75 (19.05) | 0.75 (19.05) |
| Projection plates | - | - | - | 45 x M8 | 45 x M8 | 45 x M8 |
