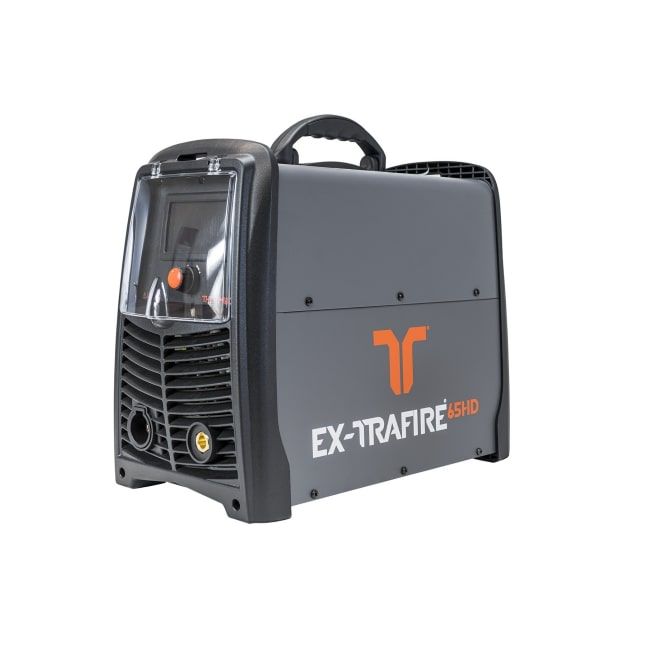

Thermacut Ex-Trafire Plasma Cutter 65HD - High performance cutting machine.
The extremely powerful Ex-Trafire 65HD plasma cutting system is the perfect solution for demanding heavy duty applications in industry and other sectors. Powered by a 400V three phase supply, it delivers clean cuts up to 25mm and achieves severance cuts up to 38mm on mild steel. The Ex-Trafire 65HD brings you impressive performance, high flexibility, and simple operation, allowing you to meet tough demands with continuous operation.

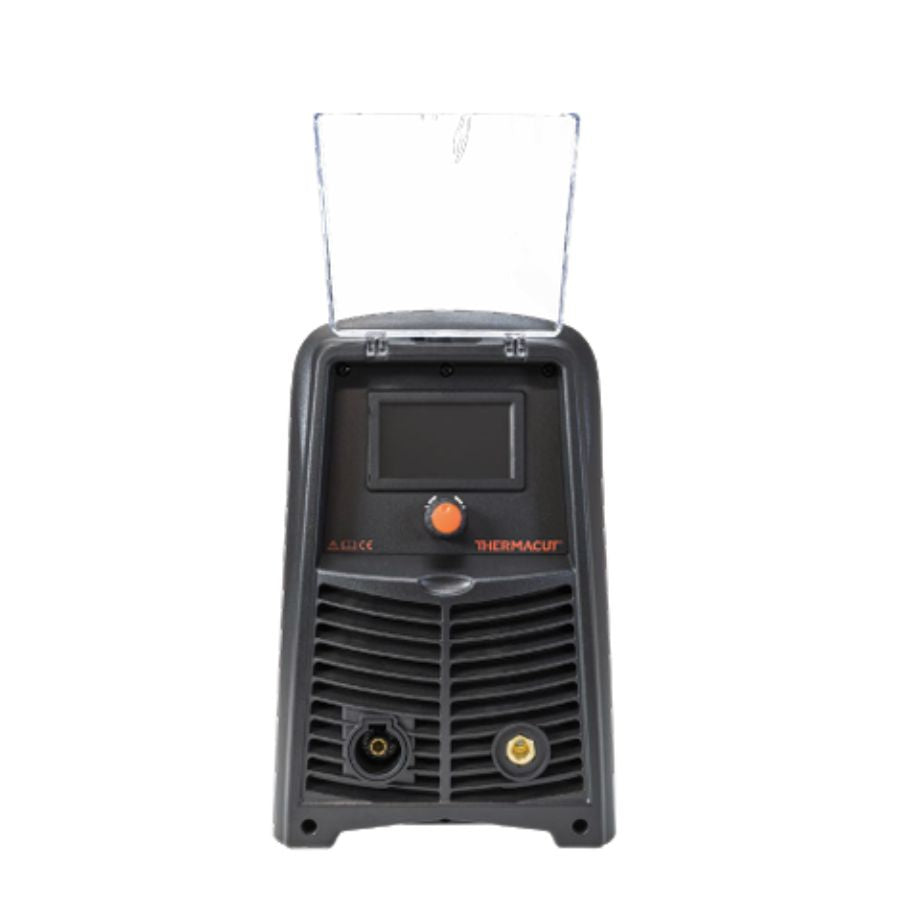

This plasma cutter is designed for ease of use, with a simple control interface with self explanatory icons. Featuring a large 4″ LCD colour display. Minimising errors and ensuring consistent, high quality results every time. Built tough for heavy-duty demands, it delivers the durability and strength needed to withstand intensive, day to day use without compromise. Ideal for automated, mechanised, and manual use. Reliable operation worldwide.
The 65HD Plasma Cutter features Automatic Smart Settings that adjust cutting gas, electricity, and pilot current while compensating for pressure drops. This reduces operating errors and ensuring consistently superior cutting results.
The Ex-Trafire 65HD makes light work of all electrically conductive materials, including black steel, stainless steel, aluminium, and wear-resistant hardox. This machine offers affordable and extremely cost-effective operation. With a 100% duty cycle and very high cutting speed, the HD plasma cutter offers maximum productivity for industrial users. They quickly pay for themselves, even when not in continuous use.
Impressive Performance
- Extremely high cutting speed
- Maximum cutting quality
- Ideal for automated processes
Ready for Industry 4.0

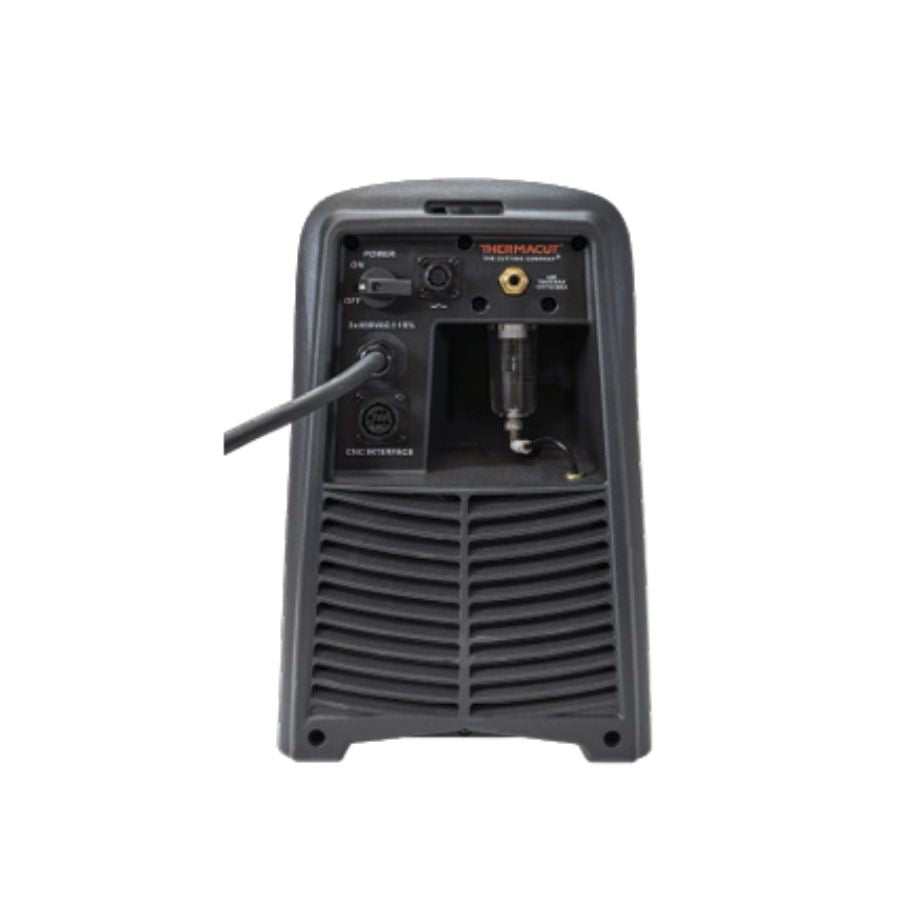

- CAN Bus interface (optional)
- RS 485 interface (optional)
- Expandable and updatable to remain extremely future-proof
- Easy monitoring
Automatic Settings
- Cutting gas media, electricity and pilot current
- Compensation for pressure drops
- Fewer operating errors, better cutting quality
Optimal Cost-Effectiveness
- Low investment costs
- 20% longer consumable lifetime
- Low operating costs
Technical Specifications
| Cutting current | 20-65 A |
| Modes | Cutting / grid cutting / gouging / marking |
| Duty cycle @ 40°C | 100% @ 65 A |
| Rated output voltage | 170 VDC |
| Severance cutting capacity | 38 mm +* |
| Piercing cutting capacity | 25 mm* |
| Recommended cutting capacity | 25 mm* |
| Gouging removal | 2.6 kg/h +* |
| Plasma gas | Compressed air / nitrogen / argon (marking) |
| Air flow [lpm/bar] | 82/5.2 |
| CAN interface | Optional |
| RS 485 interface | Optional |
| RS 422 interface | Optional |
| Preadjusted voltage divider ratio** | 50:1 |
| Input voltage | 3×400 VAC ± 15% |
| Frequency | 50/60 Hz |
| Dimensions (L×H×W) | 560×400×260 mm |
| Weight | 20.4 kg |
| Certification depending on region | CE / CCC / C-TICK / CSA |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
