ZXWS-M350 400V, 350Amps Double Pulse Water Cooled

  • Sale
  • £3,848.60
  • Regular price £5,498.00

Excludes VAT

ZXWS-M350 400V, 350Amps Double Pulse LCD MIG Water Cooled  Package

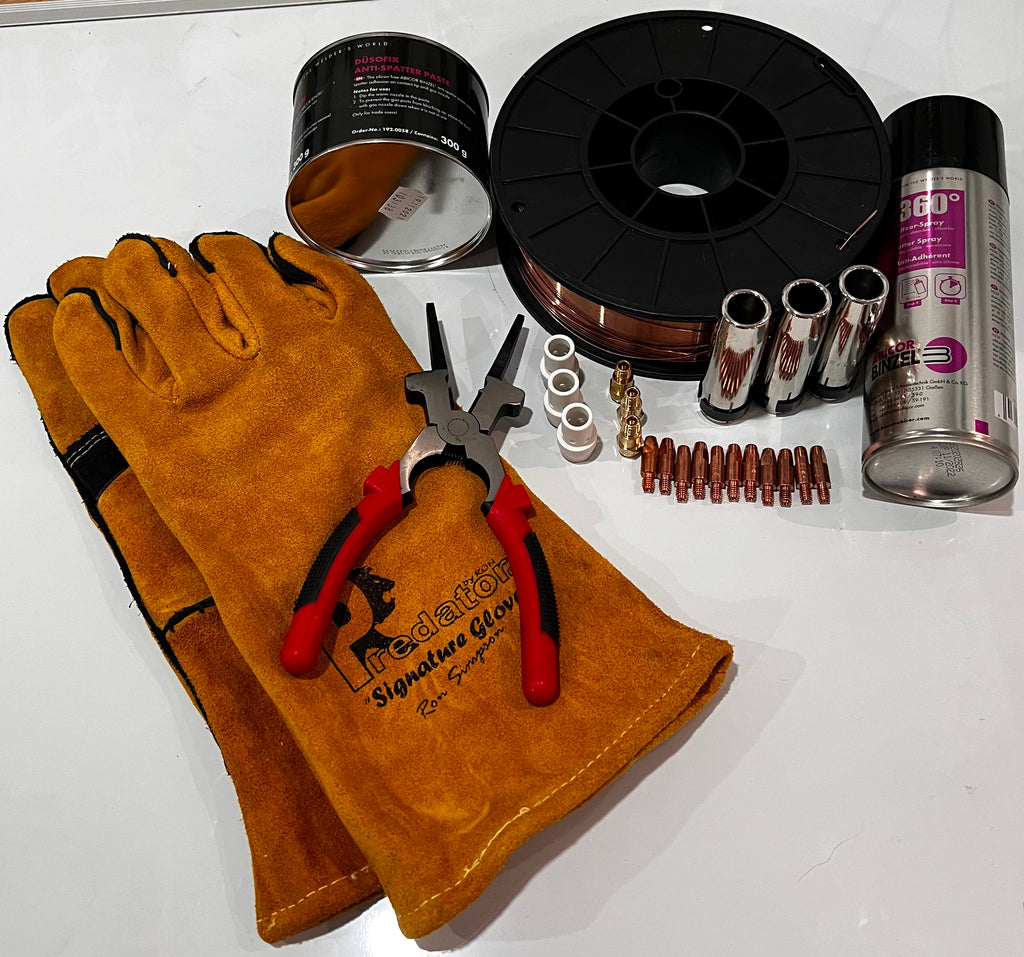

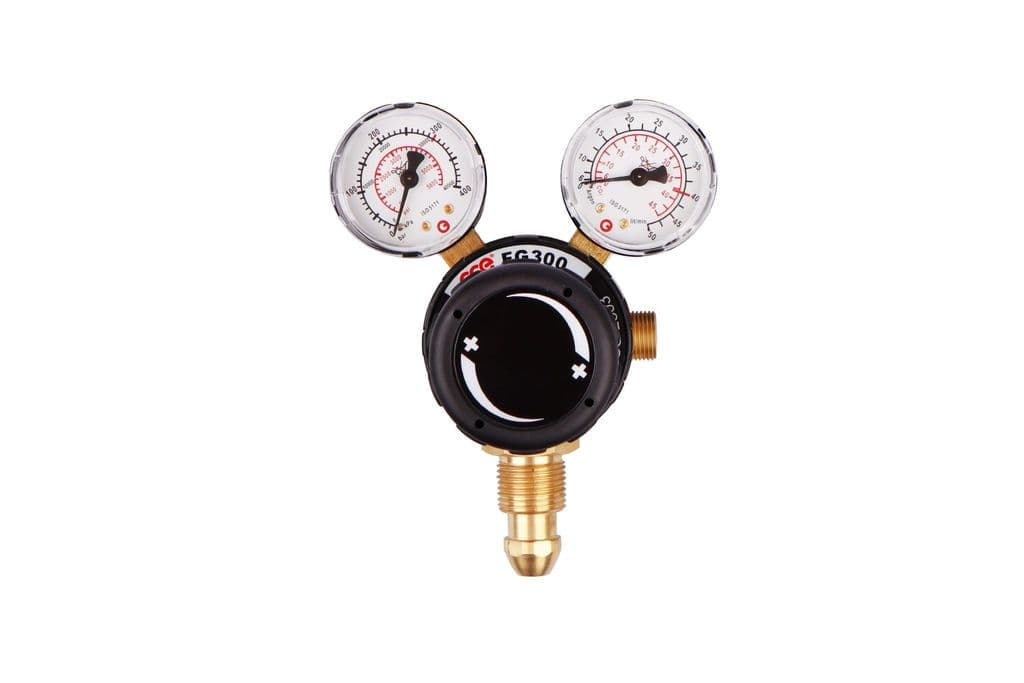

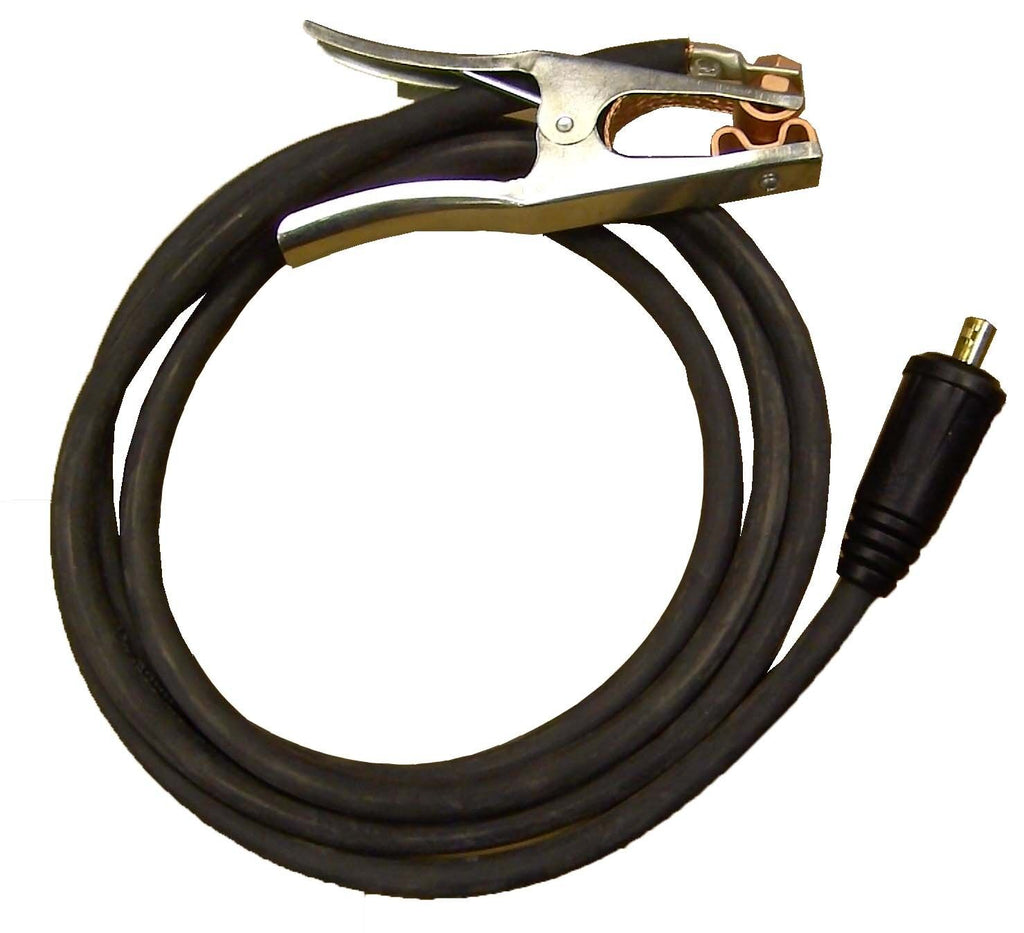

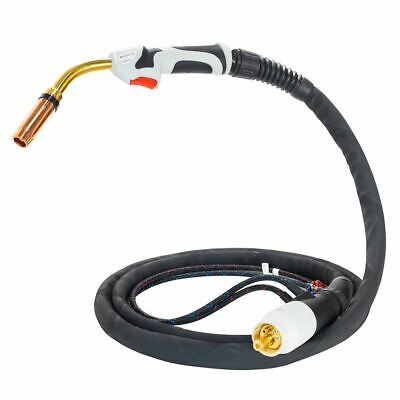

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V 16/32A Plug 4/5 Pin)

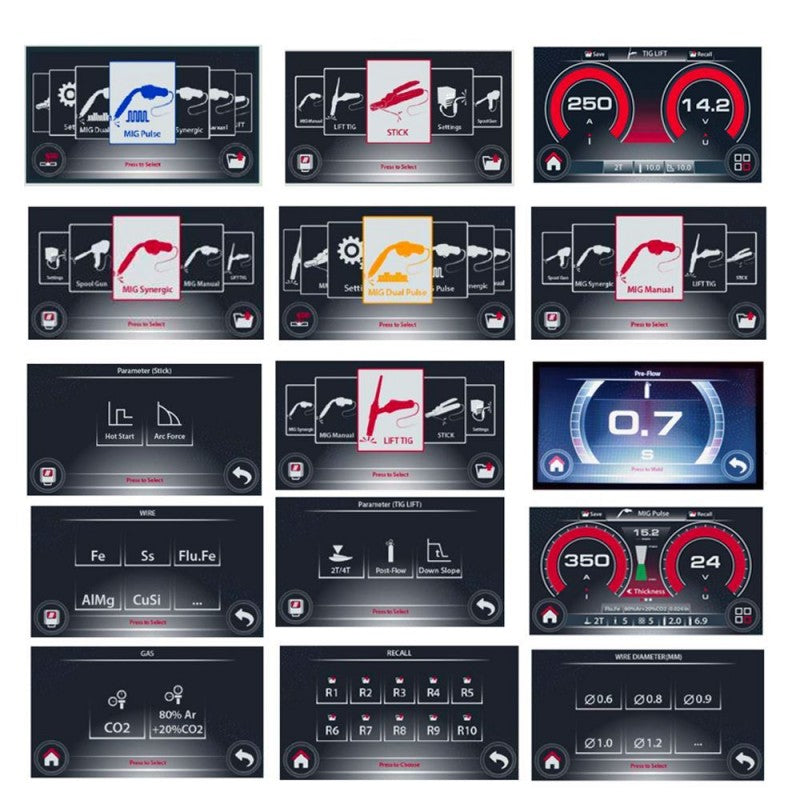

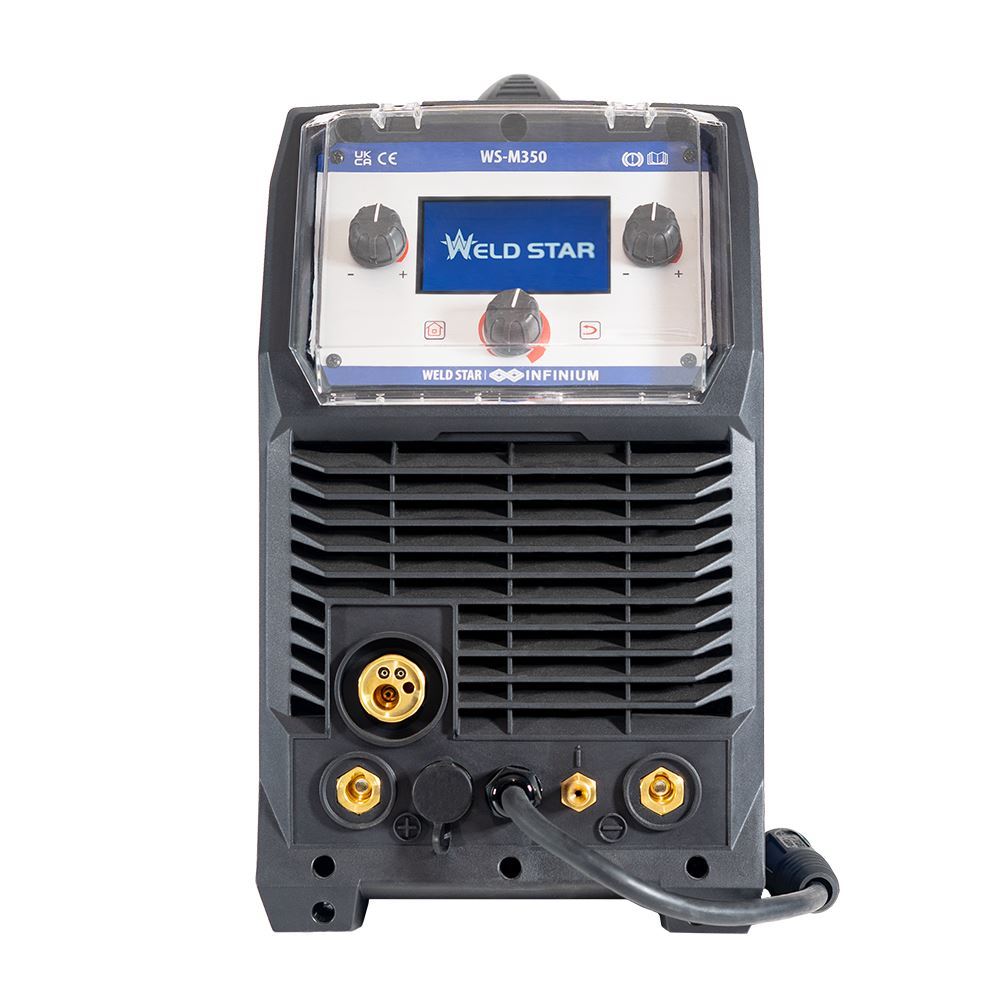

INFINIUM DOUBLE PULSE WELDER LCD 350A The Weld Star Infinium inverter multi process machine has been designed to incorporate the most advanced features and technology offering the operator a user friendly interface via the 4” LCD screen. Available as a stand alone air cooled package or fitted to a trolley with either a water cooler or storage box. Welding processes include: MIG/MAG Synergic, MIG/MAG Pulse, MIG/MAG Double Pulse, MIG/MAG Standard, LIFT TIG DC, MMA DC

TECHNICAL DATA - WS-350P Input Voltage AC 400V ±15% 50/60Hz Ieff (A) MIG 11.3 MMA 12.4 TIG 9.3 Input Power (kVA) MIG 7.8 MMA 8.6 TIG 6.5 Current Range (A) MIG 20 - 350 MMA 10 - 350 TIG 10 - 350 No-Load Voltage (V) MIG 72 MMA 14 TIG 14 Duty Cycle @ 40°C 350A @ 30% Efficiency (%) 85 Idle State Power (w) 25 Power Factor 0.7 Protection/Insulation Class IP23/H Wire reel weight/spool size 5kg / 200mm and 15kg / 300mm Dimensions (LxWxH mm) Air Cooled: 660 X 250 X 425 Water Cooled: 1200 X 380 X 600 Weight (Kg) Air Cooled: 27.9 Water Cooled: 48.0

KEY FEATURES • Advanced IGBT multi process inverter which is lightweight and compact. • Many user functions such as accurate preset current and voltage adjustment, Pulse, 2T/4T and spot operation trigger modes, synergic mode, gas selection, wire diameter selection, electronic inductance adjustment and on-demand fan are available. • With synergic MIG, welding parameters can be automatically selected based on material thickness and voltage with synergic curves for common materials and wires. • Job mode which allows the operator to save and recall 100 jobs within its memory. • Designed for gas and gasless MIG welding wires. • MIG Spool Gun connectivity. • Built in TIG welding features such as Lift TIG, pre/post gas times, 2T/4T, slope up/down and pulse, all to ensure excellent TIG welding characteristics. • Built in hot start arc ignition function which ensures excellent arc ignition in MMA for easier and more reliable arc starting with built in self adaptive arc force technology which maintains the optimum MMA arc conditions during operation even with long welding cables • DC MMA suitable for a wide range of electrodes in MMA • In-built VRD • Auto compensation for mains voltage fluctuation with automatic protective functions including over-current, overload etc. • 5 year warranty
