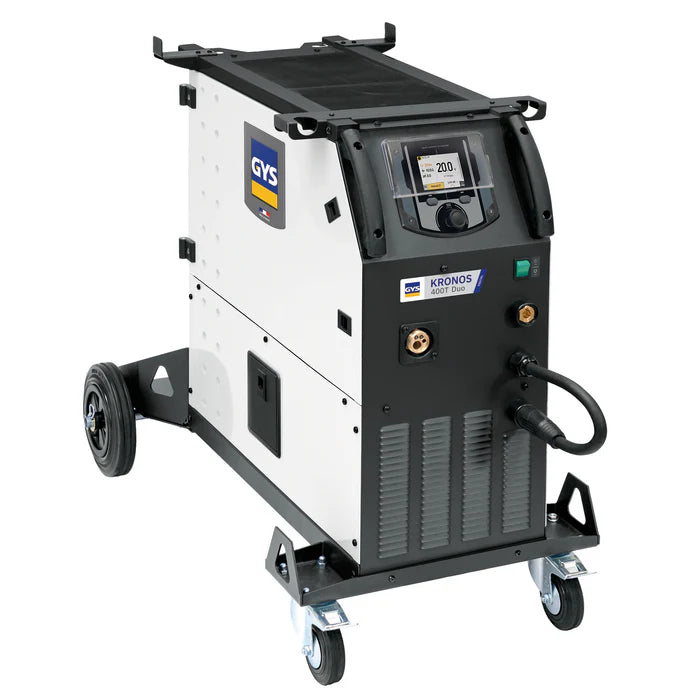

The KRONOS 400T DUO is a multi-process, three-phase inverter welding unit. Thanks to its modular architecture, it can be fitted with a separate wire feeder (optional) for fast operation with 2 types of wire. Its advanced technology ensures excellent arc characteristics for demanding MIG/MAG applications. Built-in synergies make set-up considerably easier and reduce spatter during welding. Its bright, easy-to-use interface provides precise control of welding parameters to ensure perfect quality.
Features
- Multi-process: MIG/MAG, MMA DC / Pulse, TIG DC Lift / Pulse
- Can be equipped with an optional separate WF 35 wire feeder
- Specific synergies for: Steel, AlMg, AlSi, CrNi, CuSi
- New, intuitive, and multilingual 3.5" HMI
- Full machine software and synergy updates available via USB stick
- Storage of up to 200 welding programs (Job) for recurring tasks
- Portability function, the ability to load/save/transport user JOBS and machine configuration via USB stick
- Digital arc control with instantaneous ignition
- Very stable arc which reduces welding spatter
- Four-roller wire feeder with digital encoder for smooth operation
- Easy - streamlined interface suitable for the vast majority of users to achieve the best possible weld quality
- Expert - dedicated interface for the most experienced welders, allows the user to adjust all the parameters of the welding cycle
- Reinforced wheels for stability and manoeuvrability
- Gas bottle support up to 10 m3 (50 L)
- IP23S rated to withstand difficult environments
- Storage compartment
- 4 lifting points for easy handling and safe transport
- Convenient polarity change available on the front panel
Specifications
| EAN Code | 3154020075337 |
| Weight | 55 kg |
| MIG/MAG | It can be equipped with an optional separate WF 35 wire feeder, allowing to quickly switch between 2 different types or diameters. |
| Steel and stainless steel wire diameter | Ø 0.6 to 1.2 mm |
| Aluminium wire diameter | Ø 0.8 to 1.2 mm |
| Flux-cored wire (inverted polarity) diameter | Ø 0.9 to 1.6 mm |
| MMA DC / Pulse | Basic and rutile electrodes |
| TIG DC Lift / Pulse | Yes |
| Specific synergies for | Steel, AlMg, AlSi, CrNi, CuSi |

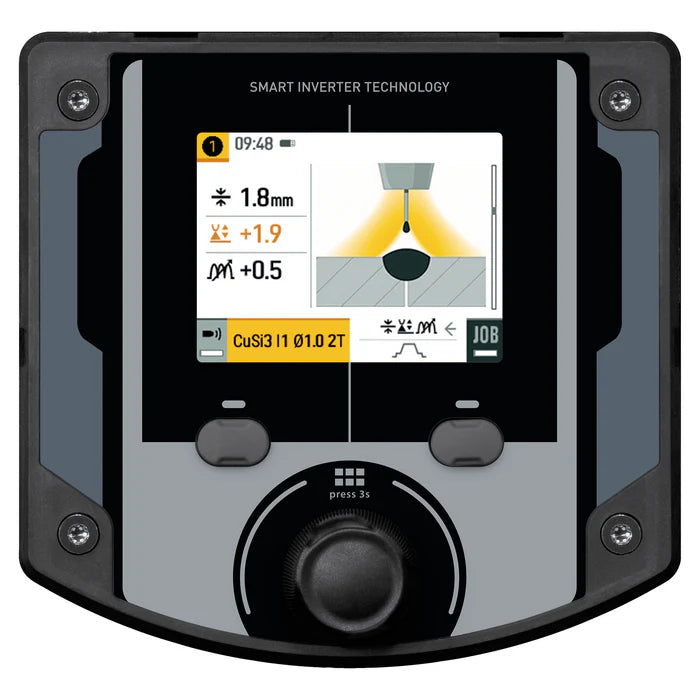

| HMI | New, intuitive, and multilingual 3.5" |
| Software updates | Available via USB stick |
| Welding programs storage | Up to 200 (Job) for recurring tasks |
| Portability function | Ability to load/save/transport user JOBS and machine configuration via USB stick |
| Ventilation system | On-demand ventilation system to reduce dust ingress, and increase energy efficiency |
| Arc control | Digital arc control with instantaneous ignition |
| Arc stability | Very stable arc which reduces welding spatter |
| Wire feeder | Four-roller wire feeder with digital encoder for smooth operation |
| Interface | Easy - streamlined interface suitable for the vast majority of users to achieve the best possible weld quality |
| Expert interface | Dedicated interface for the most experienced welders, allows the user to adjust all the parameters of the welding cycle |
| Wire feeder selection | Automatically selected by pulling the trigger on the torch, or by using the knob on the interface |
| Wheels | Reinforced wheels for stability and manoeuvrability |
| Gas bottle support | Up to 10 m3 (50 L) |
| IP rating | IP23S rated to withstand difficult environments |
| Storage | Storage compartment |
| Lifting points | 4 lifting points for easy handling and safe transport |
| Polarity change | Convenient polarity change available on the front panel |
| Voltage | 400 V |
| Amperage | 15 - 400 A |

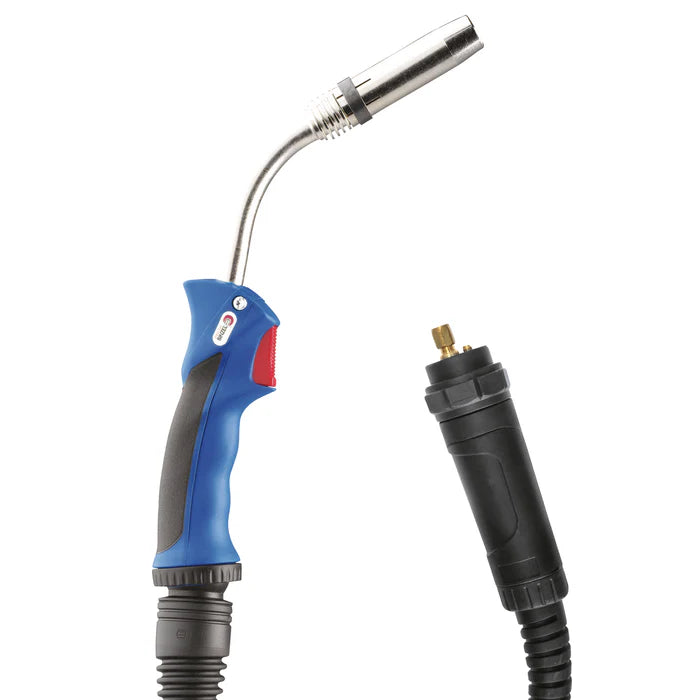

- Supplied with 4M MIG torch

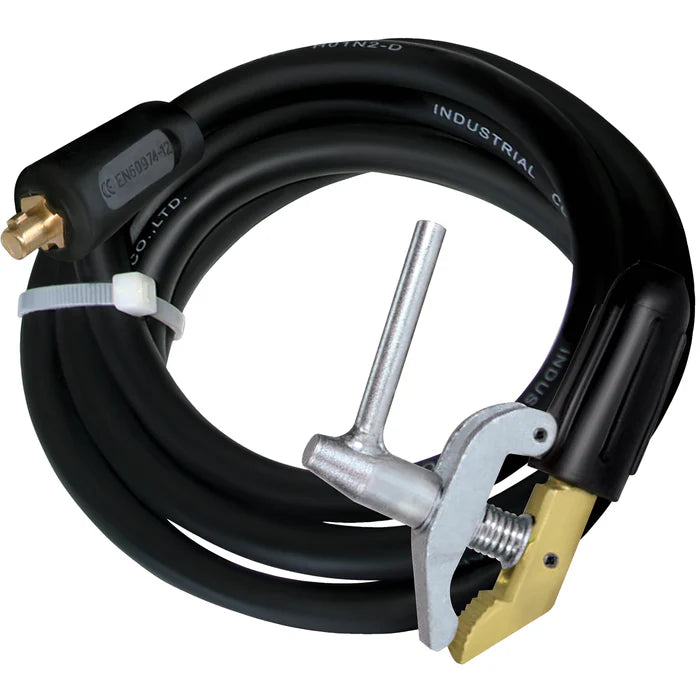

- 4M Work return cable

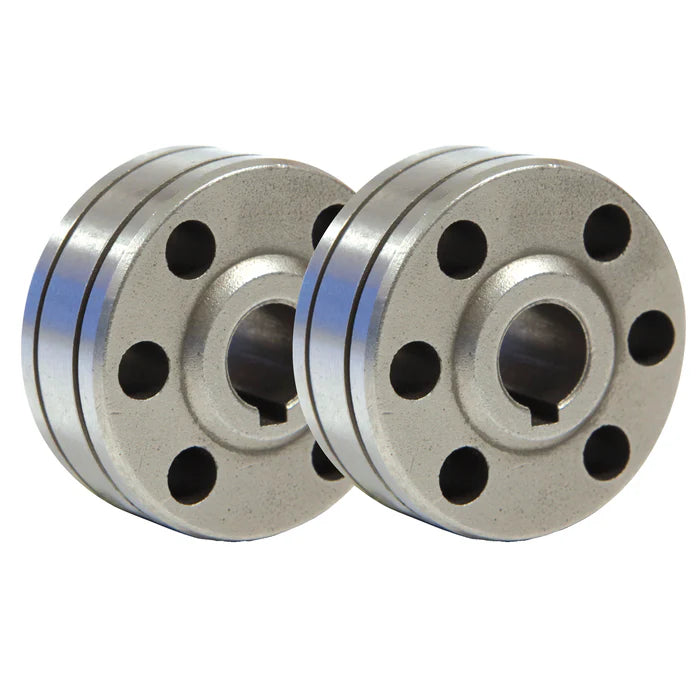

- 4 drive roll feed mechanism
- Synergic control easy set up
- Heavy duty robust package
- 3 Year parts and labour warranty

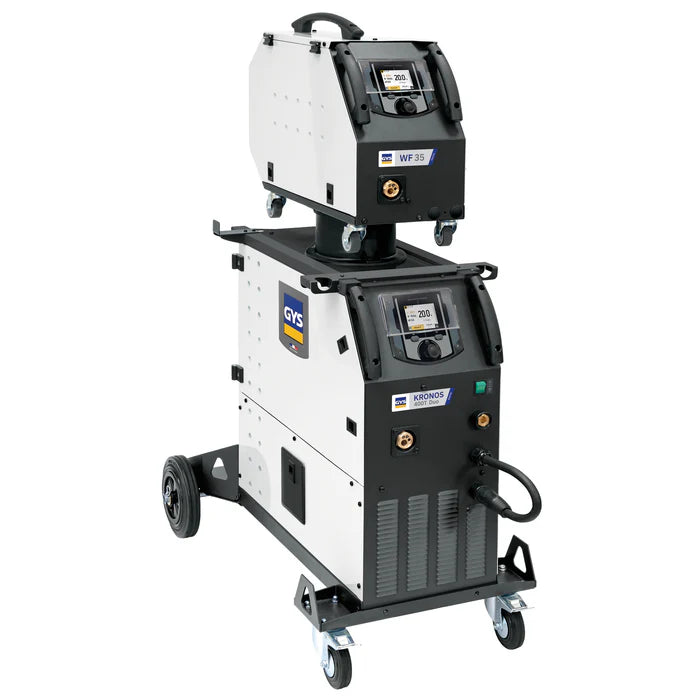

Important.. The picture with the wire feeder control on top of the power source is a option. This allows the operator to have two different wire types/sizes loaded and pick up and use which torch you want to weld with. The unit will change to the saved settings once the torch trigger is pulled.
