DWT Heavy Duty Folding Pipe Stands – Max 2725kg.
Adjustable height 406mm-724mm/675mm-1130mm/914-1549mm
A classic-style folding mobile pipe stand jack for welding and cutting pipe.

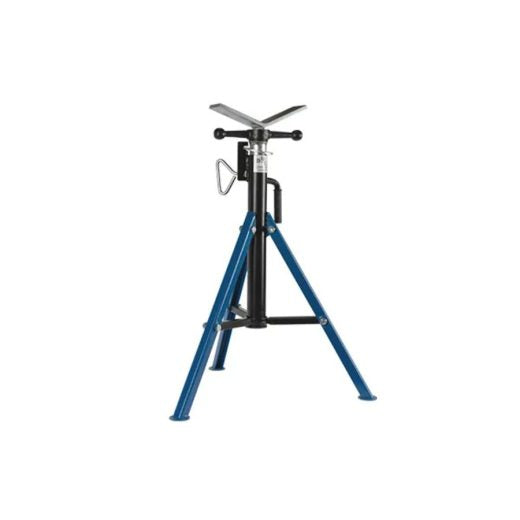

This stand is a foldable tripod design with a V-shaped head for resting pipe across it so that you can easily access it for cutting or welding.
The height of the jack can be adjusted quickly using the turn key to extend the body, or using the vice-like lever on the neck for fine-tuning (if you’re adjusting it to meet another workpiece or to keep it level in a circular saw). Lightweight (11.4kg) and cost-effective, this stand is easy to transport and set up, making it perfect for on-site work as well as workshop fabrication. Can safely take up to 2,725kg in load weight.
The pipe jack is designed for stability with three legs that fold outward from the body with a safety catch to prevent accidental collapse. The body extends low for added support for the legs, lowering the centre of mass for added stability.

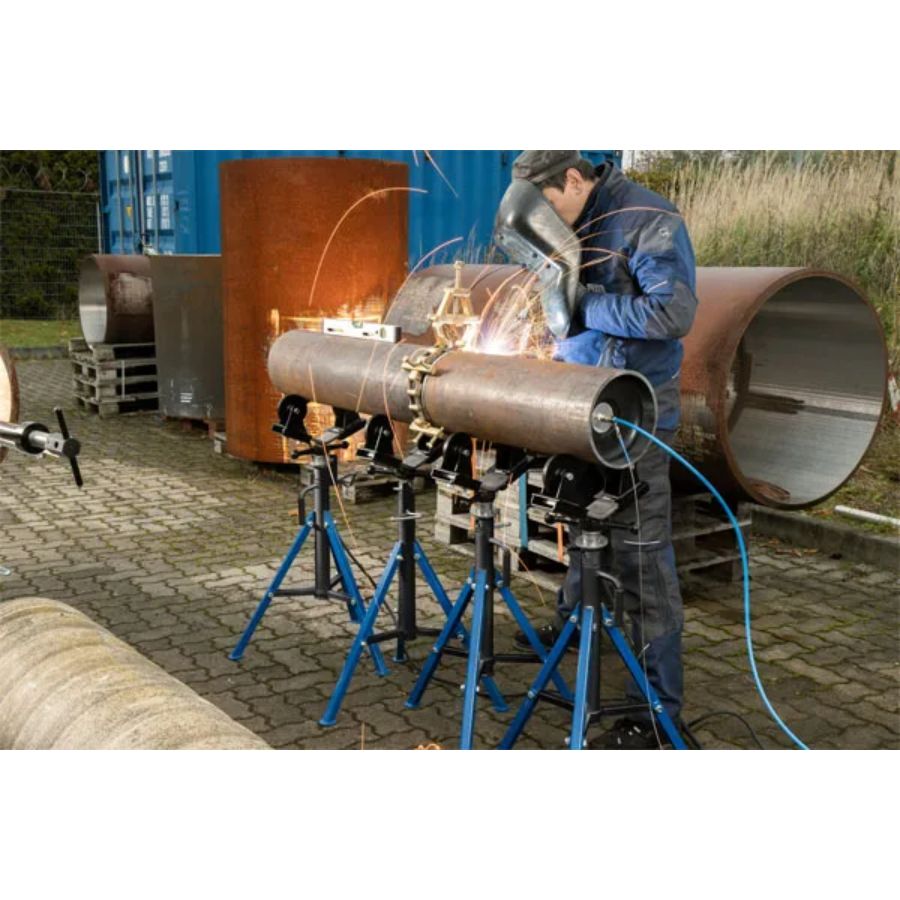

Can be used singularly or laid in series to support longer lengths of pipe.
Features

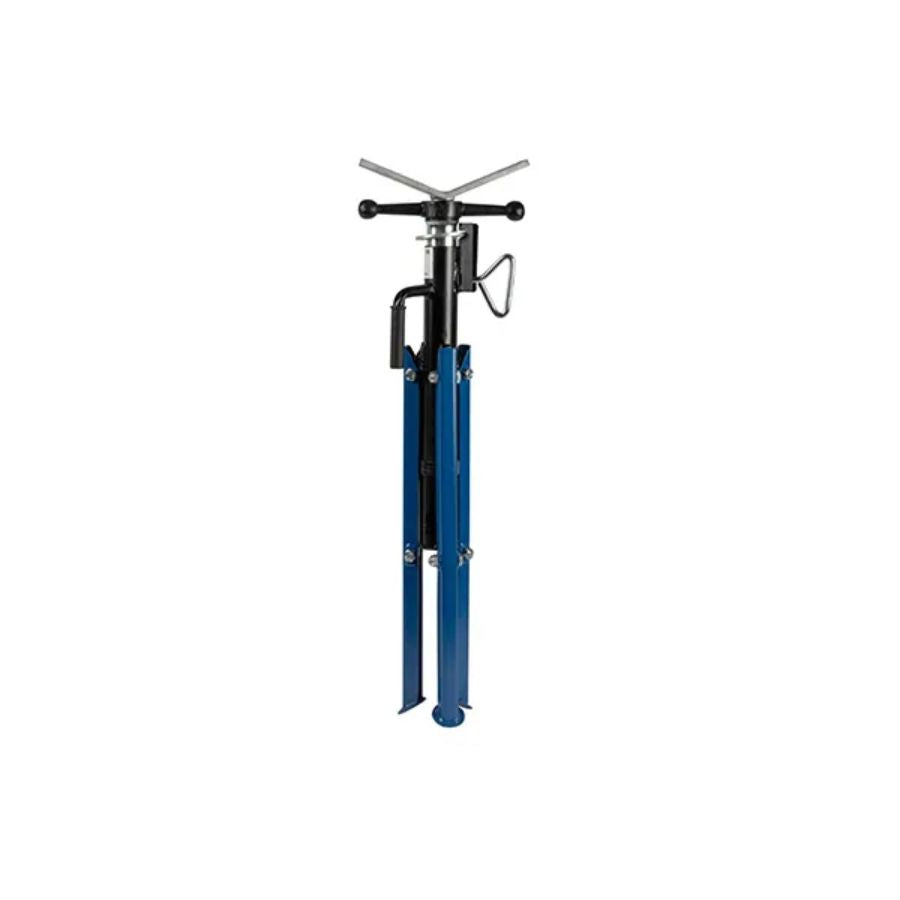

- Folds up for storage ease
- Fast-action lock washer for quick height positioning
- Set screw for double margin of safety
- Set screw can lock jack head to stand for transportation
- Each pipe stand includes a standard V head, additional heads available
Specification
- Capacity: 2725kg
- Min. height: 406 mm/675mm/914mm
- Max. height: 724 mm/1130mm/1549mm
- Weight: Between 11.4 kg/16.8kg
- Pipe Diameter: up to 900mm
