Jasic

Jasic JT-300P 400V, 300Amps

  • Sale
  • £1,380.40
  • Regular price £1,972.00

Excludes VAT



JT-300P 400V, 300Amps TIG300DC Digital Package

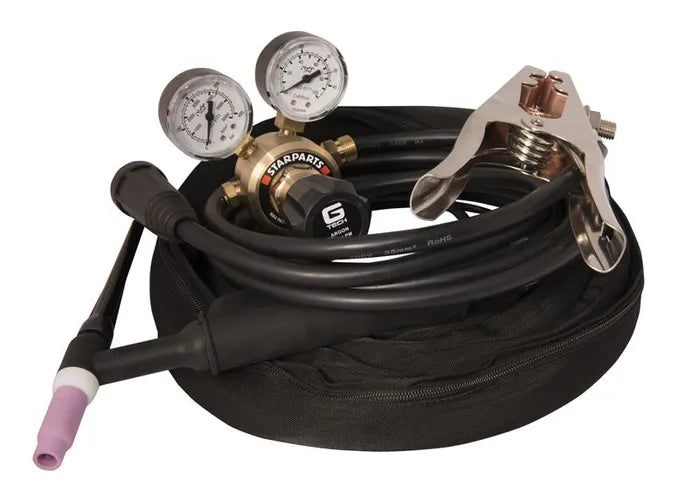

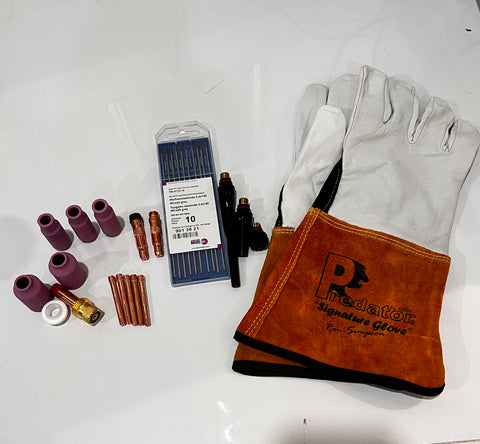

All TIG Packages incl.Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin

The Jasic TIG 300 DC Pulse inverter is equipped with industrial grade components and microprocessor control for high accuracy and performance. This technologically advanced inverter with a digital control panel allows for feature rich options and provides 8 channel automatic storage of the welding parameters. The unit is designed to IP23S S class for use in the harshest environments. This modular design TIG welding system can be assembled with an optional trolley and water cooler where required.

Technical Data Input Voltage AC 400V +/-15% - 50/60 Hz Ieff (A) 9.9 Input Power (kVA) 11 Current Range (A) TIG 5 - 300 MMA 20 - 210 Duty Cycle @ 40°C TIG 300A @ 20% MMA 210A @ 50% No-Load Voltage (V) 60 (11.8V - VRD) Efficiency (%) 85 Protection/Insulation Class IP23S/F Dimensions (LxWxH mm) 566 x 224 x 405 Weight (Kg) 19.4

Key Features • TIG DC Pulse with digital control • Program memory storage • Microprocessor control of a wide range of functions • HF and lift TIG • Remote control interface • VRD function • Digital display • Intelligent fan and cooler control • Excellent welding characteristics • Protection system to enhance equipment life • S Suitable for welding in an environment with increased risk of electric shock • Water cooled option • Generator friendly**

Brochures & Manuals

Sales Leaflet

Operator Manual

TIG Welding Guide

TIG Inverter Selection Guide
