Ultimate operator control with unrivalled weld performance.

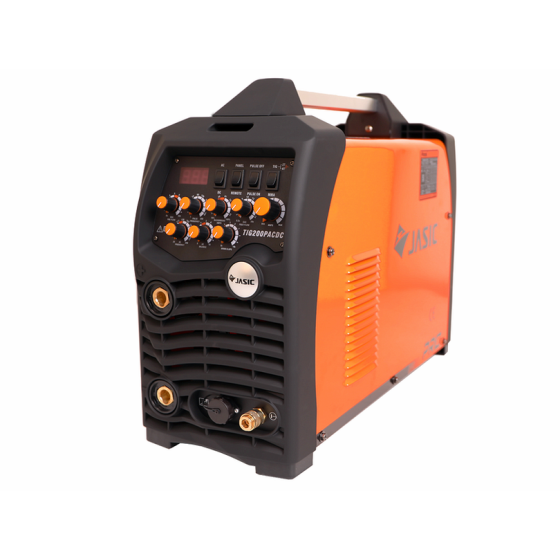

The 200A Pulse AC/DC is a technologically advanced single phase inverter power source for medium duty production work. The innovative and user friendly analogue control panel ensures full control of the welding parameters. The excellent technical characteristics of the 200 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
Features
-
TIG Pulse AC/DC with analogue control
-
Digital display
-
Peak current control, 2T/4T
-
Pre-post flow time, up/down slope
-
Pulse adjustment
-
Pulse frequency, pulse duty, arc force, cleaning width
-
Remote control interface
-
AC function for aluminium and aluminium alloys
-
DC TIG function for carbon steel,
-
copper and non-ferrous metals
-
Smooth arc and stable welding performance
-
Heavy duty 35/50 dinse sockets
-
VRD Function
-
AVR generator friendly
-

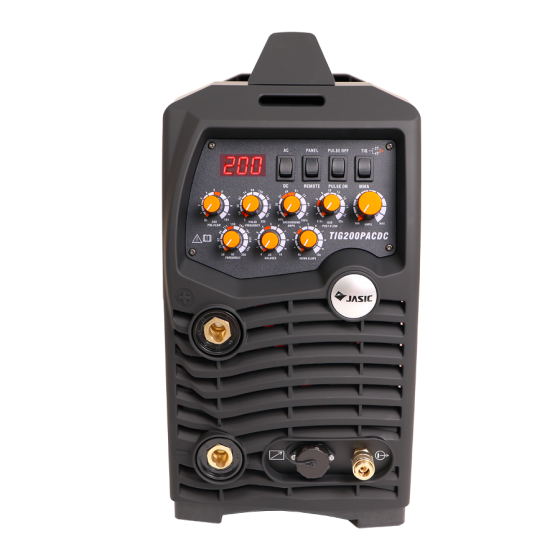

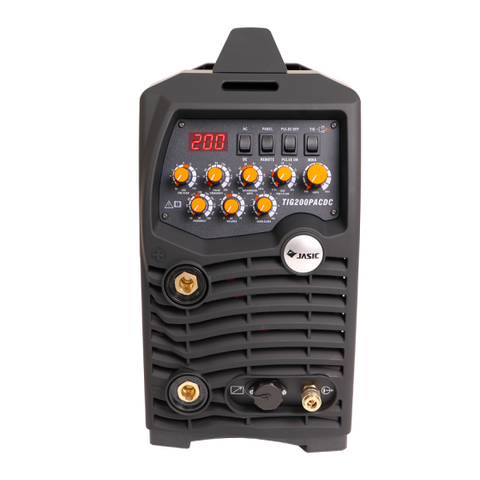

Digital Display
-
AC/DC Selection Switch
-
Local/Remote Switch
-
TIG Pulse Switch
-
Welding Process Switch
-
Pre-flow Gas Control Dial
-
AC Frequency Control Dial
-
Pulse Frequency Control Dial
-
AC Balance Control Dial
-
TIG Pulse Background Control Dial
-
Downslope Time Control Dial
-
Post-flow Gas Control Dial
-
Current Control Dial
Technical Data
Input Voltage: AC 230 V, 50/60 Hz
Ieff (A): 17
Input Power: 7.1 kVA
Current Range: TIG 5–200 A / MMA 10–160 A
Duty Cycle @ 40 °C: TIG 200 A @ 25% / MMA 160 A @ 30%
No Load Voltage: 65 V (7 V with VRD)
Protection/Insulation Class: IP21S / B
Dimensions (L × W × H): 566 × 224 × 405 mm
Weight: 15 kg
