ECNA ATEX BALANCER

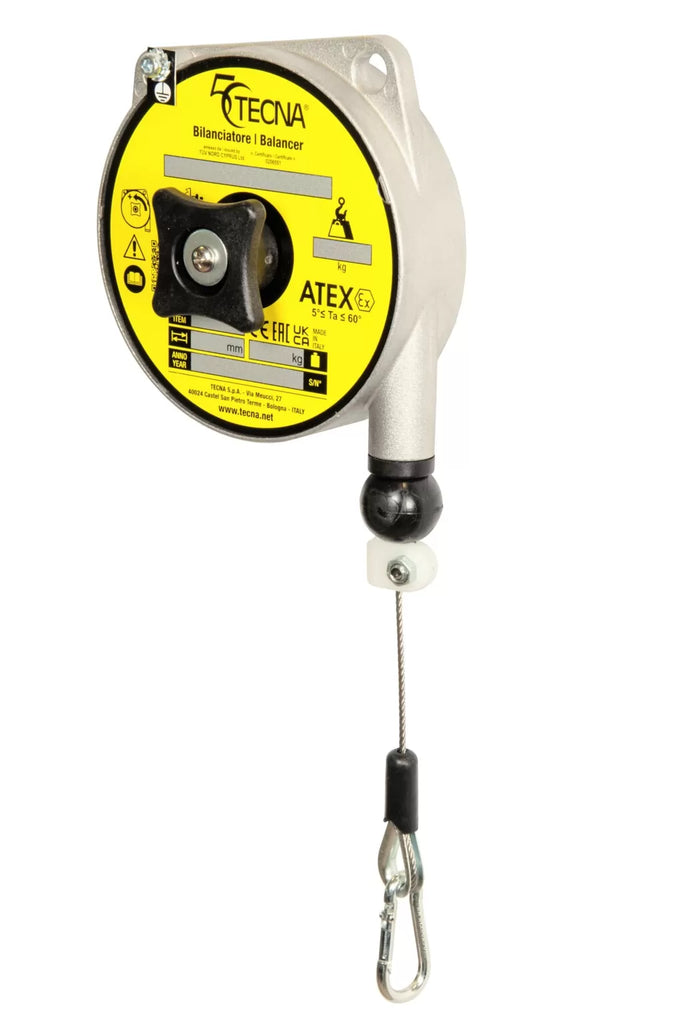

TECNA ATEX Balancer, models (9310AX-9311AX-9312AX-9313AX): equipped with a stainless steel cable, with a load capacity ranging from 0.2 to 3 kg and a cable stroke of up to 1600 mm.
The balancer is specifically designed for use in environments with potentially explosive atmospheres, where safety is a top priority. These ATEX-certified spring balancers are suitable for settings with flammable gases or combustible dust, ensuring safe operation in compliance with safety regulations. Their structure is designed to reduce the risk of sparks and electrostatic build-up, increasing protection in critical environments. Additionally, the materials used provide corrosion resistance and long-lasting durability, making them ideal for industrial applications in the chemical, petrochemical, and pharmaceutical sectors.
Features
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9310 | 9311 | 9312 | 9313 | |
| Capacity | kg | 0.2-0.5 | 0.4-1 | 1-2 | 2-3 |
| Stroke | mm | 1600 | 1600 | 1600 | 1600 |
| Net weight | kg | 0.55 | 0.57 | 0.60 | 0.74 |
| Gross weight | kg | 0.7 | 0.7 | 0.7 | 0.8 |
| Package dimensions | mm | 204 112 62 |
204 112 62 |
204 112 62 |
204 112 62 |
