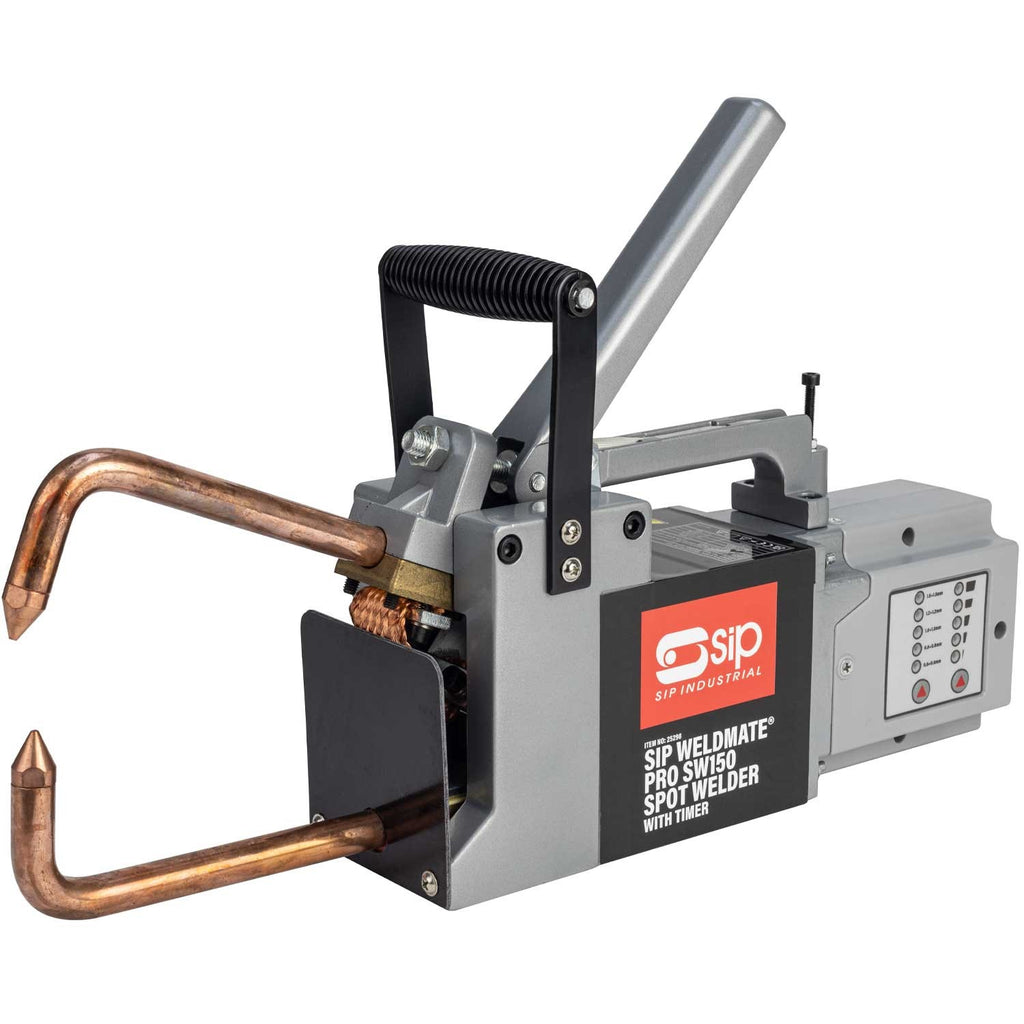

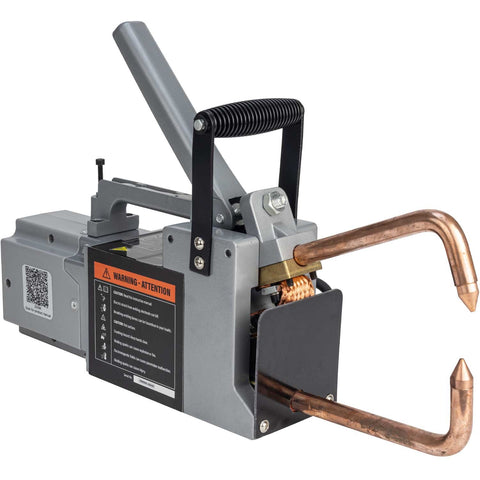

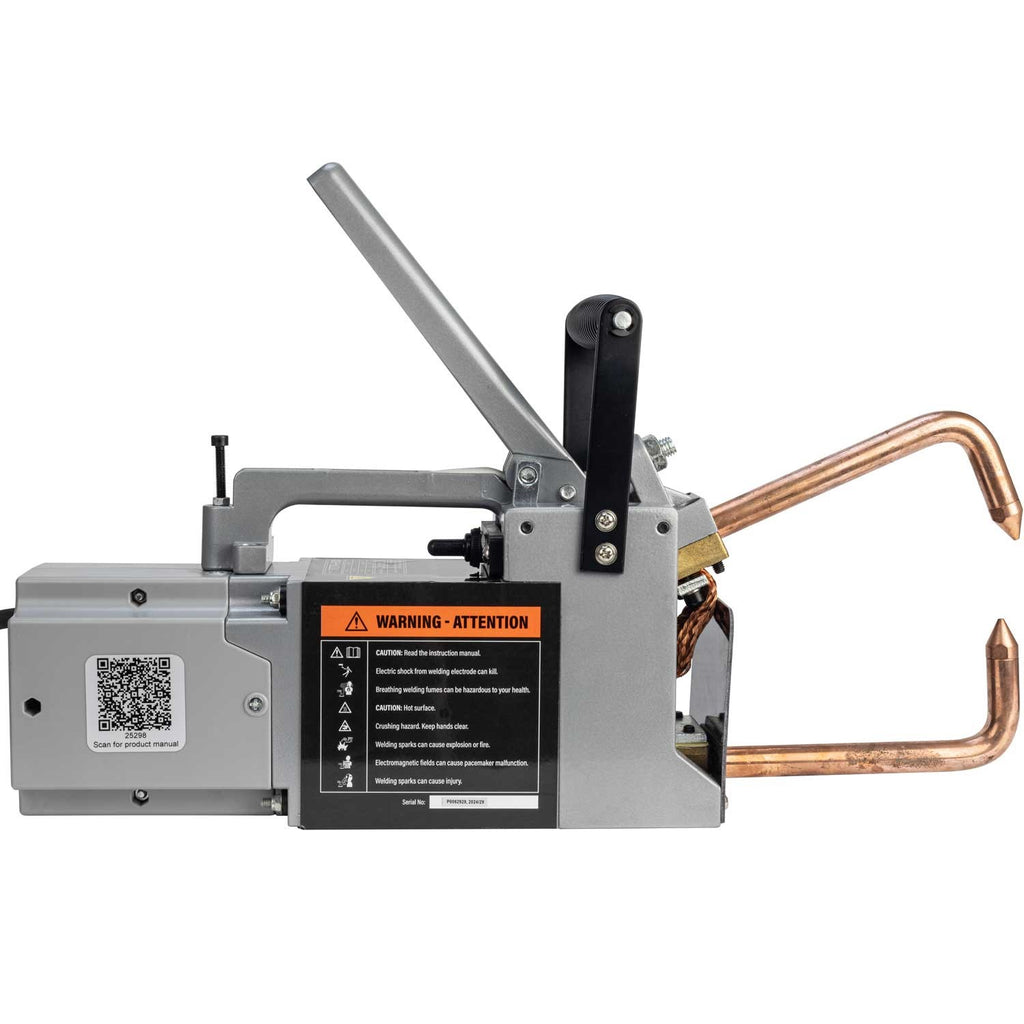

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.
Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm + 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.
For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.
KEY FEATURES
- Maximum welding thickness of 1.5mm + 1.5mm
- Timer function of 120~900ms for consistent welds
- Fitted with heavy-duty weld switch for reliable operation
- Operates from a 13A supply added for ease-of-use

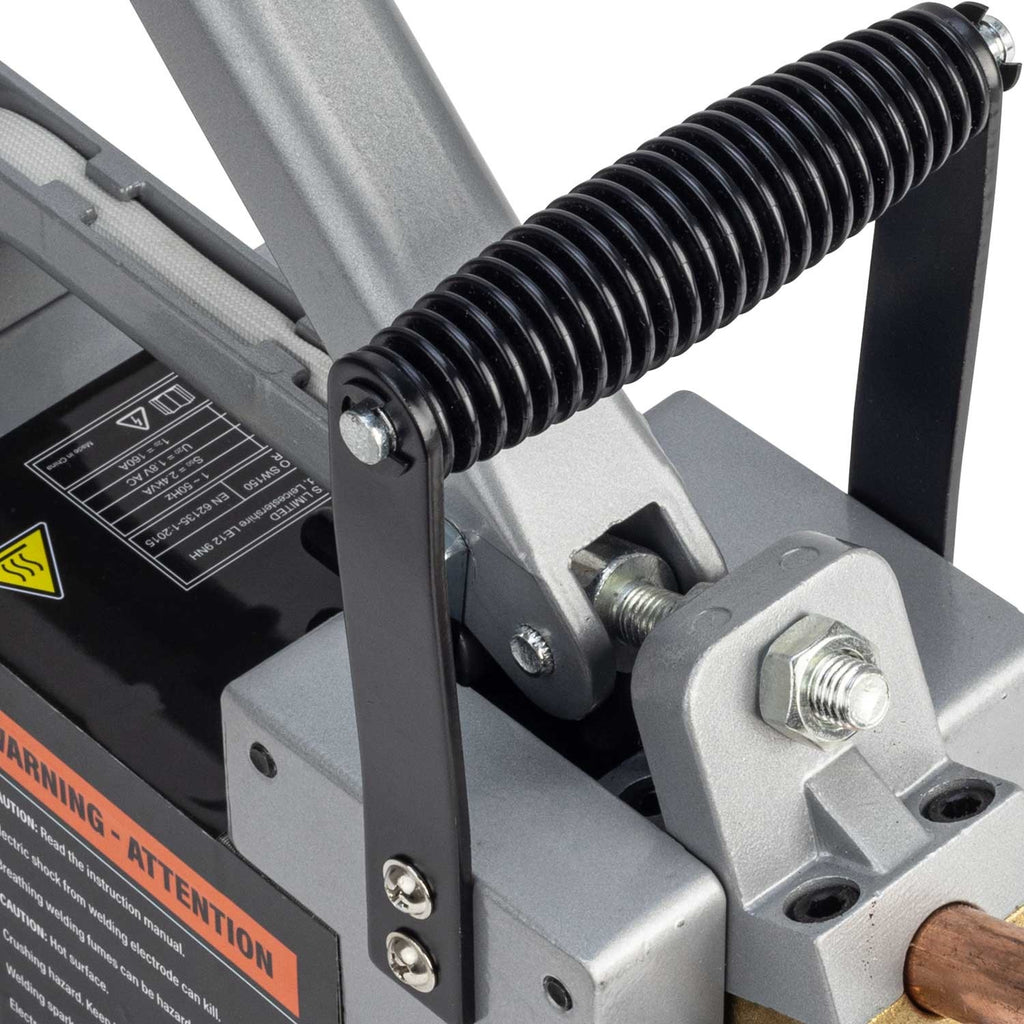

- Heavy-duty carry handle for work area movement
- Supplied with replacement 16mm straight electrodes
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.
Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm + 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.
For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.
Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.
What's in the box?: 1x SIP WELDMATE® PRO SW150 Spot Welder with Timer, 2x 16mm straight electrodes, 1x steel carry handle with 4 fixing screws. User manual available via QR code sticker applied to product.
SIP 2-Year Standard Silver Warranty

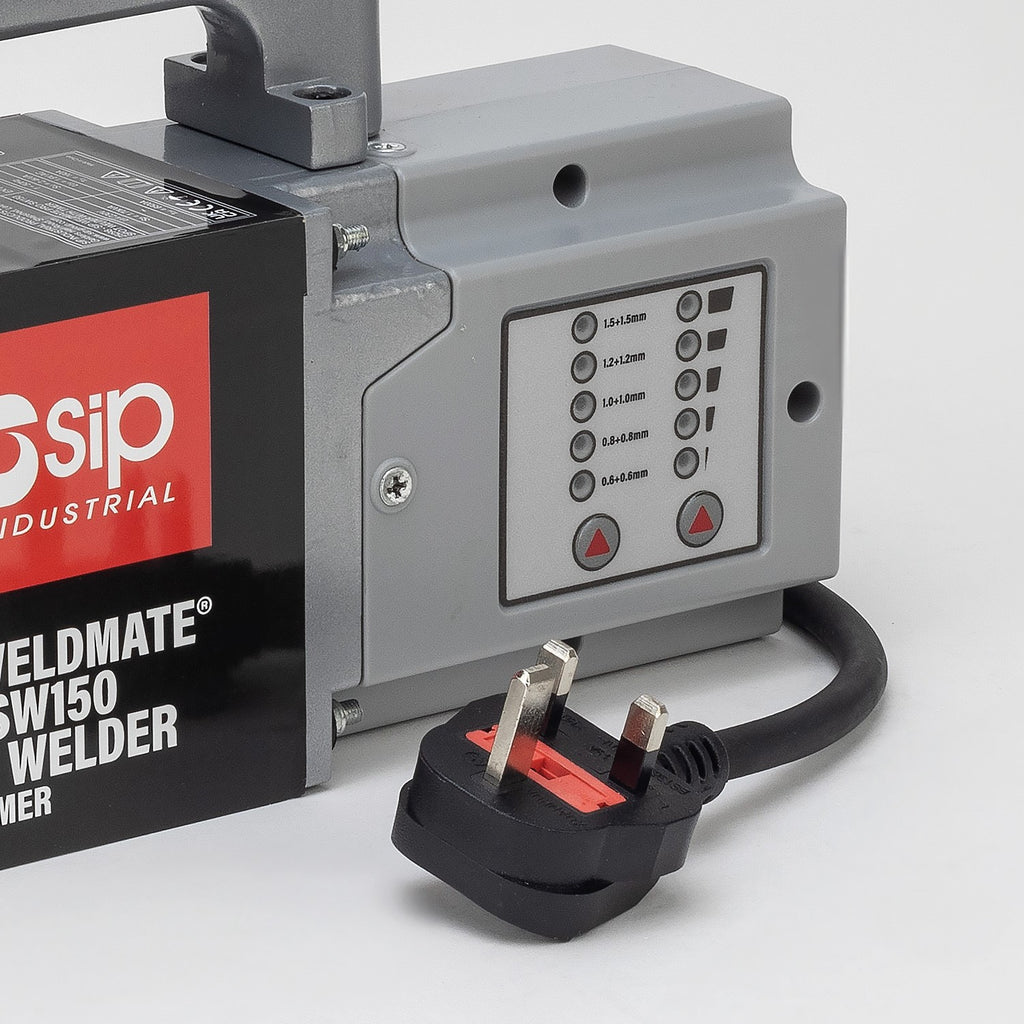

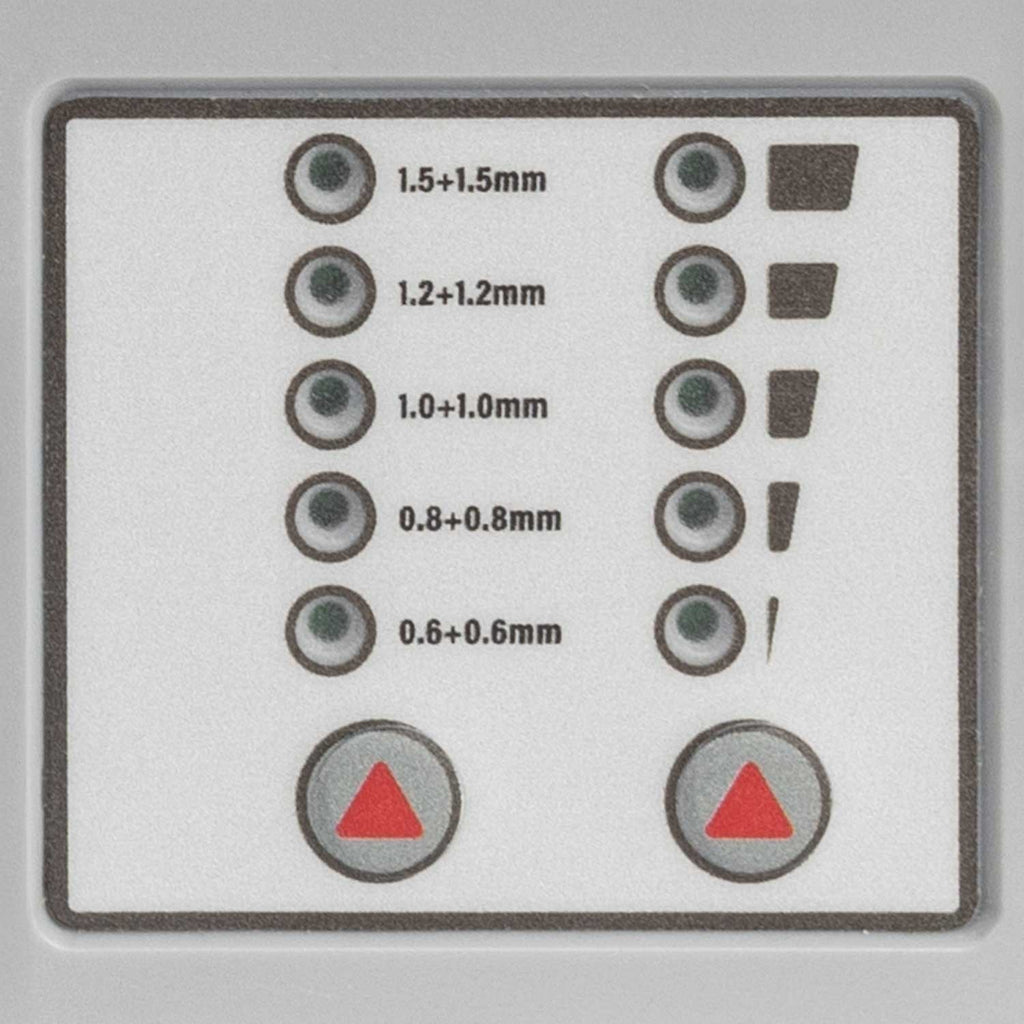

INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS & TIMER FUNCTION FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS
- Maximum welding thickness of 1.5mm + 1.5mm with sufficient welding current output to achieve 3 welds per minute.
- A microprocessor-controlled timer function allows settings of 120~900ms for consistent welds.
- Offers strong localised welds with minimal heat distortion to the surrounding sheet metal.
- Suitable for mild steel, stainless steel and galvanised steel.

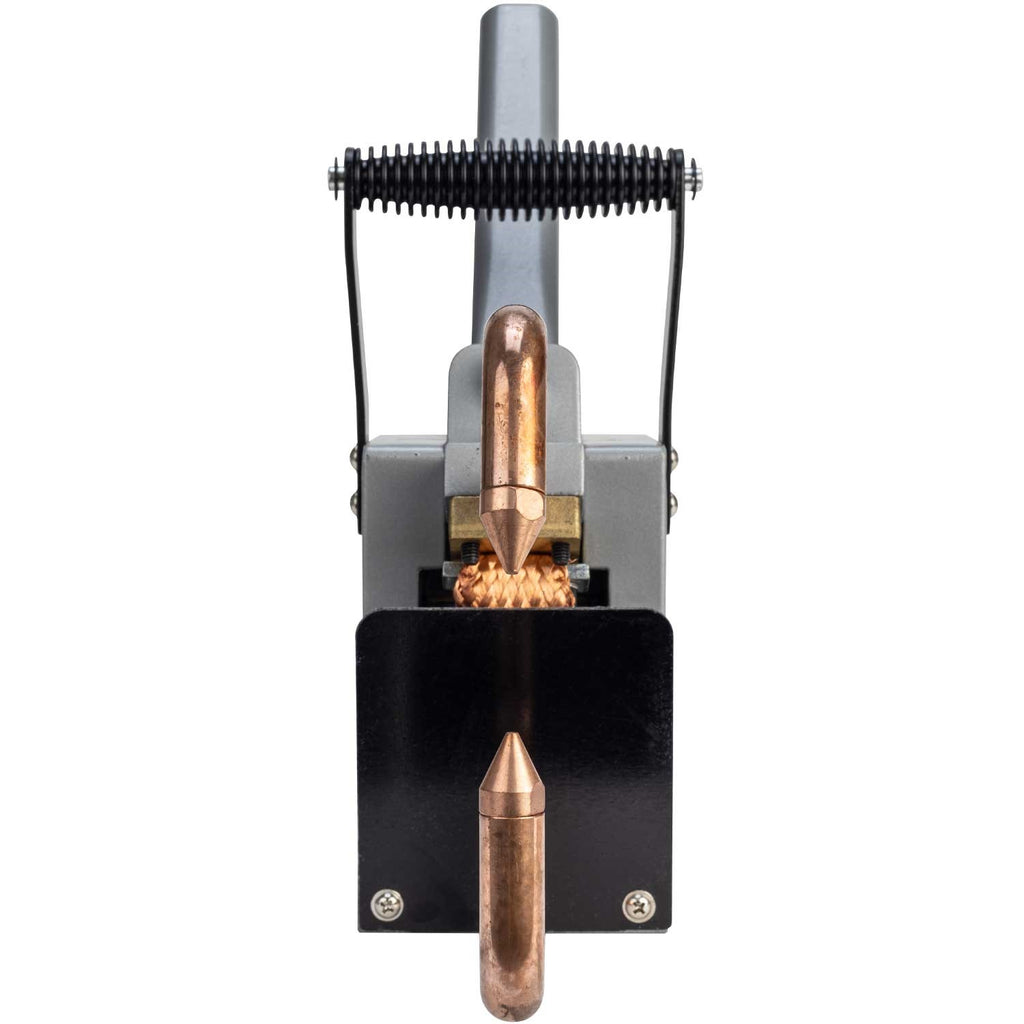

- Handle allows for easy alignment of the electrodes for accurate welding performance.
- Fitted with a heavy-duty weld switch for reliable operation in demanding environments.

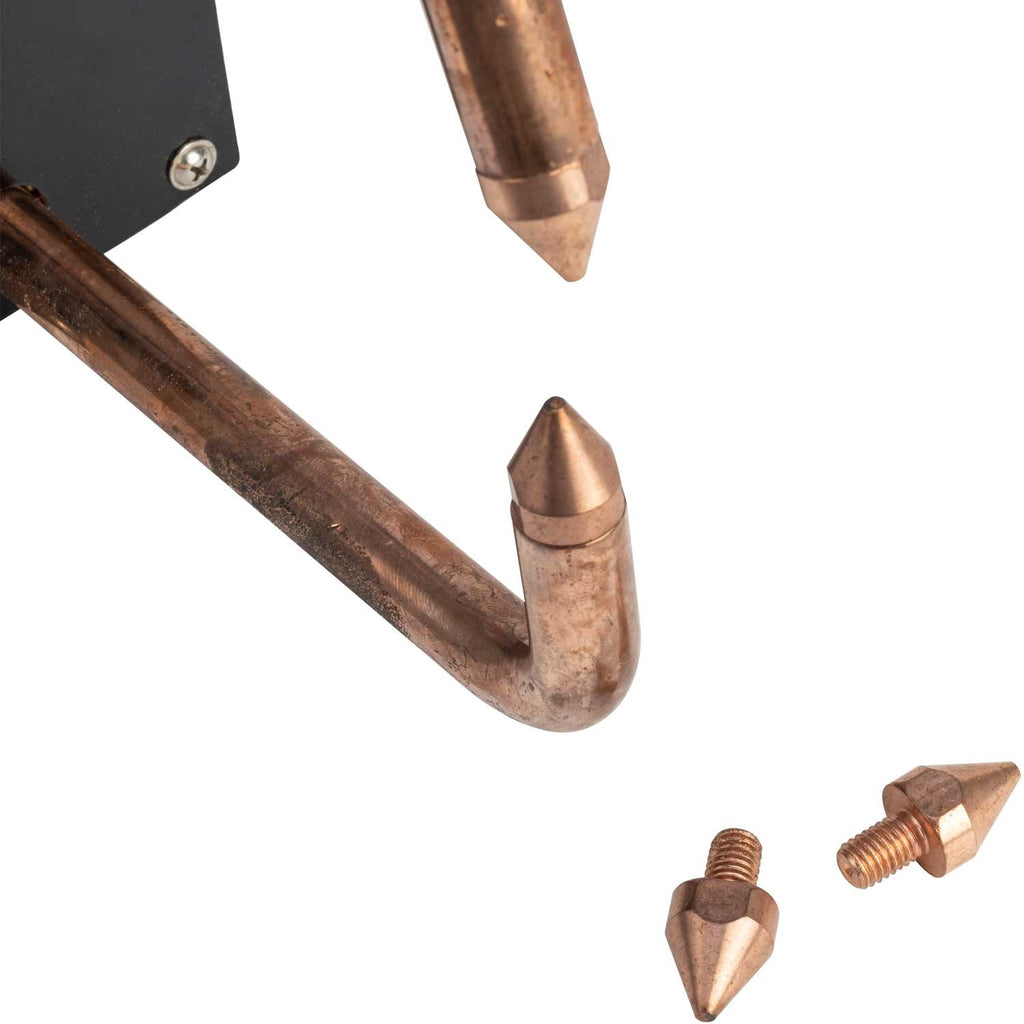

- Supplied with a set of replacement 16mm copper/chrome electrodes.

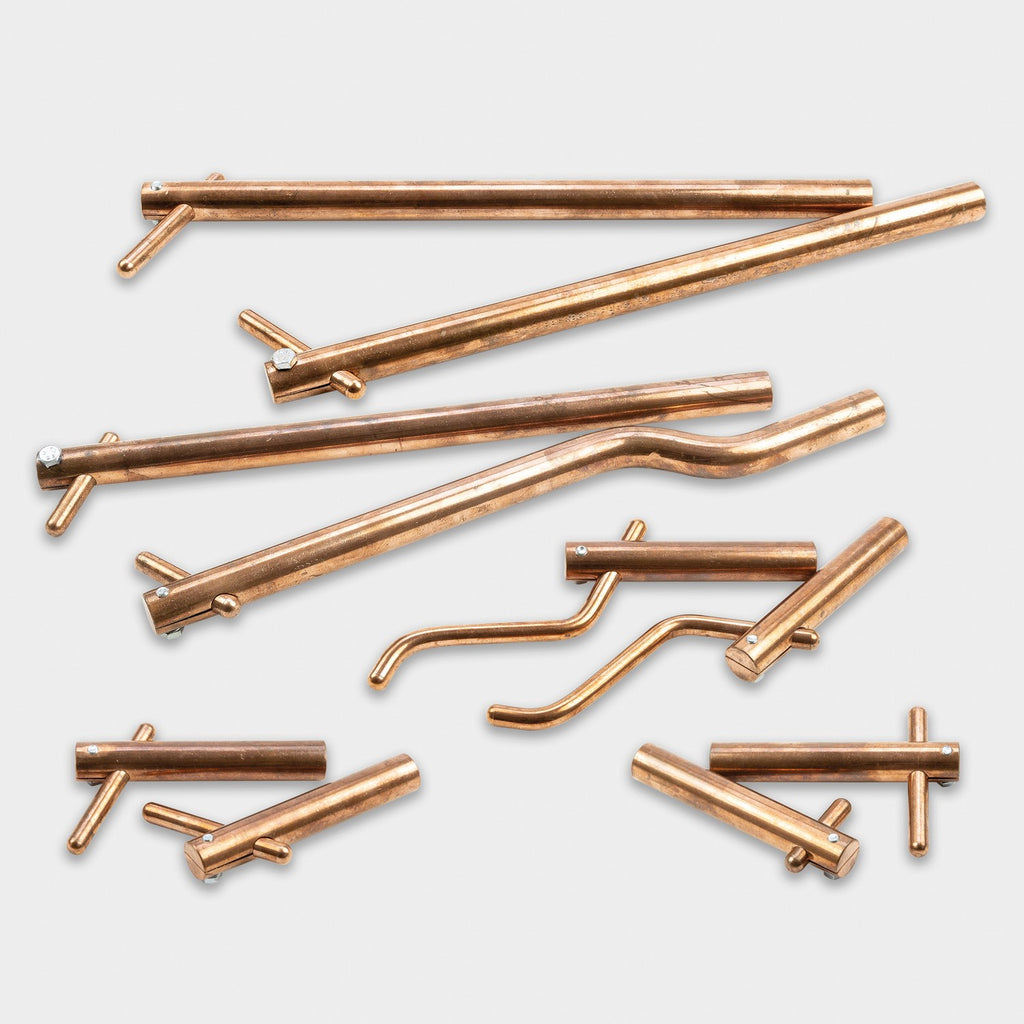

ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY
- These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit.
- The 16mm electrode arms offer added dexterity for a variety of welding applications
- 25418 SIP Spot Welder 120mm Arms with Straight Electrodes (⌀ 16mm)
- 25417 SIP Spot Welder 120mm Arms with Offset Electrodes (⌀ 16mm)
- 25419 SIP Spot Welder 350mm Arms with Offset Electrodes (⌀ 16mm)
- 25415 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (⌀ 16mm)
- 25416 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (⌀ 16mm)
- 25424 SIP Spot Welder 5pc Bodywork Kit (⌀ 16mm) (for 25298)
Technical Information
| ITEM NO. | 25298 |
| Input Supply: | 230v (13A) |
| Max. Welding Thickness: | 1.5mm + 1.5mm |
| Spot Duration: | 120-900ms |
| Welds Per Minute: | 3 welds per minute |
| Max. Electrode Force: | 460N |
| Net Weight: | 12.6kg |
| Gross Weight: | 13.5kg |
| Product Dimensions: | 244(H) x 94(W) x 475mm(D) |
| Packaged Dimensions: | 230(H) x 140(W) x 540mm(D) |
