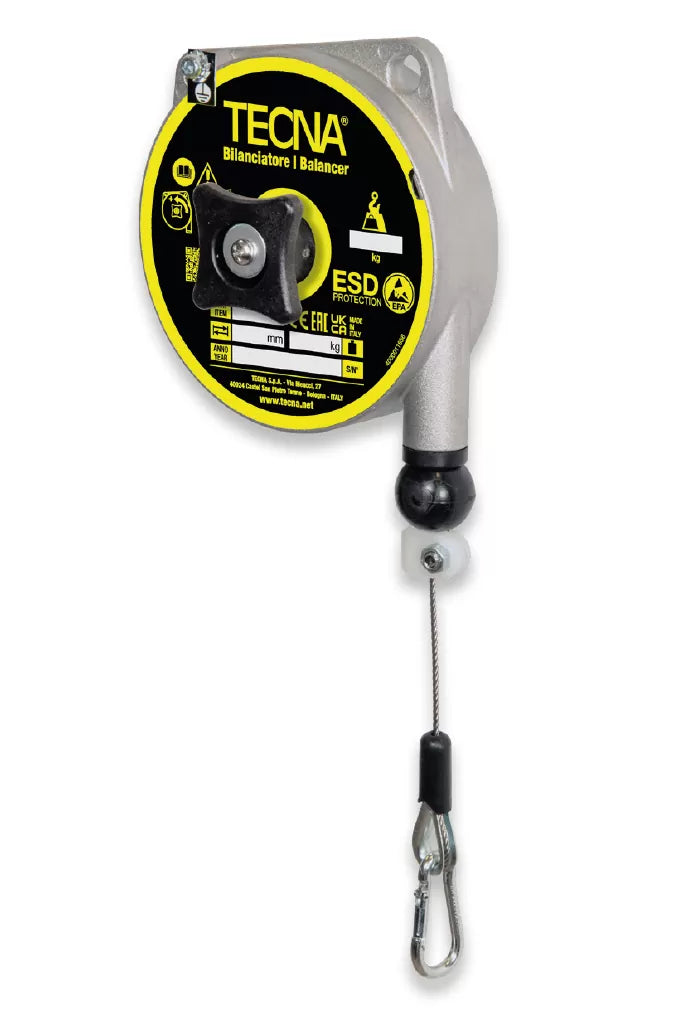

TECNA ESD RETRACTOR
The TECNA ESD 9310ES-9311ES-9312ES-9313ES spring balancer is a mechanical device designed to compensate for the weight of an object, facilitating its movement and reducing the operator's physical effort.
TECNA ESD balancers are specifically developed to operate in ESD (Electrostatic Discharge) protected areas and are the perfect companion for handling PCBs and other sensitive electronic components.
Features
- Certification for ESD-PROTECTED AREAS (EPA)
- Anti-electrostatic materials
- Grounded
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Safety suspension.
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
- Operating temperature between + 5°C to + 60°C.
Technical Data
| ITEM | 9310ES | 9311ES | 9312ES | 9313ES | |
| Capacity | kg | 0.2-0.5 | 0.4-1 | 1-2 | 2-3 |
| Stroke | mm | 1600 | 1600 | 1600 | 1600 |
| Net weight | kg | 0.55 | 0.57 | 0.60 | 0.74 |
| Gross weight | kg | 0.70 | 0.70 | 0.70 | 0.80 |
| Package dimensions | mm | 204 112 62 |
204 112 62 |
204 112 62 |
204 112 62 |
