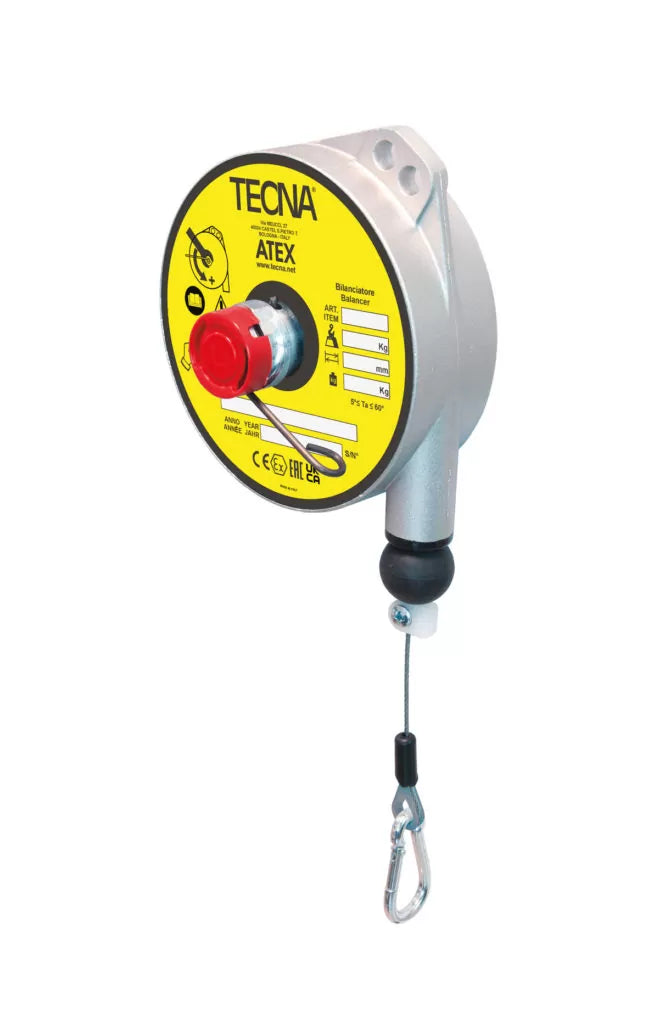

TECNA ATEX BALANCER
TECNA ATEX Balancer, models (9320AX-9321AX-9322AX-9323AX): Designed for use in potentially explosive atmospheres, these spring balancers offer the perfect balance between safety and performance. They have an adjustable load capacity from 0.5 to 14 kg and a cable stroke of up to 2000 mm, ensuring reliable support in the most demanding industrial applications.
Their robust structure, with a die-cast aluminium body and stainless steel cable, ensures resistance and durability, even in harsh environments, providing high protection against wear and external agents. These balancers are the ideal solution to improve productivity and safety in ATEX industrial applications.
Features
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
- Operating temperature between + 5°C to + 60°C.
Technical Data
| ITEM | 9320AX | 9321AX | 9322AX | 9323AX | |
| Capacity | kg | 1-2.5 | 2-4 | 4-6 | 6-8 |
| Stroke | mm | 2000 | 2000 | 2000 | 2000 |
| Net weight | kg | 1.67 | 1.90 | 1.98 | 2.28 |
| Gross weight | kg | 1.8 | 2.1 | 2.1 | 2.5 |
| Package dimensions | mm | 254 149 96 |
254 149 96 |
254 149 96 |
254 149 96 |
