TECNA ESD RETRACTOR

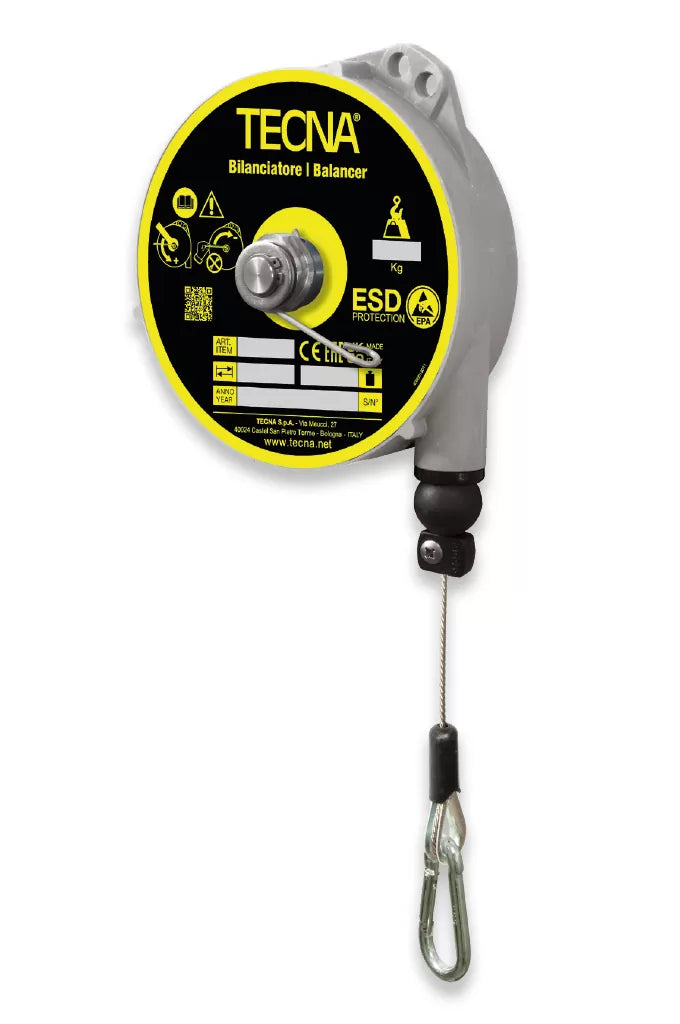

The TECNA ESD 9336LES-9336ES-9337ES-9338ES-9339ES-9340ES spring balancer is a mechanical device designed to compensate for the weight of an object, facilitating its movement and reducing the operator's physical effort.
TECNA ESD balancers are specifically designed to operate in ESD (Electrostatic Discharge) protected areas and are ideal for PCB handling and other sensitive electronic components. Thanks to their advanced design and use of high-quality materials, they ensure reliability, durability, and protection against electrostatic discharges, enhancing operational safety and protecting processed products.
Features
- Certification for ESD-PROTECTED AREAS (EPA)
- Anti-electrostatic materials
- Grounded
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
- Operating temperature between + 5°C to + 60°C.
Technical Data
| ITEM | 9336LES | 9336ES | 9337ES | 9338ES | 9339ES | 9340ES | |
| Capacity | kg | 0.5-2 | 2-4 | 4-6 | 6-8 | 8-10 | 10-14 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 3.14 | 3.14 | 3.30 | 3.36 | 3.43 | 3.58 |
| Gross weight | kg | 3.40 | 3.40 | 3.60 | 3.70 | 3.70 | 3.80 |
| Package dimensions | mm | 304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
