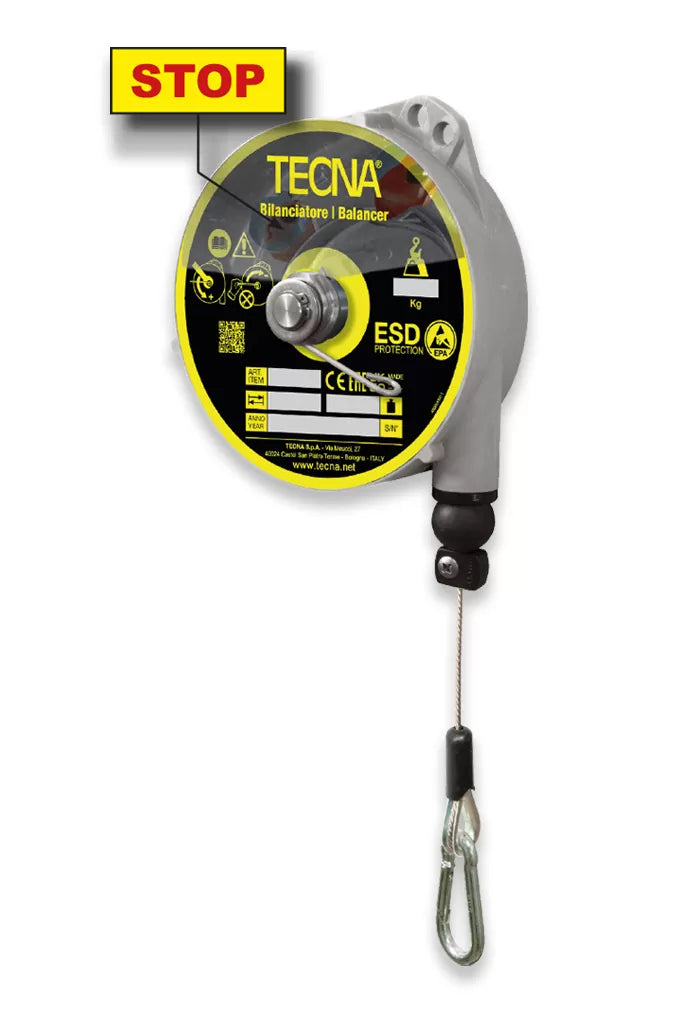

TECNA ESD RETRACTOR
The TECNA ESD 9346LES-9346ES-9347ES-9348ES-9349ES-9350ES spring balancer is a mechanical device designed to compensate for the weight of an object, facilitating its movement and reducing the operator's physical effort.
TECNA ESD balancers are ideal for handling PCBs and other sensitive electronic components in production environments subject to ESD (Electrostatic Discharge) risks, making them an excellent choice for various applications.
Features
- Certification for ESD-PROTECTED AREAS (EPA)
- Anti-electrostatic materials
- Grounded
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
- Operating temperature between + 5°C to + 60°C.
These new balancers are equipped with a new device enabling to stop the stroke by carrying out a simple operation on the load.
Technical data
| ITEM | 9346LES | 9346ES | 9347ES | 9348ES | 9349ES | 9350ES | |
| Capacity | kg | 0.5-2 | 2-4 | 4-6 | 6-8 | 8-10 | 10-14 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 3.14 | 3.14 | 3.32 | 3.38 | 3.48 | 3.62 |
| Gross weight | kg | 3.40 | 3.40 | 3.60 | 3.70 | 3.80 | 3.90 |
| Package dimensions | mm | 304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
