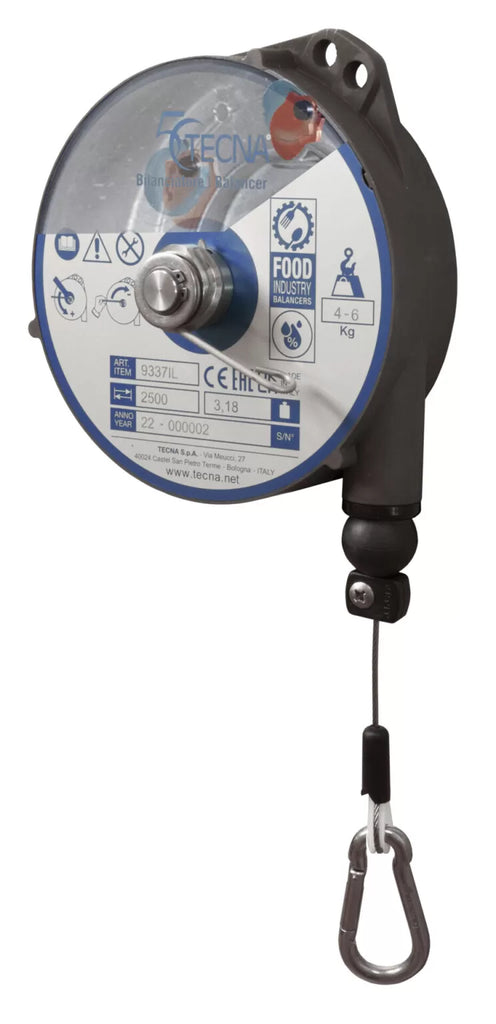

TECNA FOOD INDUSTRY RETRACTORS
The TECNA FOOD INDUSTRY balancer is a retractor designed for different areas, including food & beverage, meat slaughtering and processing, dairy, confectionery and baking, as well as industrial washing and sanitation. Depending on the selected model, the TECNA FOOD INDUSTRY balancer (models 9346LIL-9346IL-9347IL-9348IL-9349IL-9350IL) offers a load capacity from 0.5 to 14 kg with a cable stroke up to 2500 mm.
Features
- Cast aluminium housing with special hard anodization, resistant to oxidation and chemical aggression
- NSF-H1 certified Food Grade grease
- Rust-proof stainless steel materials on all external parts
- Rugged construction, cast aluminium body.
- Stainless steel rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
- Stop Device (Ratchet)
Technical Data
| ITEM | 9346LIL | 9346IL | 9347IL | 9348IL | 9349IL | 9350IL | |
| Capacity | kg | 0.5-2 | 2-4 | 4-6 | 6-8 | 8-10 | 10-14 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 3.14 | 3.14 | 3.32 | 3.38 | 3.48 | 3.62 |
| Gross weight | kg | 3.40 | 3.40 | 3.60 | 3.70 | 3.80 | 3.90 |
| Package dimensions | mm | 304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
