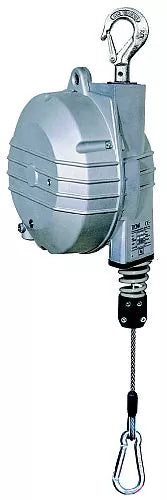

Zero Gravity Balancers 9354/9359 – Capacity 4/25 kg 9354-9355-9356-9357-9358-9359.
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9354 | 9355 | 9356 | 9357 | 9358 | 9359 | |
| Capacity | kg | 4-7 | 7-10 | 10-14 | 14-18 | 18-22 | 22-25 |
| Stroke | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Net weight | kg | 4.94 | 5.30 | 5.67 | 6.26 | 5.89 | 6.53 |
| Gross weight | kg | 6.0 | 6.4 | 6.8 | 7.4 | 7.0 | 7.6 |
| Package dimensions | mm | 525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
