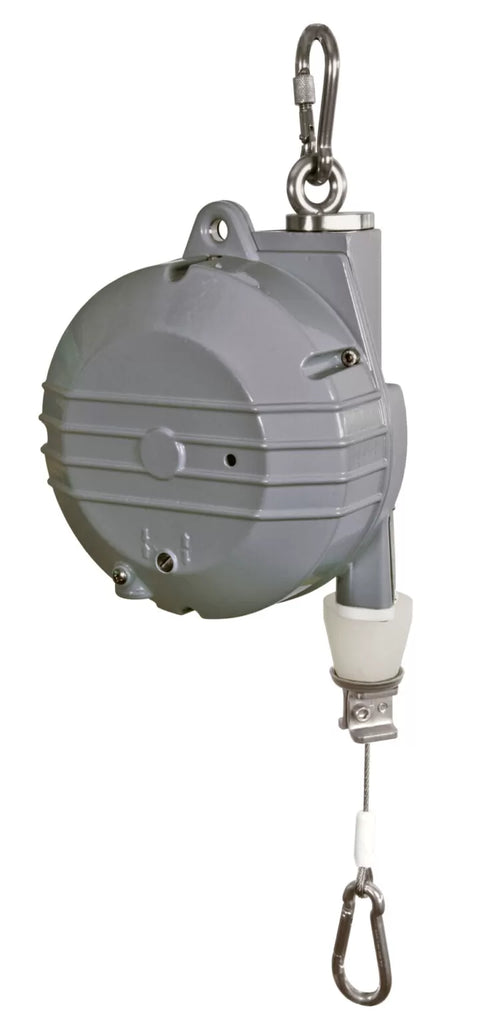

FOOD INDUSTRY LINE - TECNA ZERO GRAVITY RETRACTORS
The TECNA FOOD INDUSTRY ZERO GRAVITY balancer is designed for various sectors, including food & beverage, meat slaughtering and processing, dairy, confectionery and baking, as well as industrial washing and sanitation. Depending on the chosen model, the TECNA FOOD INDUSTRY ZERO GRAVITY balancer (models 9354RL-9355RL-9356RL-9357RL-9358RL-9359RL) offers a load capacity from 4 to 25 kg with a cable stroke up to 2000 mm.
Features
- Cast aluminium housing with special high-strength Rilsan ® treatment against oxidation and chemical aggression from soaps and detergents
- Smoother surface facilitates cleaning and sanitization
- Food grade rope guide, shock absorber and wire cap
- Rustproof and Stainless Steel exterior materials
- Rustproof and Stainless Steel interior materials
- NSF-H1 certified food grade grease
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9354RL | 9355RL | 9356RL | 9357RL | 9358RL | 9359RL | |
| Capacity | kg | 4-7 | 7-10 | 10-14 | 14-18 | 18-22 | 22-25 |
| Stroke | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Net weight | kg | 4.94 | 5.30 | 5.67 | 6.26 | 5.89 | 6.53 |
| Gross weight | kg | 6.0 | 6.4 | 6.8 | 7.4 | 7.0 | 7.6 |
| Package dimensions | mm | 525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
525 206 175 |
Datasheet
