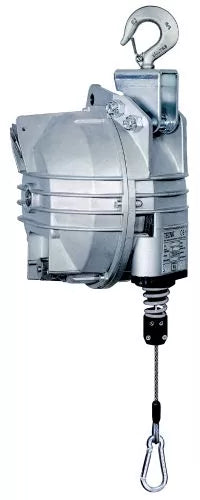

Zero Gravity Balancers 9411/9414 – Capacity 60/100 kg 9411-9412-9413-9414.
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device.
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Lining up upper hook.
- Visible cable for inspection.
- Inert spring drum assembly.
Technical Data
| ITEM | 9411 | 9412 | 9413 | 9414 | |
| Capacity | kg | 60-70 | 70-80 | 80-90 | 90-100 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 25.56 | 26.75 | 27.90 | 28.46 |
| Gross weight | kg | 28.50 | 29.70 | 30.80 | 31.40 |
| Package dimensions | mm | 670 295 286 |
670 295 286 |
670 295 286 |
670 295 286 |
