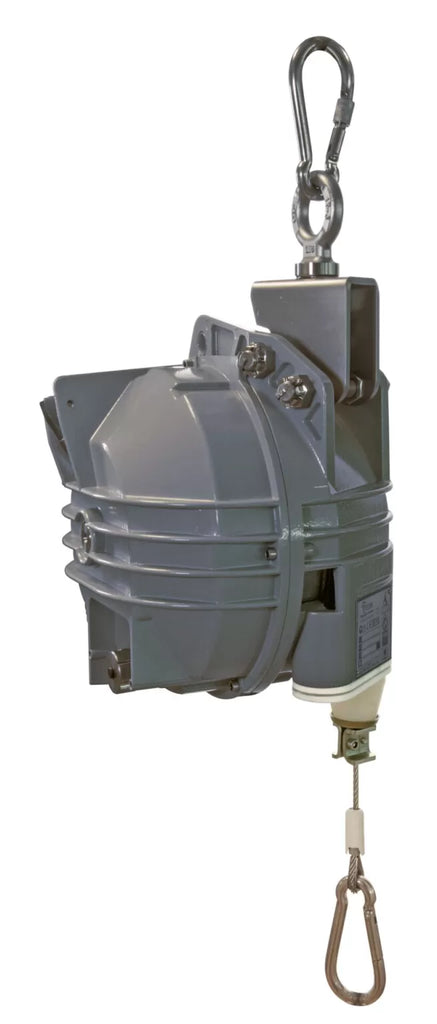

Tecna 9411RL/9456RL Food Industry Zero Gravity Balancers, Capacity 35/180 kg

The TECNA FOOD INDUSTRY ZERO GRAVITY balancer is designed for a wide range of sectors, including food & beverage, meat slaughtering and processing, dairy, confectionery and baking, as well as industrial washing and sanitation. Depending on the chosen model, the TECNA FOOD INDUSTRY ZERO GRAVITY balancer offers a wide range of load capacities and cable stroke:- Series 9411RL-9412RL-9413RL-9414RL: load capacity from 60 to 100 kg with a cable stroke up to 2500 mm;
- Series 9434RL-9435RL-9436RL-9441RL-9442RL-9443RL-9444RL: load capacity from 35 to 100 kg with a cable stroke up to 3000 mm;
- Series 9451RL-9452RL-9453RL-9454RL-9455RL-9456RL: load capacity from 100 to 180 kg with a cable stroke up to 3000 mm.

Features

• Cast aluminium housing with special high-strength Rilsan ® treatment against oxidation and chemical aggression from soaps and detergents
• Smoother surface facilitates cleaning and sanitization
• Food grade rope guide, shock absorber and wire cap
• Rustproof and Stainless Steel exterior materials
• Rustproof and Stainless Steel interior materials
• NSF-H1 certified food grade grease
• Rubbered protection.
• Ribbed and sealed monobloc construction in aluminium alloy.
• Stainless steel rope.
• Adjustable capacity by means of a worm screw.
• Auxiliary safety suspension.
• Safety device against load dropping due to the spring breakage (>3kg).
• Centrifugal safety device.
• Upper rotary suspension with safety hook.
• Locking device to block the load at any height.
• Adjustable stroke limiting device.
• Taper drum rotating on ball bearings.
• Cable guide in antifriction material.
• Lining up upper hook.
• Visible cable for inspection.
• Inert spring drum assembly.

Technical Data

Datasheet
